MikroElektronika Signal Relay Click Relay Click for GV5-1 for Heaters, Alarm Units, Lamps, Home Automation MIKROE-2154

Free Delivery in India | Lowest Global Shipping Charges

MikroElektronika Signal Relay Click Relay Click for GV5-1 for Heaters, Alarm Units, Lamps, Home Automation MIKROE-2154

Name: MikroElektronika Signal Relay Click Relay Click for GV5-1 for Heaters, Alarm Units, Lamps, Home Automation MIKROE-2154
Brand: MikroElektronika
SKU: 204655
Price: 53.9 USD
Availability: InStock



Category Signal Relay Brand MikroElektronika Condition New

Specifications

Country of Origin	India
Brand	MikroElektronika
Model	MIKROE-2154
For Use With	Heaters, Alarm Units, Lamps, Home Automation Devices
Kit Classification	Relay Click Board
Featured Device	GV5-1
Kit Name	Signal Relay Click
mikroBUS signal interface pins	AN, RST, CS and PWM

Key Features

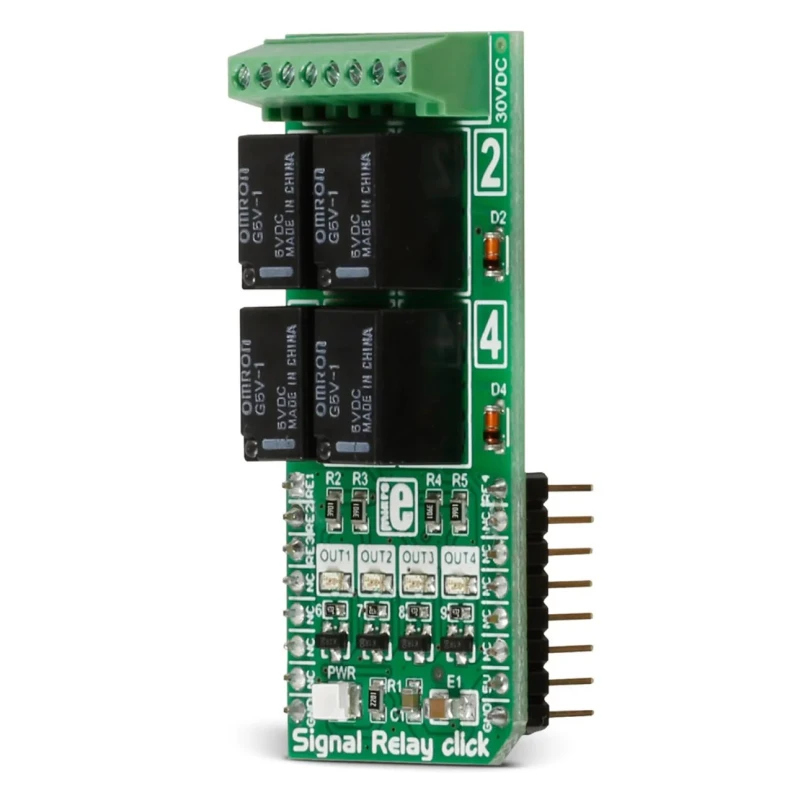

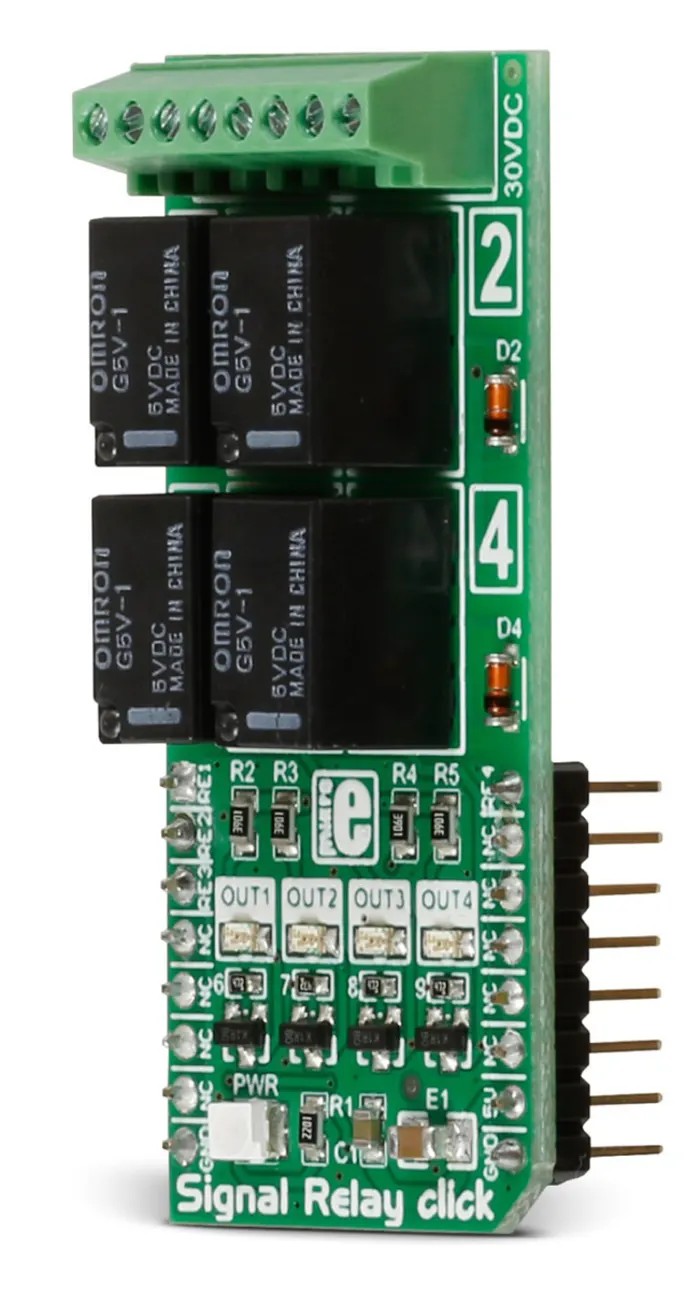

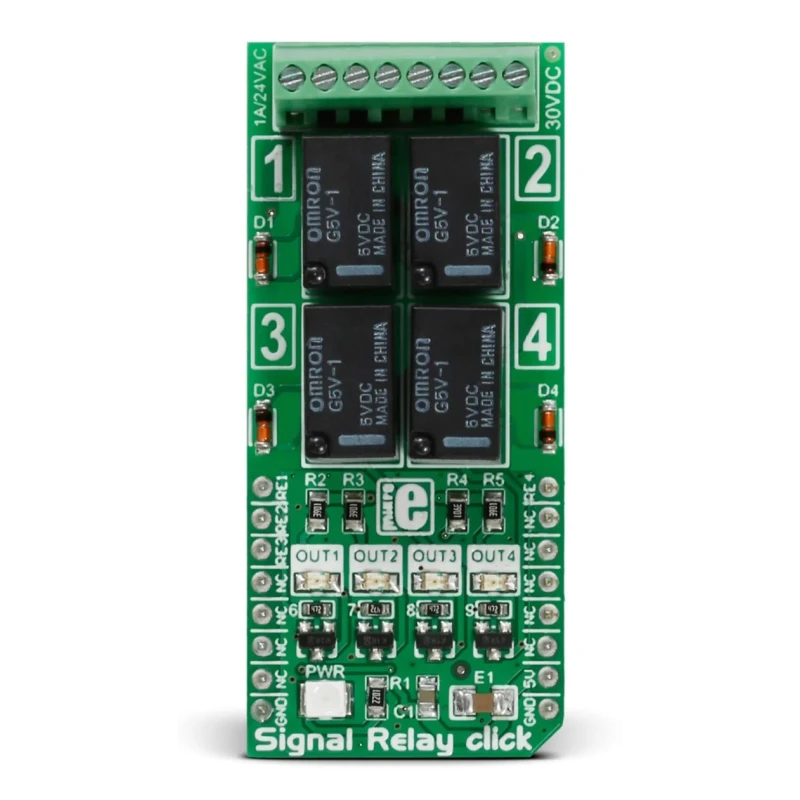

The board includes four highly sensitive SPDT Omron G5V-1 relays.
Maximum switching voltage is 125 V AC (0.5 A) and 30 V DC (1 A).
Each relay coil operates at 5 V DC with LED status indicators.

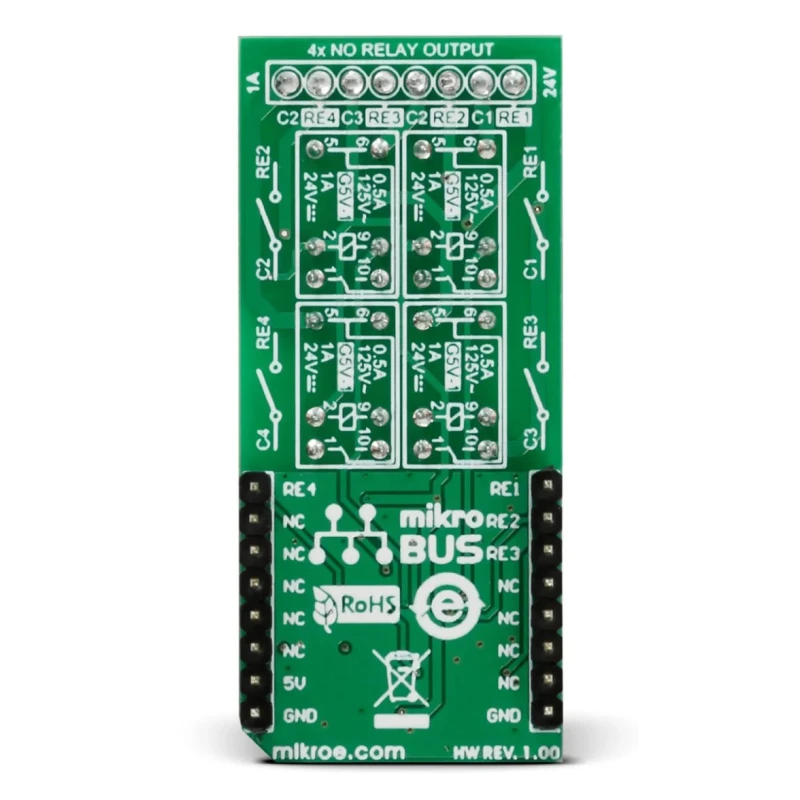

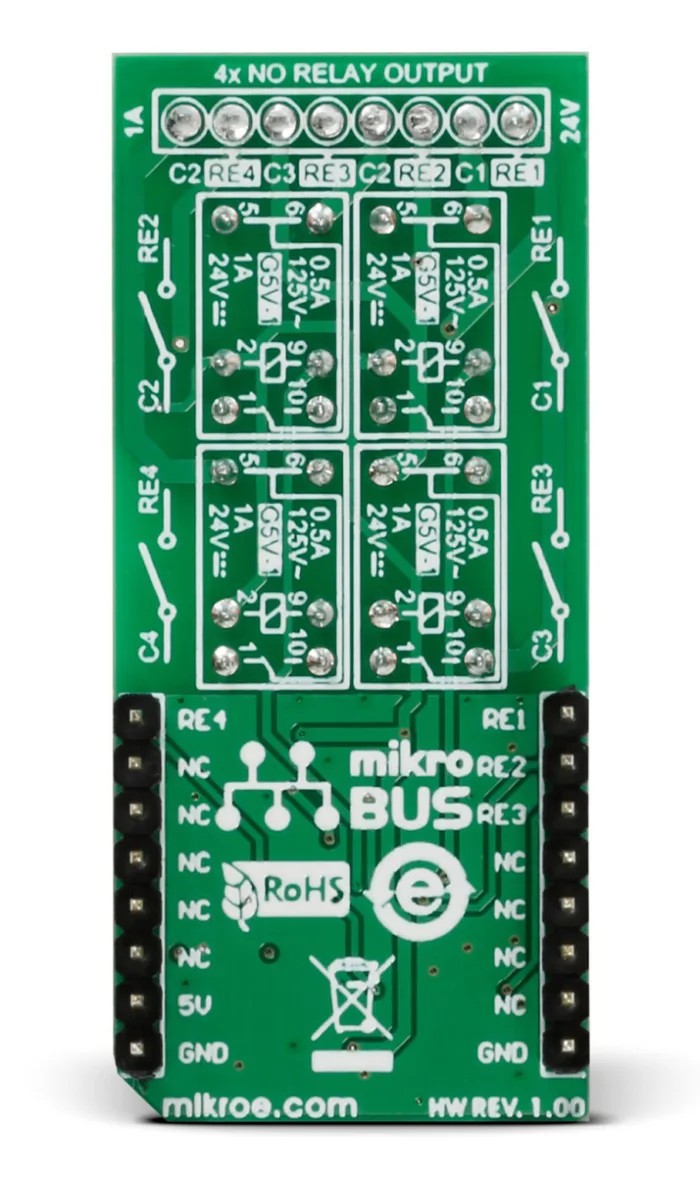

mikroBUS signal interface pins include AN, RST, CS, and PWM for control.
Compact size of 57.15 x 25.4 mm allows easy integration.
Compatible with heaters, alarms, lamps, and home automation devices.
Designed for embedded development platforms using mikroBUS standard.

Product Description

MikroElektronika MIKROE-2154 Signal Relay Click is a specialized mikroBUS add-on board designed for precise ON/OFF signal relay control using four ultra-miniature Omron G5V-1 relays. It is optimized for applications including heaters, alarm units, lamps, and home automation devices.

The relays offer maximum switching voltages of 125 V AC with 0.5 A max current and 30 V DC with 1 A max current capacity. Each relay operates at 5 V DC coil voltage and includes an LED indicator for easy visual monitoring of relay status.

This Relay Click Board integrates mikroBUS™ signal interface pins such as AN, RST, CS, and PWM providing versatile digital control signals, along with a 5 V power supply through the mikroBUS socket. Its compact form factor measuring 57.15 x 25.4 mm allows seamless incorporation into various embedded development environments.

The Signal Relay Click is part of MikroElektronika's extensive Click™ family of modular add-on boards that enhance flexibility and functionality for development platforms like Raspberry Pi, Arduino, BeagleBone, and others, supporting rapid prototyping and advanced control systems.

The board includes four ultra-miniature Omron G5V-1 relays with maximum switching voltages of 125 V AC (0.5 A) and 30 V DC (1 A). Each relay coil voltage is 5 V DC with individual LED indicators for monitoring operations.

mikroBUS signal interface pins AN, RST, CS, and PWM allow precise digital control signal integration. The compact dimensions (57.15 x 25.4 mm) ensure easy integration into embedded and robotic applications. Compatible with heaters, alarm systems, lamps, and home automation for versatile industrial and consumer applications.

Use the MikroElektronika Signal Relay Click board to efficiently add relay control to your projects, ideal for industrial, HVAC, laboratory, manufacturing, and home automation use cases. Explore all MikroElektronika relay boards and development tools available at EnvMart for advanced power and control management solutions.
