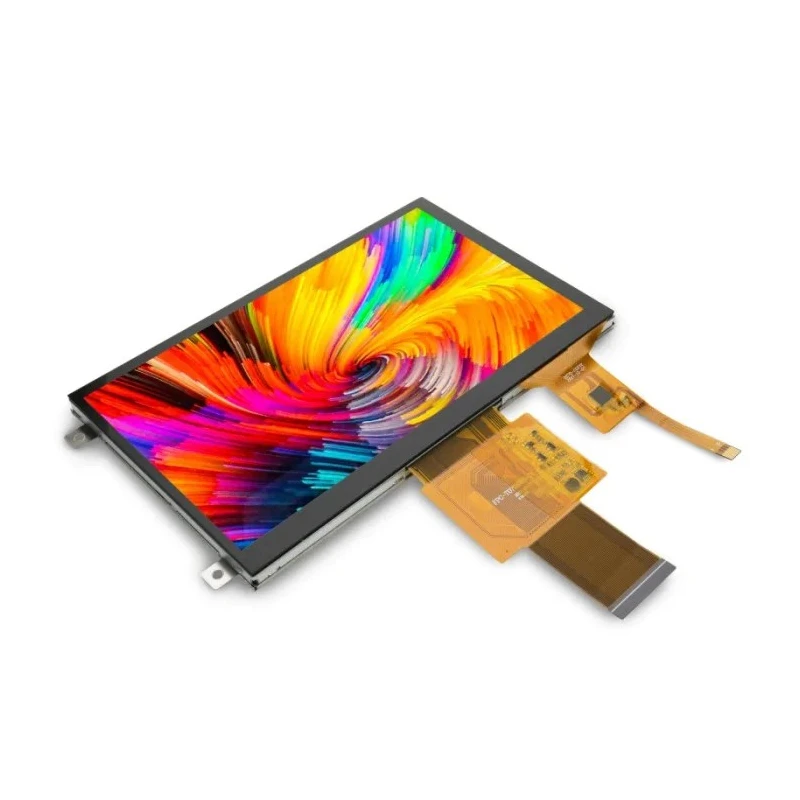

MikroElektronika 7 in 800 x 480 Pixel TFT LCD Display Touch Screen Capacitive, RGB 24Bit Interface MIKROE-4278

MikroElektronika MIKROE-4278 is a high-quality 7 inch TFT LCD Display Touch Screen featuring an 800 x 480 pixel resolution and capacitive touch technology. It supports a 24-bit RGB true color format capable of displaying up to 16.7 million colors, making it ideal for detailed and vivid visual applications.

This display module integrates a TFT-LCD panel, driver IC, flexible printed circuit (FPC), and a backlight unit using 3x9 LEDs to provide bright and uniform illumination with a brightness of 420 cd/m². The device features an excellent contrast ratio between 300 and 500, enhancing image clarity even in variable lighting conditions.

The metal frame at the back adds structural integrity and facilitates mounting in rugged industrial environments. The display operates reliably within temperatures ranging from -20°C to 70°C and accepts supply voltages within a -0.3V to 3.6V range, with typical operation at 3.3V supply voltage. This makes it suitable for a wide range of industrial automation and home/building automation systems.

Its capacitive touch screen interface offers responsive and accurate input detection, making it suitable for human-machine interface applications. The RGB 24Bit interface ensures smooth communication with host controllers, while the viewing area dimensions of 154.08 x 85.92 mm provide ample workspace for user interface designs.

High resolution 800 x 480 pixels provides precise and vivid visuals. Capacitive touch screen for accurate and responsive input. RGB 24Bit interface supports true color palette of 16.7 million colors. Backlight unit with 3x9 LEDs ensures bright and uniform illumination.

Wide operating temperature range from -20°C to 70°C for industrial environments. Excellent contrast ratio between 300 and 500 for superior display clarity. Robust metal frame back for durability and secure mounting. Operates with supply voltage between -0.3V to 3.6V, nominally 3.3V.

Suitable for industrial HMI, home automation, and building automation systems. Explore the full range of LCD Colour Displays at EnvMart for high-quality industrial and commercial electronic components.
