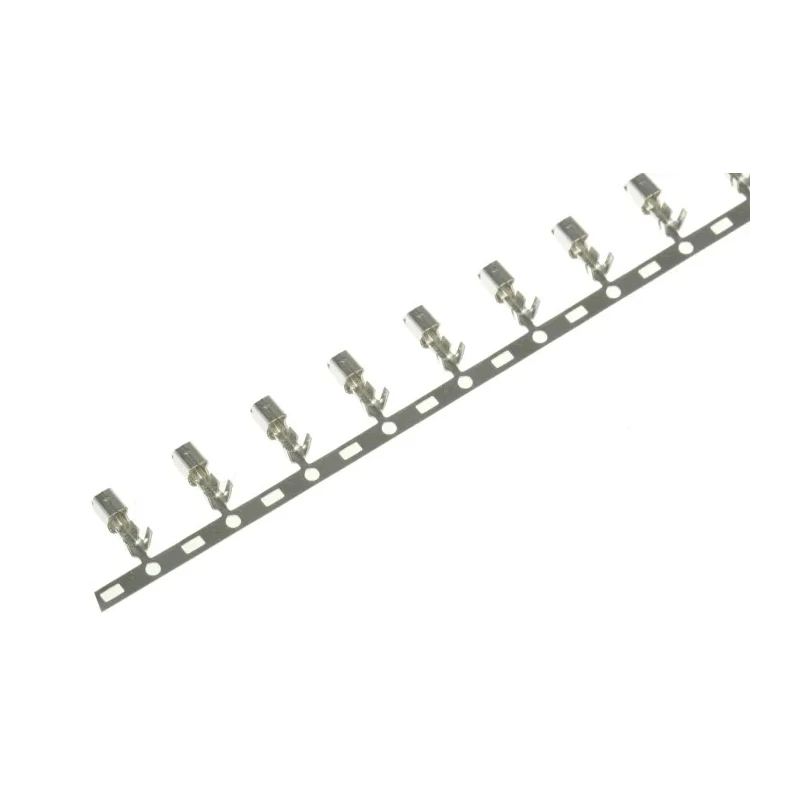

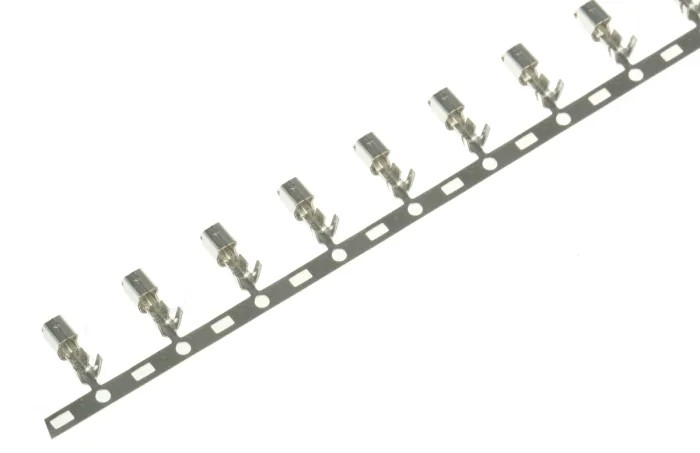

TE Connectivity Economy Power Series Female Crimp Terminal, 22 AWG Min Crimp, 18 AWG Max 1123721-1
Specifications
| Country of Origin | India |
|---|---|
| Brand | TE Connectivity |
| Length | 10.6mm |
| Gender | Female |
| Contact Material | Phosphor Bronze |
| Series | Economy Power |
| Termination Type | Crimp |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -25°C |
| For Use With | Economy Power Connector Housing |
| Contact Plating | Tin |
| Minimum Wire Size mm² | 0.3mm² |
| Maximum Wire Size mm² | 0.9mm² |
| Minimum Wire Size AWG | 22AWG |
| Maximum Wire Size AWG | 18AWG |
| Maximum Contact Resistance | 20mΩ |
Key Features
- Constructed from phosphor bronze with pre-tin plated mating area.
- Compatible with Economy Power Connector Housing for power circuit applications.
- Suitable for wire sizes ranging from 0.3 mm² (22 AWG) to 0.9 mm² (18 AWG).
- Termination type is crimp, ensuring durable and secure connections.
- Maximum operating temperature rated at 105°C with a minimum of -25°C.
- Contact resistance does not exceed 20 mΩ ensuring efficient electrical performance.
- Contact plating of tin provides corrosion resistance and reliable solderability.
- Designed for industrial and electronic power applications requiring high current carrying capacity.
Product Description
TE Connectivity 1123721-1 Economy Power Series female crimp terminal is manufactured from phosphor bronze, featuring a pre-tin plated mating area that enhances durability and conductivity. This crimp contact is engineered to accommodate wire sizes from 22 AWG up to 18 AWG (0.3 mm² to 0.9 mm²), making it suitable for a variety of power wiring applications.
The terminal is designed for use with Economy Power Connector Housing, which suits power circuit scenarios requiring a 3.96 mm centerline and current carrying capacities up to 7.5 amps at 250VAC. Its crimp termination type ensures secure wire retention and reliable electrical contact.
Operating temperature ranges from -25°C to a maximum of 105°C, allowing usage in diverse industrial environments. The contact resistance is limited to 20 milliohms, ensuring minimal energy loss and solid performance.
At 10.6 mm length, this female crimp terminal fits precise mechanical specifications for effective PCB and wire housing assembly. Tin plating on the contacts protects against corrosion and promotes solderability.
Commonly used in electronic component manufacturing, power distribution assemblies, and industrial machinery, this TE Connectivity product offers consistent electrical connectivity and durability.
Constructed from phosphor bronze with tin plating. Compatible with Economy Power Connector Housing. Wire range 22 AWG (0.3 mm²) to 18 AWG (0.9 mm²). Crimp termination provides reliable wire retention. Temperature rating from -25°C to 105°C.
Maximum contact resistance 20 mΩ. Length: 10.6 mm. Suitable for industrial and electronic power applications. No specific certifications. Explore more products from TE Connectivity in the Crimp Terminal category at EnvMart for all your electronic component needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model accommodates wire sizes ranging from 22 AWG (0.3 mm²) to 18 AWG (0.9 mm²).
The maximum operating temperature is rated at 105°C, with a minimum operating temperature of -25°C.
The contact resistance does not exceed 20 milliohms, ensuring efficient electrical performance.
It is constructed from phosphor bronze with a tin plating for corrosion resistance and reliable solderability.
This terminal is compatible with Economy Power Connector Housing for power circuit applications.
The length of this terminal is 10.6 mm, fitting precise mechanical specifications for assembly.
It features a crimp termination type, ensuring secure wire retention and reliable electrical contact.
This terminal is commonly used in electronic component manufacturing, power distribution assemblies, and industrial machinery.
It is designed for current carrying capacities up to 7.5 amps at 250VAC.
The tin plating on the contacts provides corrosion resistance and promotes solderability, enhancing durability.
The country of origin for this terminal is India.
This terminal is part of the Economy Power Series from TE Connectivity.
