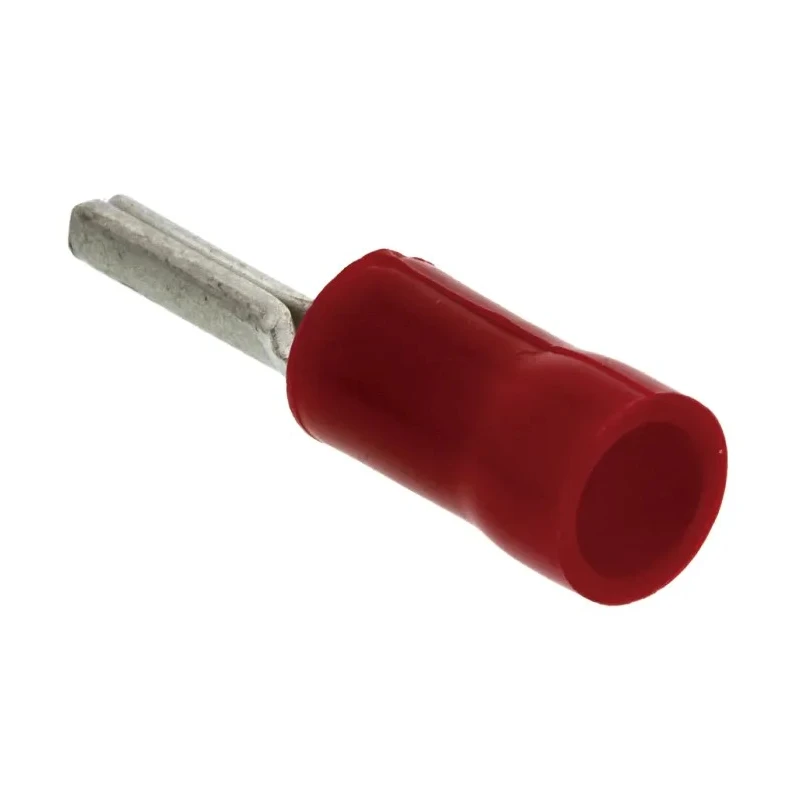

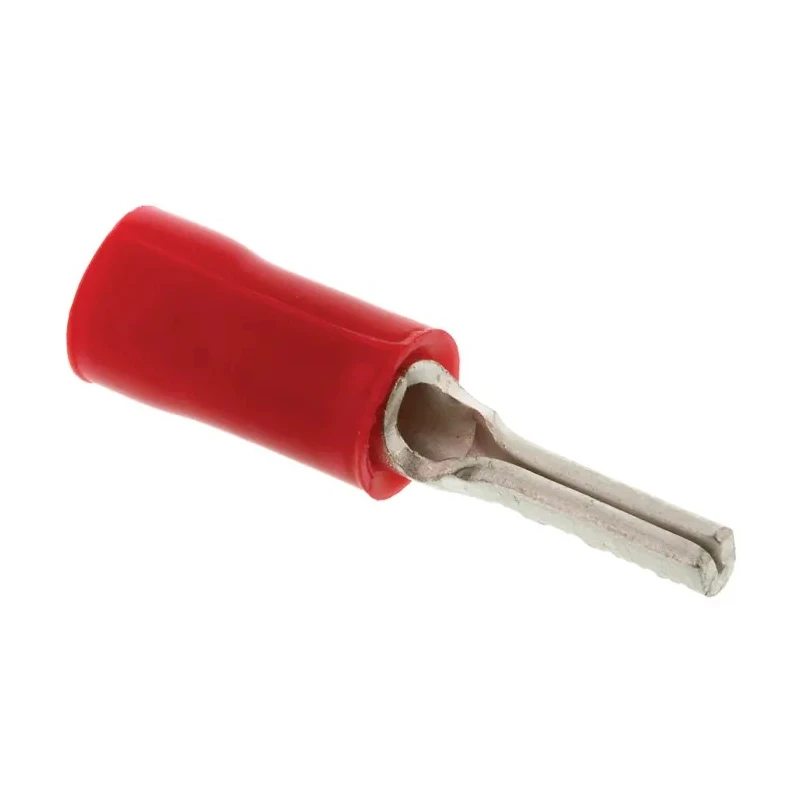

TE Connectivity PLASTI-GRIP Insulated Tin Crimp Pin Connector, 22 - 16 AWG, Nylon, 1.8 mm Pin Diameter, 6.8 mm Pin 165143
Specifications
| Country of Origin | India |
|---|---|
| Brand | TE Connectivity |
| Colour | Red |
| Model | 165143 |
| Insulation | Insulated |
| Overall Length | 20.5mm |
| Contact Material | Copper |
| Series | PLASTI-GRIP |
| Termination Type | Crimp |
| Insulation Material | Nylon |
| Pin Diameter | 1.8mm |
| Contact Plating | Tin |
| Minimum Wire Size mm² | 0.25mm² |
| Maximum Wire Size mm² | 1.6mm² |
| Minimum Wire Size AWG | 22AWG |
| Maximum Wire Size AWG | 16AWG |
| Pin Length | 6.8mm |
Key Features
- Suitable for wire sizes 22 AWG to 16 AWG, ensuring versatile compatibility.
- Features nylon insulation for enhanced electrical safety and durability.
- Uses tin-plated copper contact for excellent conductivity and corrosion resistance.
- Includes a 1.8 mm diameter pin and 6.8 mm pin length for reliable electrical contact.
- Employs a crimp termination type for dependable mechanical retention.
- Colour coded red for easy identification and installation in complex wiring systems.
- Inner barrel serrated to maximize electrical contact and tensile strength after crimping.
- Meets requirements for industrial, laboratory, and commercial electrical installations.
Product Description
TE Connectivity 165143 Plasti-Grip Insulated Tin Crimp Pin Connector delivers reliable performance for demanding wire termination tasks across industrial, electrical, and laboratory settings. This connector accommodates wire sizes from 22 AWG to 16 AWG (0.25 mm² to 1.6 mm²), addressing a wide range of application needs.
The high-quality nylon insulation with 94V-0 dielectric strength ensures robust protection against electrical faults, supporting enhanced safety during installation and operation. The tin-plated copper contact material offers superior conductivity and resistance to corrosion, making this connector ideal for critical circuits and power distribution networks.
The connector's inner barrel is serrated, providing maximum electrical contact and superior tensile strength after crimping, ensuring long-lasting and secure connections. The funnelled entry on the wire barrel simplifies the wire insertion process, facilitating quick and efficient assembly.
Compatible with 22 - 16 AWG wires for versatile electrical wiring solutions. Nylon insulation safeguards against electrical and environmental hazards. Red colour coding allows for easy identification among other terminal types.
1.8 mm pin diameter and 6.8 mm pin length conform to standard specifications. Tin-plated finish improves corrosion resistance and longevity. Efficient crimp termination method for robust mechanical retention. Serrated barrel creates optimal contact and tensile strength post-crimp.
The TE Connectivity Plasti-Grip series is widely used in industrial automation panels, power supplies, laboratory setups, commercial control systems, and wiring harness manufacturing. This connector helps streamline maintenance, improves cable management, and maintains precise electrical connections.
Not for use with double wire arrangements. Package includes one Plasti-Grip insulated tin crimp pin connector, 165143 model.
Discover more Wire Terminal and crimping solutions in the Electronics Components category at EnvMart, featuring TE Connectivity and other leading brands for your professional electrical needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model accommodates wire sizes from 22 AWG to 16 AWG, which corresponds to 0.25 mm² to 1.6 mm².
The connector features a nylon insulation for safety and a tin-plated copper contact for excellent conductivity and corrosion resistance.
It has a pin diameter of 1.8 mm and a pin length of 6.8 mm.
This model employs a crimp termination type, ensuring dependable mechanical retention.
The overall length of the connector is 20.5 mm.
The inner barrel is serrated to maximize electrical contact and tensile strength after crimping, ensuring secure connections.
Yes, the connector is color coded red for easy identification and installation in complex wiring systems.
It is widely used in industrial automation panels, power supplies, laboratory setups, commercial control systems, and wiring harness manufacturing.
The nylon insulation has a dielectric strength of 94V-0, providing robust protection against electrical faults.
The country of origin for this connector is India.
This connector is not suitable for use with double wire arrangements.
The funnelled entry simplifies the wire insertion process, facilitating quick and efficient assembly.
