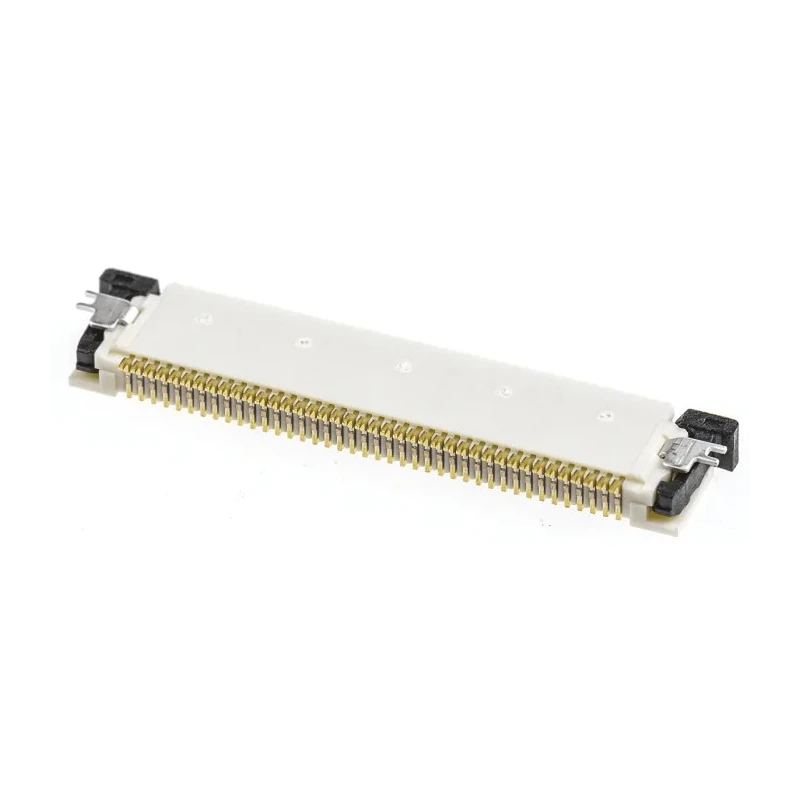

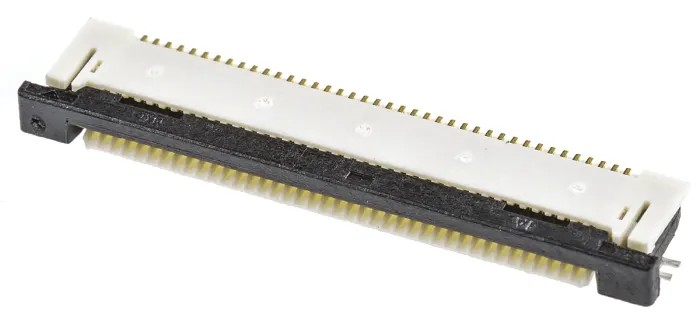

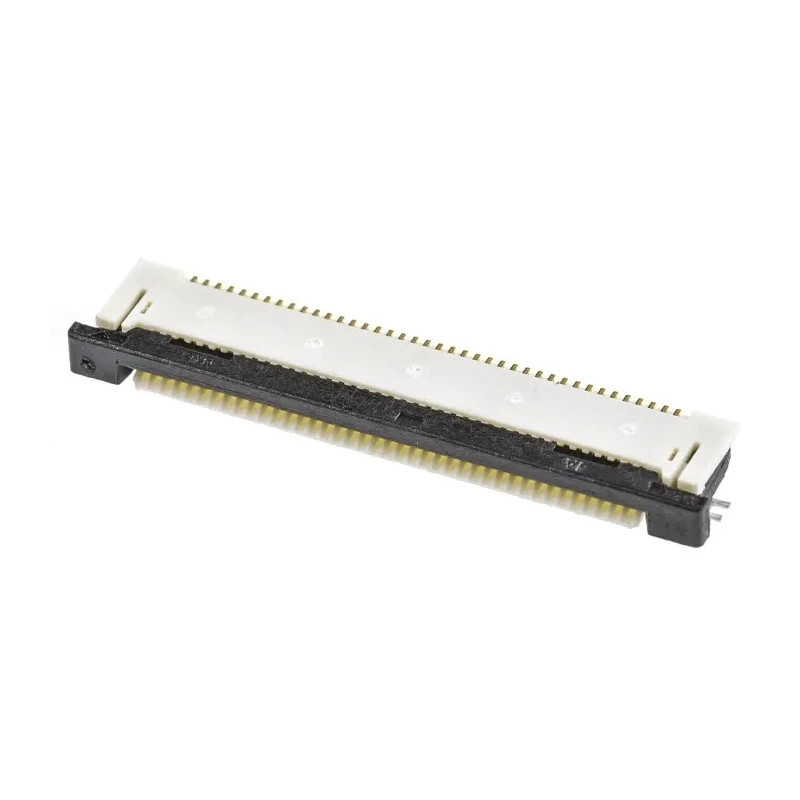

Molex 0.5 mm Pitch 40 Way Right Angle Female Easy-On FPC Connector Solder 54132-4062

Molex 54132-4062 is a 0.5 mm pitch 40 way right angle female FPC connector featuring an Easy-On design with solder termination suitable for surface mount technology (SMT). This connector incorporates a zero insertion force (ZIF) slide type actuator that facilitates easy insertion while providing a secure and reliable connection between the flat flexible cable (FFC) and PCB.

The contacts are constructed from phosphor bronze and plated with gold over nickel, ensuring excellent electrical conductivity and corrosion resistance. The nylon housing material adds mechanical robustness and durability, with a locking mechanism that enhances secure mounting on the PCB and prevents accidental disconnection.

This connector supports a current rating of 500mA and a voltage rating of 50V, with reliable operation at temperatures ranging from -20°C to +85°C. Its right angle, bottom contact position and single row configuration make it ideal for applications requiring space-efficient PCB layouts.

Designed primarily for use in automotive navigation, digital cameras, medical devices, communication equipment, and consumer electronics, the Molex 54132 series connectors provide compact and high-density interconnection solutions for complex wiring harnesses. The solder tabs located at the base also give added strain relief and secure PCB retention.

Zero Insertion Force design minimizes wear during repeated cycles. Slide type actuator ensures easy insertion and secure cable connection. Phosphor bronze contacts provide excellent electrical properties. Gold over nickel plating delivers corrosion resistance and durability.

Nylon housing adds mechanical strength and thermal resistance. Operates at 50V and 500mA withstand current levels. Ideal for automotive, consumer, medical, and communication applications requiring high density FPC connectivity.

Connector orientation and contact position designed to save PCB space and maintain secure contacts.

This product is made in Malaysia and is part of Molex's 54132 series, known for quality and reliability. It is suitable for numerous industrial and electronic applications requiring a dependable and compact FPC connector.
