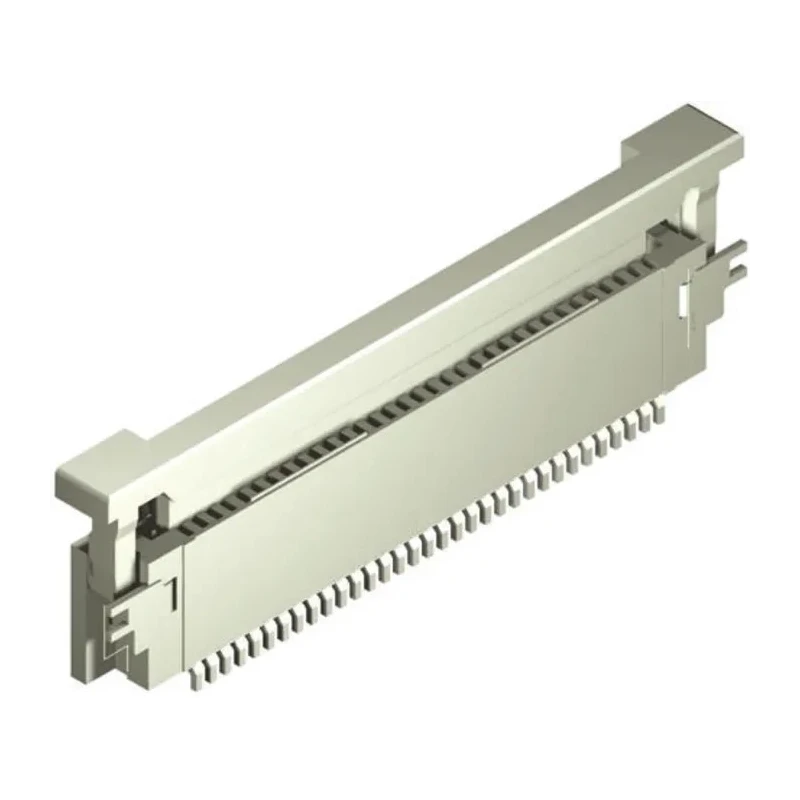

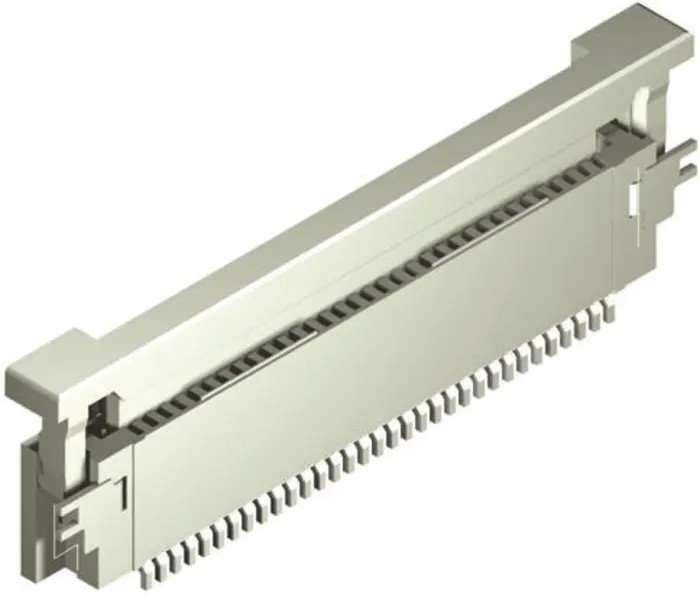

Molex 0.5 mm Pitch 33 Way Right Angle Female FPC Connector, Solder 54132-3362
Specifications
| Country of Origin | Malaysia |
|---|---|
| Voltage | 50V |
| Brand | Molex |
| Orientation | Right Angle |
| Current | 500mA |
| Mount Type | Surface |
| Housing Material | Nylon |
| Contact Material | Phosphor Bronze |
| Series | 54132 |
| Termination Type | Solder |
| Maximum Operating Temperature | 85°C |
| Sub Type | Easy-On FFC/FPC Connector |
| Minimum Operating Temperature | -20°C |
| Number of Rows | 1 |
| Pitch | 0.5mm |
| Contact Plating | Gold over Nickel |
| Number of Contacts | 33 |
| Contact Gender | Female |
| Connector Gender | Female |
| Contact Position | Bottom |
Key Features
- Features 33 contacts with phosphor bronze contact material for electrical reliability.
- Surface mount type suitable for printed circuit boards.
- Incorporates a slide type actuator and locking mechanism for secure cable connection.
- Contact plating is gold over nickel to enhance conductivity and corrosion resistance.
- Rated for 500mA current and 50V voltage for low power applications.
- Compact 0.5 mm pitch enables space-saving PCB design.
- Operating temperature range from -20°C to 85°C suits various environmental conditions.
- Housing constructed from durable nylon material for mechanical integrity.
Product Description
Molex 54132-3362 is a 0.5 mm pitch 33 way right angle female FPC (Flexible Printed Circuit) connector with solder termination, designed for surface mount applications. This connector is part of the Molex 54132 series, featuring a space-saving design ideal for tight packaging requirements in electronic assemblies.
The connector employs phosphor bronze contacts with gold plating over nickel, ensuring excellent electrical conductivity and corrosion resistance. The slide type actuator mechanism provides zero insertion force (ZIF) to facilitate secure and repeatable cable connections, making it suitable for applications requiring frequent cycling.
Operating within a voltage rating of 50V and a current rating of 500mA, this connector supports signal and data transmission in low power devices. The connector's right angle orientation and bottom contact position aid in optimized PCB layout and mechanical stability.
The nylon housing withstands operating temperatures ranging from -20°C to 85°C, making it suitable for a variety of industrial, consumer electronics, automotive, medical, and mobile device applications, including automotive navigation systems, digital cameras, tablets, smartphones, and GPS units.
This product’s design includes solder tabs on the base for secure PCB retention and strain relief, enhancing the mechanical robustness of mounted assemblies. The single row, 33 contact configuration supports high-density connection needs.
33 contacts with phosphor bronze construction provide reliable electrical connections. Gold over nickel plating ensures durability and low contact resistance. Slide type actuator for zero insertion force connection. Right angle orientation supports space-saving PCB layouts.
Temperature rating from -20°C to +85°C suits diverse environments. Nylon housing improves mechanical strength and insulation. Includes solder tabs for strain relief and secure PCB mounting.
This connector is commonly used in automotive, consumer electronics, telecommunications, medical equipment, and industrial electronic assemblies. It facilitates compact and reliable interconnections between flexible printed circuits and rigid PCBs.
Explore more electronic components and connectors on EnvMart for your design and manufacturing needs.
Explore more products in our FPC Connector category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model is rated for a current of 500mA and a voltage of 50V, making it suitable for low power applications.
It features a surface mount type, designed for easy integration onto printed circuit boards.
The connector has a compact pitch size of 0.5 mm, which is beneficial for space-saving PCB designs.
The housing is made from durable nylon, while the contacts are constructed from phosphor bronze with gold over nickel plating for enhanced conductivity and corrosion resistance.
It operates effectively within a temperature range of -20°C to 85°C, suitable for various environmental conditions.
This model features 33 contacts, designed to support high-density connection needs in electronic assemblies.
The connector is designed with a right angle orientation, which aids in optimizing PCB layout and mechanical stability.
It uses a solder termination type, providing secure connections for flexible printed circuits.
Yes, it incorporates a slide type actuator with a locking mechanism to ensure secure cable connections.
This connector is commonly used in automotive, consumer electronics, telecommunications, medical equipment, and industrial electronic assemblies.
The contact position is at the bottom, which supports its right angle orientation and enhances PCB stability.
Yes, it includes solder tabs on the base for secure PCB retention and strain relief, enhancing the mechanical robustness of mounted assemblies.
