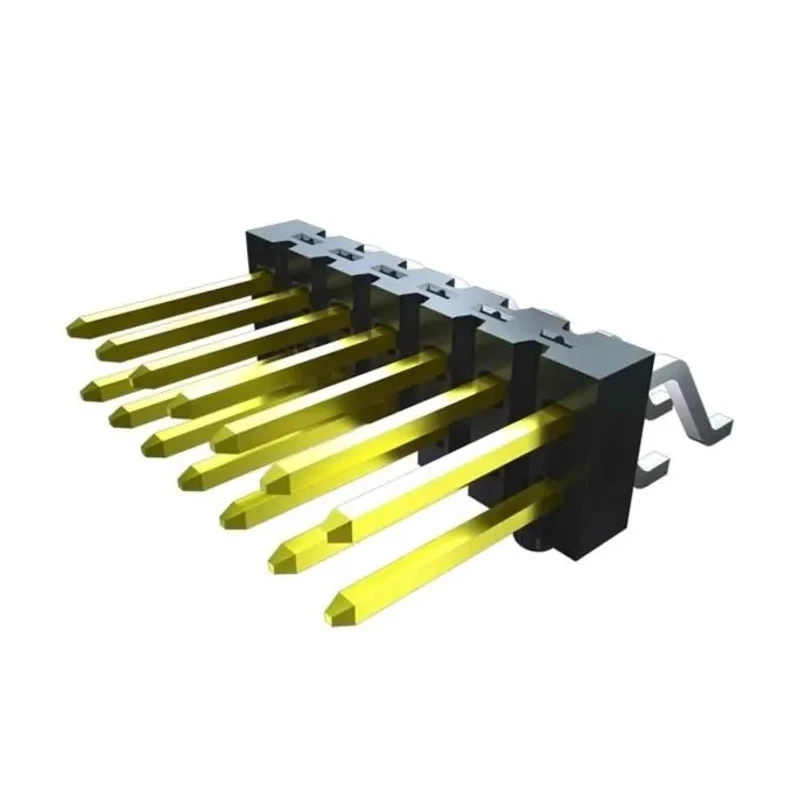

Samtec Vertical Surface Pin Header 16 Contacts 0.64 mm Pitch 2 Row Unshrouded TSM-108-01-F-DV-P-TR

Free Delivery in India | Lowest Global Shipping Charges

Samtec Vertical Surface Pin Header 16 Contacts 0.64 mm Pitch 2 Row Unshrouded TSM-108-01-F-DV-P-TR

Name: Samtec Vertical Surface Pin Header 16 Contacts 0.64 mm Pitch 2 Row Unshrouded TSM-108-01-F-DV-P-TR
Brand: Samtec
SKU: 172213
Price: 2.06 USD
Availability: InStock



Category PCB Pin Header Brand Samtec Condition New

Specifications

Country of Origin	India
Voltage	475V
Brand	Samtec
Orientation	Vertical
Model	TSM-108-01-F-DV-P-TR
Mount Type	Surface
Housing Material	Liquid Crystal Polymer
Contact Material	Phosphor Bronze
Series	TSM
Termination Type	Solder
Maximum Operating Temperature	125°C
Minimum Operating Temperature	-55°C
Number of Rows	2
Pitch	0.64mm
Contact Plating	Gold or Tin
Number of Contacts	16
Contact Gender	Male
Shrouded/Unshrouded	Unshrouded
Connector System	Board-to-Board
Row Pitch	2.54mm

Key Features

Utilizes high-quality liquid crystal polymer housing for durability.
Features phosphor bronze contacts with selective gold plating for reliable conductivity.
Designed with a vertical orientation and surface mount for efficient PCB integration.
Operates effectively within a temperature range of -55°C to 125°C.
Supports a voltage rating of 475V, suitable for various electronic applications.
Includes a 2.54 mm row pitch with male contact gender and solder termination type.
Compatible with pick and place manufacturing processes and supplied in tape and reel packaging.

Product Description

The Samtec TSM-108-01-F-DV-P-TR is a precision-engineered vertical surface mount pin header designed for high-reliability board-to-board connector applications. With 16 male contacts spaced at a fine 0.64 mm pitch and arranged in two rows, this unshrouded pin header ensures compactness and optimal electrical performance.

Its housing is constructed from liquid crystal polymer, offering excellent mechanical stability and electrical insulation. The contacts use phosphor bronze material with a selective 0.0000762 mm gold plating on the contact area and matte tin on the tail, enhancing connector longevity and signal integrity.

Engineered for demanding operating conditions, it supports a temperature range from -55°C to 125°C and a voltage rating up to 475V, making it suitable for applications in industrial, electronic manufacturing, telecommunications, and embedded systems.

The 2.54 mm row pitch and vertical orientation facilitate easy surface mounting on printed circuit boards, compatible with automated pick and place processes. The termination type is solder, ensuring a secure and durable mechanical and electrical connection.

Supplied in tape and reel packaging, the TSM series header supports efficient assembly line processes. Ideal use cases include electronic component manufacturing, embedded device assembly, and industrial equipment wiring where reliable, compact pin headers are essential.

Utilizes high-quality liquid crystal polymer housing for durability. Features phosphor bronze contacts with selective gold plating for reliable conductivity. Designed with a vertical orientation and surface mount for efficient PCB integration.

Operates effectively within a temperature range of -55°C to 125°C. Supports a voltage rating of 475V, suitable for various electronic applications. Includes a 2.54 mm row pitch with male contact gender and solder termination type.

Compatible with pick and place manufacturing processes and supplied in tape and reel packaging. Explore more in the PCB Pin Header category at EnvMart for advanced electronic components and connectors.
