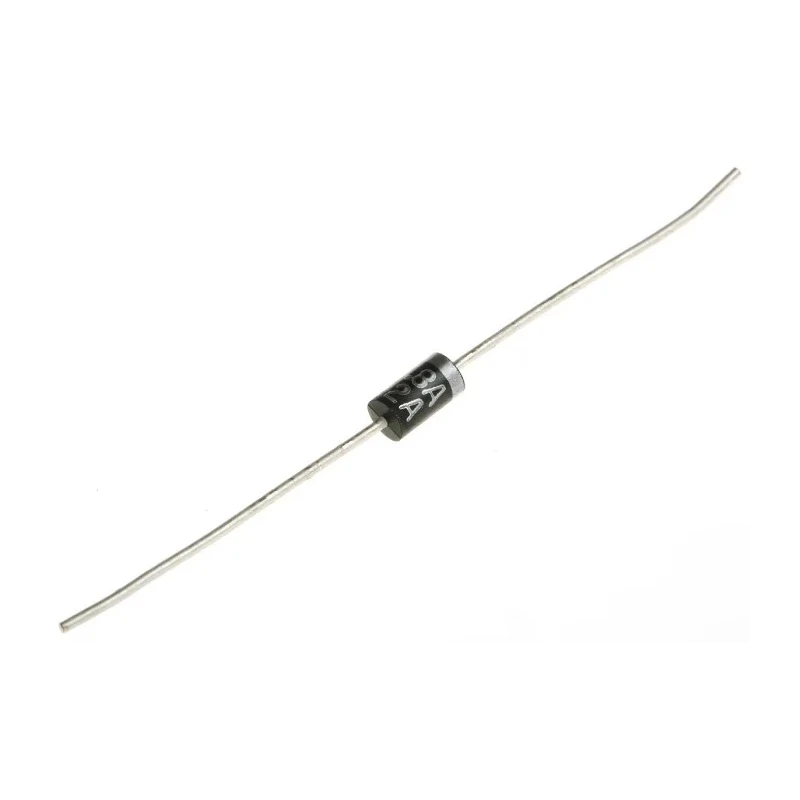

Vishay 1-Element Uni-Directional TVS Diode 600 W, 2-Pin DO-15 P6KE6.8A-E3/54
Specifications
| Country of Origin | India |
|---|---|
| Diameter | 3.6mm |
| Brand | Vishay |
| Height | 3.6mm |
| Length | 7.6mm |
| Model | P6KE6.8A-E3/54 |
| Width | 3.6mm |
| Mount Type | Through Hole |
| Series | TRANSZORB TVS |
| Maximum Operating Temperature | 175°C |
| Package Type | DO-15 |
| Minimum Operating Temperature | -55°C |
| Pin Count | 2 |
| Number of Elements per Chip | 1 |
| Clamping Voltage VC | 10.5V |
| Automotive Standard | AEC-Q101 |
| Diode Configuration | Single |
| Direction Type | Uni-Directional |
| Minimum Breakdown Voltage Vbr | 6.45V |
| Maximum Reverse Stand-off Voltage Vwm | 5.8V |
| Peak Pulse Power Dissipation Pppm | 600W |
| Test Current It | 10mA |
| Maximum Peak Pulse Current Ippm | 57.1A |
| Maximum Reverse Leakage Current | 1mA |
| Vishay P6KE6.8A, Uni-Directional TVS Diode, 600W, 2-Pin DO-204ACBrand | Vishay |
| HY Electronic Corp P6KE6.8A, Uni-Directional TVS Diode, 600W, 2-Pin DO-15Brand | HY Electronic Corp |
Key Features
- Single element diode configuration designed for uni-directional clamping.
- Rated for a peak pulse power dissipation of 600 W ensuring transient voltage protection.
- Minimum breakdown voltage of 6.45 V with a clamping voltage of 10.5 V.
- Wide operating temperature range from -55°C to 175°C for industrial reliability.
- Complies with AEC-Q101 automotive standards for enhanced durability.
- Supports ESD protection and has a maximum peak pulse current of 57.1 A.
- Compact axial DO-15 package measuring 7.6 mm length and 3.6 mm diameter.
Product Description
Vishay P6KE6.8A-E3/54 is a high-reliability 1-element uni-directional transient voltage suppressor (TVS) diode designed to protect sensitive electronic equipment from voltage spikes and transient surges. It features a single diode configuration in a compact 2-pin DO-15 through-hole package that is easy to mount on standard PCBs.
This TVS diode provides robust surge protection by dissipating up to 600 W peak pulse power, with a minimum breakdown voltage of 6.45 V, ensuring effective clamping of voltage transients at 10.5 V. Its maximum reverse stand-off voltage is 5.8 V, making it ideal for protecting low voltage circuits.
Thanks to its wide operating temperature range from -55°C up to 175°C and compliance with the automotive AEC-Q101 standard, this diode suits demanding industrial, automotive, and electronic applications that require high reliability and durability under harsh conditions.
The diode supports electrostatic discharge (ESD) protection with a maximum peak pulse current rating of 57.1 A, providing enhanced protection against sudden ESD events. Its axial DO-15 form factor, with dimensions of 7.6 mm length and 3.6 mm diameter, enables easy integration into diverse electronic assemblies.
Uni-directional transient voltage suppression for circuit protection. 600 W peak pulse power capability for high surge absorption. Designed for through-hole PCB mounting in axial DO-15 package. Wide ambient temperature operation from -55°C to 175°C.
Automotive certified to AEC-Q101 for enhanced reliability. Low leakage current with maximum reverse leakage of 1 mA. Compact size ideal for industrial and automotive electronics.
This Vishay TVS Diode is widely used in electronic equipment, semiconductor devices, communication systems, automotive electronics, and industrial control systems to safeguard components against damaging voltage spikes and ensure uninterrupted, safe operation.
Explore more Vishay semiconductor devices and dependable transient voltage suppression components on EnvMart for your industrial, automotive, and electronics protection needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The Vishay P6KE6.8A-E3/54 TVS diode has a peak pulse power dissipation of 600 W, providing robust surge protection.
The minimum breakdown voltage of this diode is 6.45 V, ensuring effective clamping of voltage transients.
The clamping voltage for the Vishay P6KE6.8A-E3/54 is 10.5 V, which helps in protecting sensitive electronic components from voltage spikes.
The maximum reverse stand-off voltage for this model is 5.8 V, making it suitable for low voltage circuit protection.
This TVS diode operates within a wide temperature range from -55°C to 175°C, suitable for various industrial applications.
The maximum peak pulse current rating for the Vishay P6KE6.8A-E3/54 is 57.1 A, providing enhanced protection against transient surges.
This model supports through-hole mounting, making it easy to integrate into standard PCBs.
The DO-15 package of this diode measures 7.6 mm in length and 3.6 mm in diameter, allowing for compact installation.
Yes, the Vishay P6KE6.8A-E3/54 complies with AEC-Q101 automotive standards, ensuring enhanced reliability for automotive applications.
The maximum reverse leakage current for this diode is 1 mA, which is low, contributing to its efficiency in circuit protection.
This model features a single element configuration, designed specifically for uni-directional clamping.
The Vishay P6KE6.8A-E3/54 is suitable for protecting electronic equipment, semiconductor devices, communication systems, and automotive electronics from voltage spikes.
