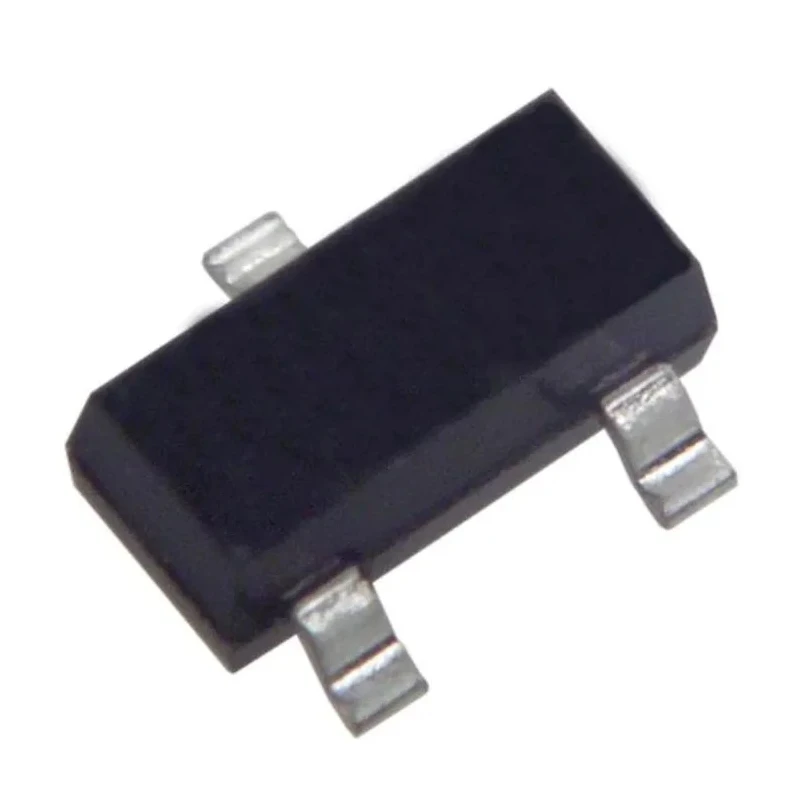

Vishay 5.6 V Small Signal Zener Diode Single 0.42 W 2% Tolerance Surface Mount 3-Pin SOT-23 BZX84C5V6-E3-08

Vishay BZX84C5V6-E3-08 is a high-quality 5.6 V small signal Zener diode designed for surface mounting on printed circuit boards using the 3-pin SOT-23 package. It delivers a maximum power dissipation of 0.42 W with a tight ±2% voltage tolerance, suitable for stable voltage regulation tasks in sensitive electronic circuits.

This diode features an operating junction temperature range from -55°C up to 150°C, providing excellent reliability across harsh environmental conditions typically seen in automotive and industrial electronics.

Key electrical characteristics include a test current of 5 mA and a maximum reverse leakage current capped at 1 microampere, ensuring minimal leakage and stable operation within regulated voltage circuits.

The device conforms to stringent automotive standards with AEC-Q101 qualification, alongside excellent ESD capability rated for human body model greater than 8 kV and machine model above 800 V, enhancing device protection in sensitive applications.

Its RoHS compliance and lead-free construction support environmentally conscious manufacturing processes without compromising performance. Nominal Zener voltage of 5.6 V with ±2% tolerance. Maximum power dissipation rating of 0.42 Watts.

Single diode configuration in a SOT-23 3-pin surface mount package. Operating temperature range from -55 °C to 150 °C. Test current of 5 mA and max reverse leakage current of 1 μA. AEC-Q101 automotive grade qualification.

ESD capability human body model > 8 kV and machine model > 800 V. RoHS compliant and lead free.

This Vishay Zener diode is ideal for voltage regulation and voltage stabilization in automotive electronics, industrial control systems, and general electronic equipment requiring high reliability and thermal performance.
