| Country of Origin | India |
|---|---|
| Brand | Nexperia |
| Height | 0.47mm |
| Length | 1mm |
| Model | BZX8850S-C10YL |
| Mount Type | Surface |
| Series | BZX8850S |
| Maximum Operating Temperature | 150°C |
| Working voltage range | nominal 1.8 V to 75 V |
| Package Type | DFN1006BD-2 |
| Minimum Operating Temperature | -55°C |
| Pin Count | 2 |
| Number of Elements per Chip | 1 |
| Automotive Standard | AEC-Q101 |
| Maximum Power Dissipation Pd | 365mW |
| Diode Configuration | Single |
| Test Current It | 50μA |
| Maximum Reverse Leakage Current | 100nA |
| Nominal Zener Voltage Vz | 10V |
| Zener Type | Voltage Regulator |
| Maximum Zener Impedance | 150Ω |
| Typical Voltage Temperature Coefficient | 4.5mV/K |

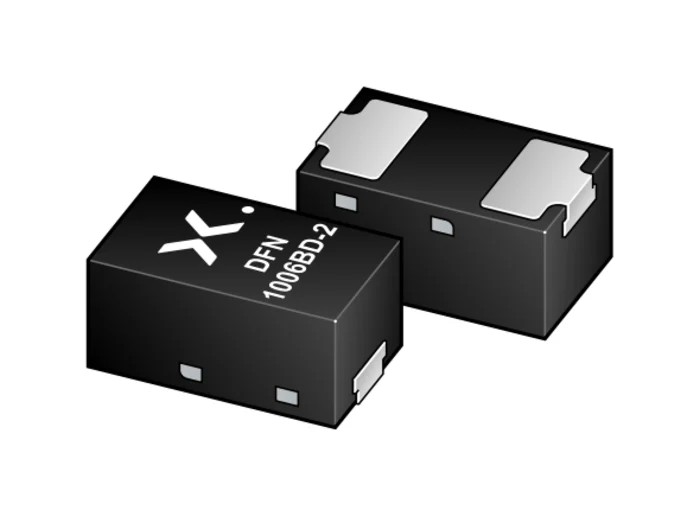

Nexperia BZX8850S-C10YL is a 10 V Zener Diode designed for voltage regulation applications in electronic circuits. It is a single-element diode housed in an ultra-compact DFN1006BD-2 2-pin surface mount package, delivering a maximum power dissipation of 365 mW. The diode is engineered for low current operation with a test current of 50 μA, providing stable voltage regulation suitable for portable and battery-powered devices.
This diode operates within a wide temperature range of -55°C to 150°C, making it reliable for industrial, automotive, and electronic manufacturing applications. Its small physical dimensions (1 mm length and 0.47 mm height) enable use in space-constrained circuit boards. The component exhibits low reverse leakage current and impedance, ensuring minimal power loss and efficient voltage regulation.
Certified to the automotive AEC-Q101 standard, the BZX8850S-C10YL supports usage in automotive electronics requiring high reliability. This Zener diode is ideal for use as a voltage regulator in power management circuits, protecting sensitive components from voltage spikes and providing stable reference voltages.
The diode features a single element configuration in a 2-pin DFN1006BD-2 package. Nominal Zener voltage is 10 V with ±5% tolerance for accurate regulation. Maximum power dissipation of 365 mW suits low-power applications.
Low reverse leakage current of 100 nA exhibits efficient operation. Operating temperature range from -55°C to 150°C ensures environmental stability. Automotive standard compliance (AEC-Q101) enhances reliability. Compact package dimensions enable high-density PCB layouts.
This diode is widely applicable across electronics manufacturing, automotive systems, industrial controls, and power management sectors. Its robust design and efficient package support enhanced production efficiency in commercial and industrial environments. For more specialized voltage regulation needs, explore additional semiconductor components in the EnvMart catalog.
Explore more products in our Zener Diodes category.
