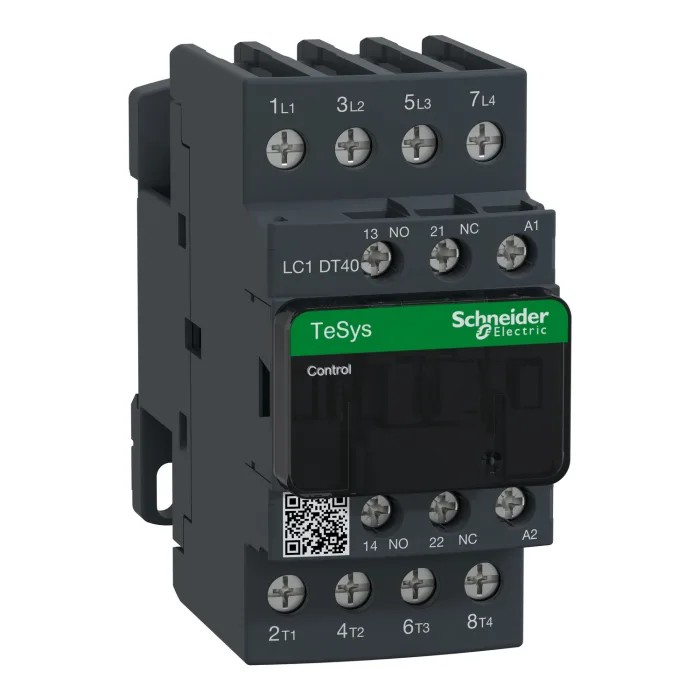

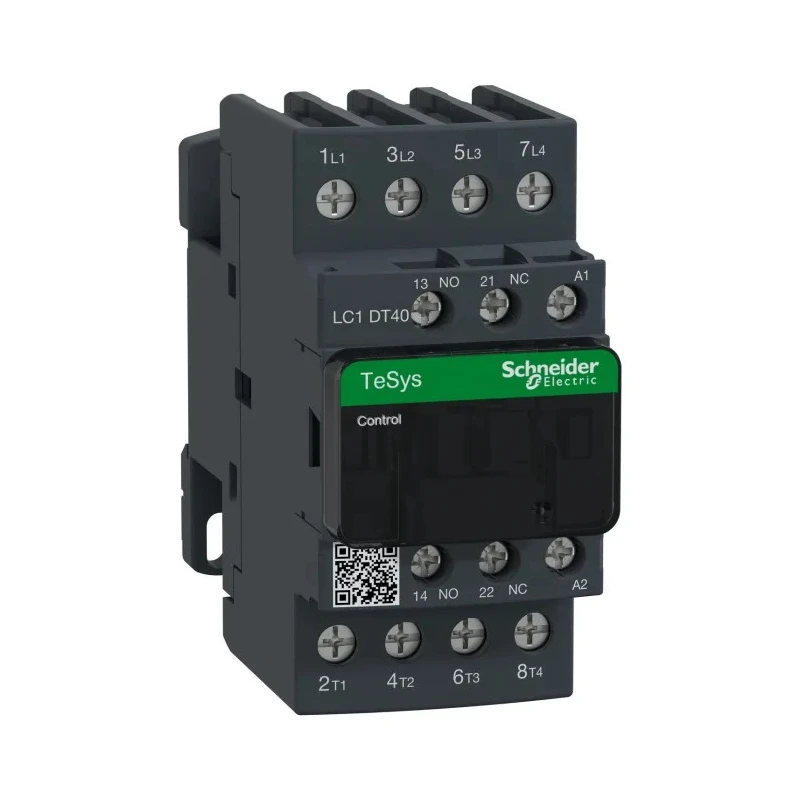

Schneider Electric LC1D Series Contactor, 48V AC Coil, 4-Pole, 40 A, 1.56 W Coil Power LC1DT40E7

Schneider Electric LC1DT40E7 is a high-performance 4-pole contactor featuring a 48V AC coil and rated operational current of 40 A. Designed primarily for motor control and resistive load applications, it operates with a coil power rating of 1.56 W providing efficient control circuit operation.

This compact contactor supports power circuits up to 690V AC, making it ideal for demanding industrial applications such as automation systems, motor starters, and resistive load switching in process control lines. Its robustness allows handling short-time fault currents and high switching rates, ensuring reliable performance in heavy-duty electrical installations.

The device includes 4 normally open main contacts for synchronized multi-pole switching and 2 auxiliary contacts (1 NO and 1 NC) for auxiliary signaling and interlocking. Screw clamp terminals accommodate various conductor types, ensuring secure wiring connections. Mounting is versatile with plate and rail options.

Electrical endurance of 1.4 million cycles at 40A AC-1 load up to 440V confirms durability for industrial usage. It can withstand 240A short-circuit current for 10 seconds and 380A for 1 second at 40°C ambient temperature. Rated breaking capacity of 450A at 440V assures safety during load breaks.

Operating temperature range from -5°C to 60°C broadens usability across multiple industrial environments. This contactor is compliant with UL, RoHS, IEC, EAC, CSA, and CCC standards ensuring global certifications for quality and safety.

Suitable for use in industrial automation, manufacturing control panels, HVAC systems, and heavy equipment power circuits demanding robust switching. The contactor contributes to efficiency and safety in electrical motor control and power distribution systems.

Operates at 48V AC coil voltage with 1.56W power rating. 4-pole design with 4 normally open contacts. Includes 2 auxiliary contacts (1 NO/1 NC) for signaling. Screw clamp terminals support flexible conductor wiring. Plate and rail mounting options available.

Electrical endurance of 1.4 million cycles under rated load. Short-time current withstand capability for fault conditions. Rated breaking capacity of 450A at 440V AC. Operating temperature range from -5°C to 60°C. Meets UL, RoHS, IEC, EAC, CSA, and CCC standards.
