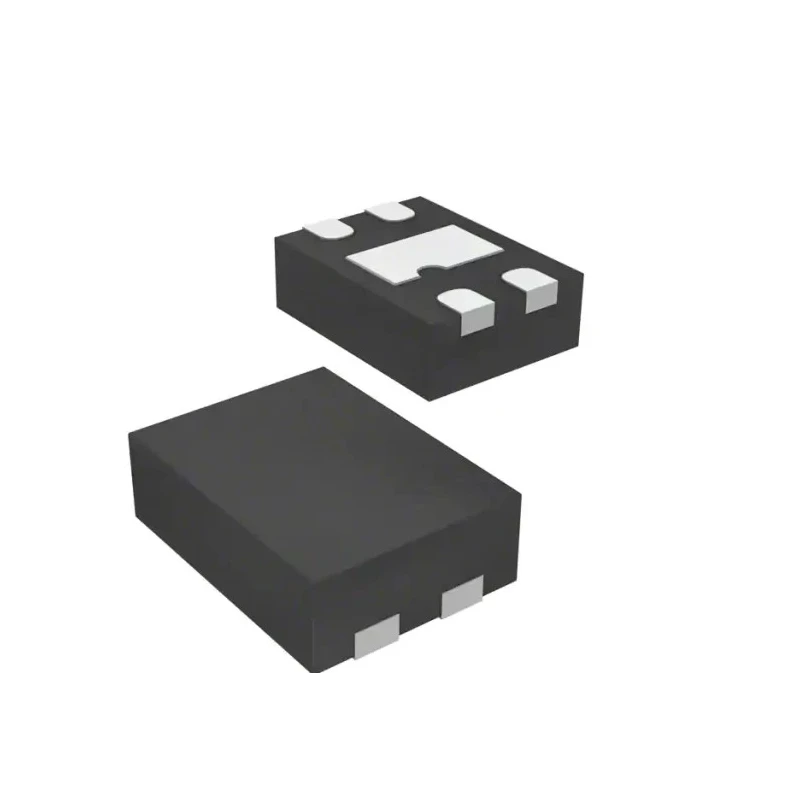

Vishay SiP32409 Type N-Channel MOSFET, 3.5 A Continuous Drain Current, 5.5 V Maximum Drain Source SIP32409DNP-T1-GE4
Specifications
| Country of Origin | India |
|---|---|
| Brand | Vishay |
| Height | 0.6mm |
| Length | 1.65mm |
| Model | SIP32409DNP-T1-GE4 |
| Width | 1.25mm |
| Mount Type | Surface |
| Series | SiP32409 |
| Maximum Operating Temperature | 125°C |
| Package Type | TDFN |
| Minimum Operating Temperature | -40°C |
| Pin Count | 4 |
| ANSI/ESD S20.20 | 2014 |
| BS EN 61340-5-1 | 2007 |
| Channel Type | Type N |
| Maximum Continuous Drain Current Id | 3.5A |
| Maximum Drain Source Voltage Vds | 5.5V |
| Maximum Drain Source Resistance Rds | 52mΩ |
| Maximum Power Dissipation Pd | 735mW |
| Forward Voltage Vf | 1.2V |
| Slew rate controlled turn on | 2.5ms at 3.6V |
Key Features
- Operates over a voltage range of 1.1 V to 5.5 V for versatile applications.
- Typical Rds(on) of 44 mΩ reduces power loss and heat generation.
- Features slew rate controlled turn-on of 2.5 ms to limit inrush current.
- Low shutdown current below 1 μA ensures minimal power consumption when disabled.
- Wide operating temperature from -40°C to 125°C supports harsh environments.
- Includes reverse current blocking preventing backflow of current when switched off.
- Ideal for use in digital cameras, GPS navigation, notebooks, and portable media players.
- Contains an output discharge circuit for rapid turn-off response.
Product Description
Vishay SIP32409DNP-T1-GE4 is a Type N-Channel MOSFET featuring a maximum continuous drain current of 3.5 A and a maximum drain-source voltage of 5.5 V, housed in a 4-pin TDFN package.
This MOSFET is designed with slew rate control technology that softens the turn-on to approximately 2.5 milliseconds, limiting inrush currents and reducing voltage dips in power rails primarily for heavy capacitive load designs.
It offers a low typical drain-source on-resistance of 44 milliohms which minimizes resistive losses and improves efficiency in power switching applications.
The device includes a low voltage control logic interface supporting on/off functionality without the need for additional level shifting circuits, enabling compatibility with low voltage control signals.
With a remarkably low shutdown current below 1 microampere, this MOSFET is energy-efficient when disabled and integrates reverse current blocking that prevents undesired current flow back into the power source.
Its operation temperature range spans from -40 degrees Celsius to 125 degrees Celsius, making it suitable for industrial, medical, automotive, digital, and consumer electronics environments.
Operating voltage range of 1.1 V to 5.5 V. Slew rate controlled turn on of 2.5 ms at 3.6 V. Maximum power dissipation of 735 milliwatts. Package dimensions include length: 1.65 mm, width: 1.25 mm, height: 0.6 mm. Complies with industry standards ANSI/ESD S20.20:2014 and BS EN 61340-5-1:2007.
The SIP32409 MOSFET is widely applied in data storage devices, GPS navigation units, notebook and netbook computers, digital cameras, tablet PCs, portable media players, industrial, medical, and healthcare electronics.
It offers a reliable and efficient switching solution for various low voltage power control applications, enhancing system protection and energy savings. Explore EnvMart’s Electronics & Electricals category for more semiconductor components and MOSFET solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum continuous drain current for this model is 3.5 A.
It operates over a voltage range of 1.1 V to 5.5 V.
The typical drain-source on-resistance (Rds(on)) is 44 milliohms.
The slew rate controlled turn-on time is approximately 2.5 milliseconds at 3.6 V.
The package dimensions are 1.65 mm in length, 1.25 mm in width, and 0.6 mm in height.
The maximum power dissipation is 735 milliwatts.
The operating temperature range spans from -40°C to 125°C.
Yes, it includes reverse current blocking to prevent backflow of current when switched off.
It is suitable for applications in digital cameras, GPS navigation, notebooks, and portable media players.
The shutdown current is below 1 microampere, ensuring minimal power consumption when disabled.
It complies with ANSI/ESD S20.20:2014 and BS EN 61340-5-1:2007 standards.
The SIP32409 has a pin count of 4.
