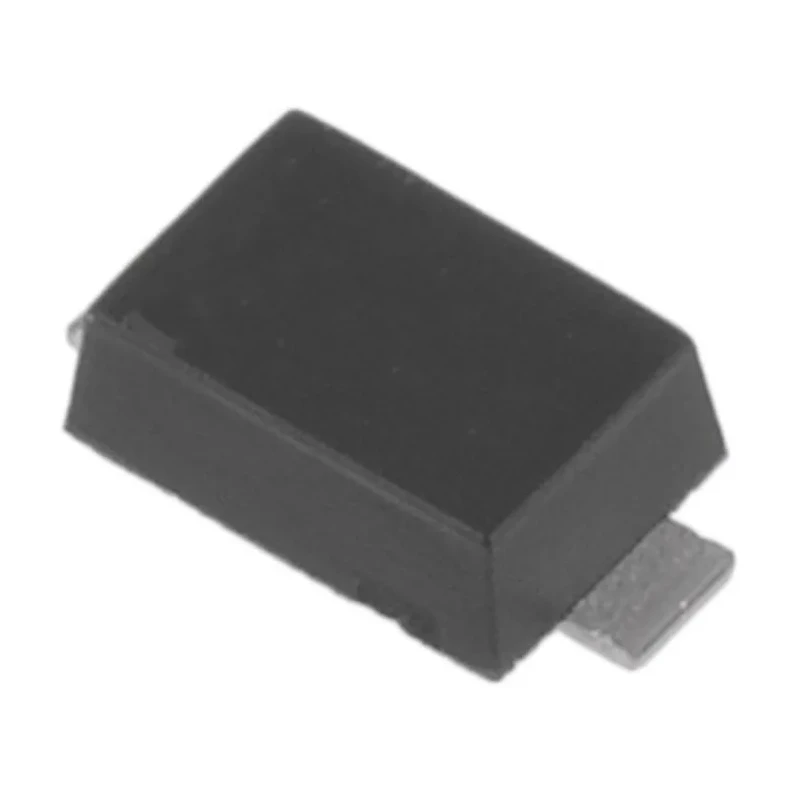

Vishay 21 V 500 mW Small Signal Surface Mount Zener Diode 2-Pin SOD-123 MMSZ4707-E3-08

Name: Vishay 21 V 500 mW Small Signal Surface Mount Zener Diode 2-Pin SOD-123 MMSZ4707-E3-08
Brand: Vishay
SKU: 99452
Price: 0.05 USD
Availability: InStock



Category Zener Diodes Brand Vishay Condition New

Specifications

Country of Origin	India
Brand	Vishay
Height	1.35mm
Length	2.85mm
Model	MMSZ4707-E3-08
Mount Type	Surface
Series	MMSZ4707
Maximum Operating Temperature	150°C
Package Type	SOD-123
Minimum Operating Temperature	-55°C
Standards/Approvals	RoHS
Pin Count	2
Number of Elements per Chip	1
Automotive Standard	AEC-Q101
Maximum Power Dissipation Pd	500mW
Diode Configuration	Single
Test Current It	0.05mA
Maximum Reverse Leakage Current	10nA
Nominal Zener Voltage Vz	21V
Zener Type	Small Signal
High temperature soldering guaranteed	260 °C/4 x 10 s set terminals

Key Features

Nominal Zener voltage of 21 volts ensures consistent voltage regulation.
Maximum power dissipation of 500 milliwatts supports small-signal applications.
Package type is compact SOD-123 suitable for surface mounting.
High temperature soldering capability up to 260 °C for 4 x 10 seconds ensures robust assembly.
Zener voltage tolerance of ±5% guarantees voltage accuracy in circuits.
Stable operation from -55°C to 150°C operating temperature range.
Small signal diode configuration with a 2-pin SOD-123 package.
Maximum reverse leakage current of 10 nanoamperes supports low leakage requirements.

Product Description

Vishay MMSZ4707-E3-08 is a high-quality 21 V Small Signal Zener Diode designed for reliable voltage regulation and reference applications in electronic circuits. This surface mount diode features a compact 2-pin SOD-123 package, making it ideal for use in space-constrained PCB layouts typical in industrial, automotive, and consumer electronic devices.

The diode has a maximum power dissipation rating of 500 milliwatts, allowing it to handle moderate power loads safely. It offers a nominal Zener voltage of 21 volts with a tolerance of ±5%, which provides precise voltage clamping and regulation in power supply circuits and protection devices.

Designed for tough environments, this diode tolerates operating temperatures from -55°C up to 150°C, making it suitable for harsh industrial and automotive applications. Its low maximum reverse leakage current of 10 nanoamperes and test current of 0.05 milliamps ensure minimal energy loss and reliable performance in sensitive circuits.

The diode conforms to RoHS standards and meets the automotive AEC-Q101 qualification, assuring its robustness and reliability for automotive electronics. It supports high temperature soldering up to 260 °C for 4 cycles of 10 seconds, facilitating strong and durable PCB assembly processes.

Nominal Zener voltage 21 V with ±5% tolerance. Maximum power dissipation 500 mW for small signal applications. Compact 2-pin SOD-123 surface mount package. Wide operating temperature range from -55°C to 150°C. Low reverse leakage current to minimize power loss.

Compliant with RoHS and automotive AEC-Q101 standards.

This Zener diode is suitable for voltage regulation, clipping, and reference voltage applications across industrial, automotive, electronic manufacturing, and power management sectors. Its small form factor and reliable specifications make it a versatile component for contemporary electronic device designs. Browse the Vishay catalog and related semiconductor categories at EnvMart for additional electronic components and accessories.

Explore more products in our Zener Diodes category.

Looking to purchase in bulk?

Purchase item in bulk quantity
Get best price for your business

Comments (0)

No customer reviews for the moment.

Frequently Asked Questions

The nominal Zener voltage of this diode is 21 volts, with a tolerance of ±5%.

The maximum power dissipation rating for this model is 500 milliwatts, suitable for small-signal applications.

This Zener diode operates within a temperature range of -55°C to 150°C.

The diode comes in a compact SOD-123 surface mount package.

The maximum reverse leakage current for this diode is 10 nanoamperes.

The test current for this model is 0.05 milliamps.

This diode complies with the automotive AEC-Q101 qualification standard.

The dimensions of this diode are 2.85 mm in length and 1.35 mm in height.

This model supports high temperature soldering up to 260 °C for 4 cycles of 10 seconds, ensuring robust assembly.

This Zener diode is suitable for voltage regulation, clipping, and reference voltage applications across various sectors, including industrial and automotive.
