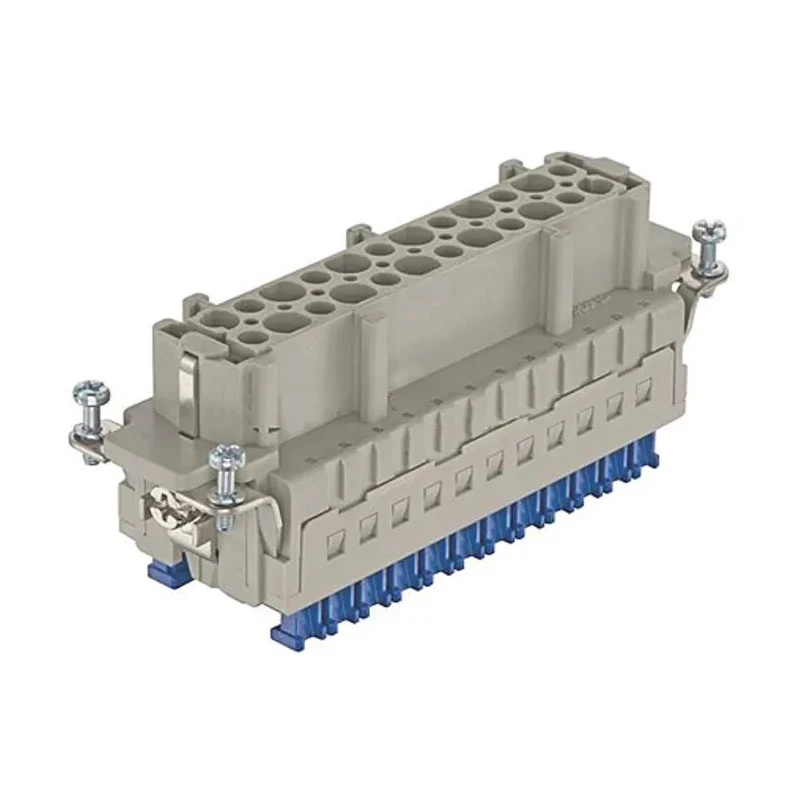

HARTING Heavy Duty Power Connector Insert 16A, 24 Contacts, Han ES Press Series Female, Panel Mount 09330242748
Specifications
| Country of Origin | Germany |
|---|---|
| Voltage | 500V |
| Brand | HARTING |
| Orientation | Straight |
| Mount Type | Panel Mount |
| Contact Material | Copper Alloy |
| Current Rating | 16A |
| Series | Han ES Press |
| Thread Size | M3 x 10 |
| Sub Type | Connector Insert |
| Number of Rows | 2 |
| For Use With | Heavy Duty Power Connector |
| Pole Format | 24 |
| Contact Plating | Silver |
| Number of Contacts | 24 |
| Connector Gender | Female |
| Minimum Wire Size mm² | 0.14mm² |
| Maximum Wire Size mm² | 2.5mm² |
Key Features
- Supports a current rating of 16 amps for reliable power transfer.
- Features 24 silver-plated contacts arranged in 2 rows for efficient connectivity.
- Includes vibration-proof design to ensure stable connections in industrial environments.
- Cage clamp terminations facilitate quick and easy wiring without additional tools.
- Accepts wire sizes ranging from 0.14 mm² to 2.5 mm² for versatile application.
- Designed for use with heavy duty power connectors and compatible with various Han housings and hoods.
- Constructed with copper alloy contact material for durability and conductivity.
- Operates reliably up to 500 volts and mounts easily on panels using M3 x 10 screws.
Product Description
HARTING 09330242748 Heavy Duty Power Connector Insert is a female panel mount connector from the Han ES Press series, rated for 16 amps and designed with 24 silver-plated contacts arranged in two rows. It is engineered for industrial and electronic power distribution applications requiring reliable and vibration-proof connections.
The connector employs cage clamp terminations which enable quick, tool-free wiring suitable for various wire sizes from 0.14 mm² to 2.5 mm², increasing installation efficiency. Its copper alloy contacts with silver plating provide excellent conductivity and corrosion resistance, supporting stable electrical performance over time.
Operating at up to 500 volts, this insert is ideal for heavy duty power connectors used in manufacturing, industrial automation, control panels, and power distribution systems. Its robust vibration-proof design ensures contact reliability even in harsh environments subject to mechanical stress.
The 09330242748 model accepts optional ES Press plug-in jumpers that allow bridging contacts directly within the connector to support motor star and delta connections and other multiple circuit configurations. It is compatible with a wide range of Han B, Han M, Han EMC, Han Easy Hood, and Han HPR housings and hoods, offering versatile modular assembly possibilities.
Manufactured in Germany, this connector insert meets high standards of build quality and is a trusted component in industrial heavy duty power connector solutions. Supports 16A current rating for industrial power use. Silver-plated copper alloy contacts arranged in 24 poles in two rows.
Cage clamp terminations for easy, tool-free wiring. Vibration-proof design enhances connection stability. Wire size range from 0.14 mm² up to 2.5 mm² accepted. Panel mountable with M3 x 10 screw size. Compatible with various Han series housings and hoods.
Enables use of plug-in jumpers for star and delta motor connections.
This HARTING connector insert is a reliable choice for electronic components and power connector assemblies used in industrial, manufacturing, automation, and electronic electrical applications. Explore EnvMart’s extensive selection of power connectors for more options and configurations to meet your project requirements.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The connector insert supports a current rating of 16 amps, making it suitable for industrial power applications.
It operates reliably at up to 500 volts, ensuring stable power transfer in various applications.
This model features 24 contacts arranged in two rows for efficient connectivity.
It employs cage clamp terminations, allowing for quick and tool-free wiring of the connector.
This connector accepts wire sizes ranging from 0.14 mm² to 2.5 mm², providing versatility for various applications.
The contacts are made from copper alloy and are silver-plated, which enhances conductivity and corrosion resistance.
It is designed for panel mounting and requires M3 x 10 screws for installation.
Yes, it is compatible with various Han series housings, including Han B, Han M, Han EMC, Han Easy Hood, and Han HPR.
It is intended for use in industrial power distribution applications, including manufacturing, automation, and control panels.
Yes, it allows for the use of optional ES Press plug-in jumpers for bridging contacts, suitable for motor star and delta connections.
This connector insert is manufactured in Germany, adhering to high standards of build quality.
