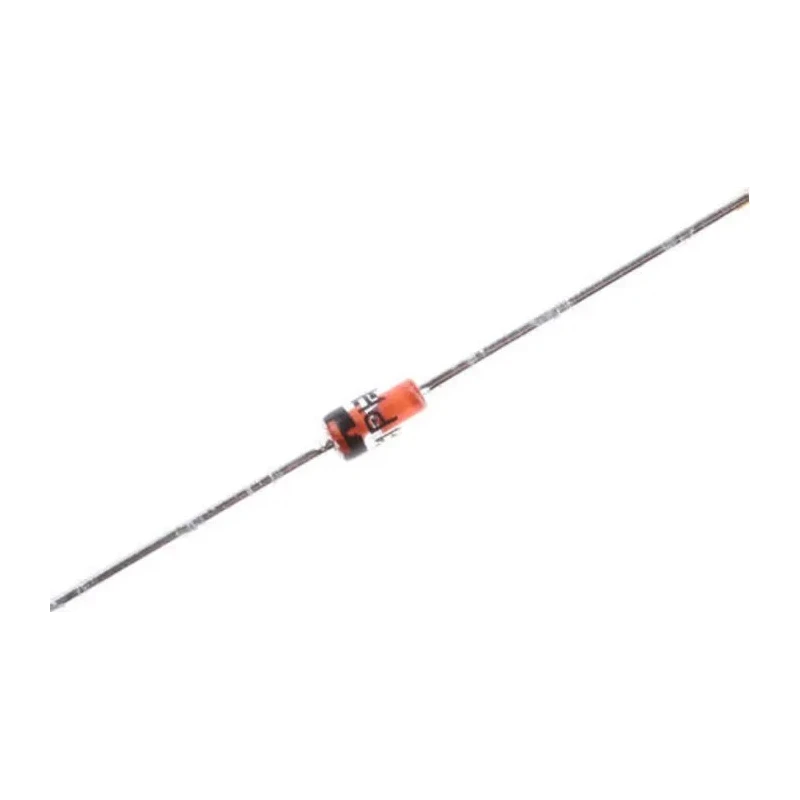

Nexperia Through Hole 1.3 V 500 mW Zener Diode Single 2-Pin SOD-27 BZX79-C3V0,133

Nexperia BZX79-C3V0,133 is a high-quality 3 V Zener Diode designed for voltage regulation applications requiring consistent voltage reference and stabilization. This diode features a robust maximum power dissipation rating of 500 mW and comes in a compact SOD-27 package suitable for through hole mounting.

It operates reliably across a wide temperature range from -65°C to 200°C, making it well-suited for various industrial and electronic applications including power supply circuits and voltage stabilization in industrial, laboratory, and commercial electronics.

The diode configuration is single element with a 2-pin design to facilitate easy mounting on printed circuit boards with through hole technology. Its maximum reverse leakage current of just 10 μA contributes to its energy efficiency and overall performance longevity.

The nominal Zener voltage is tightly controlled at 3 V with a tolerance of ±2%, ensuring precise voltage regulation. The standard test current is 5 mA, and it exhibits a typical voltage temperature coefficient of -2.1 mV/K, providing reliable voltage compensation across temperature variations.

Physical dimensions are compact with 4.25 mm length and 1.85 mm height, suitable for high-density circuit boards. Designed for voltage regulation with 2% tolerance. Packaged in SOD-27 with 2 pins for through-hole mounting.

Maximum operating temperature up to 200°C ensures reliability. Low maximum reverse leakage current of 10 μA for efficient operation. Test current specified at 5 mA for performance validation. Compact dimensions with length 4.25 mm and height 1.85 mm.

Typical voltage temperature coefficient of -2.1 mV/K for stable operation.

This Zener diode is ideal for use in electronics manufacturing, industrial control circuits, power supplies, and embedded systems requiring stable voltage regulation. Browse Nexperia products and Zener Diodes on EnvMart for more options and technical specifications.
