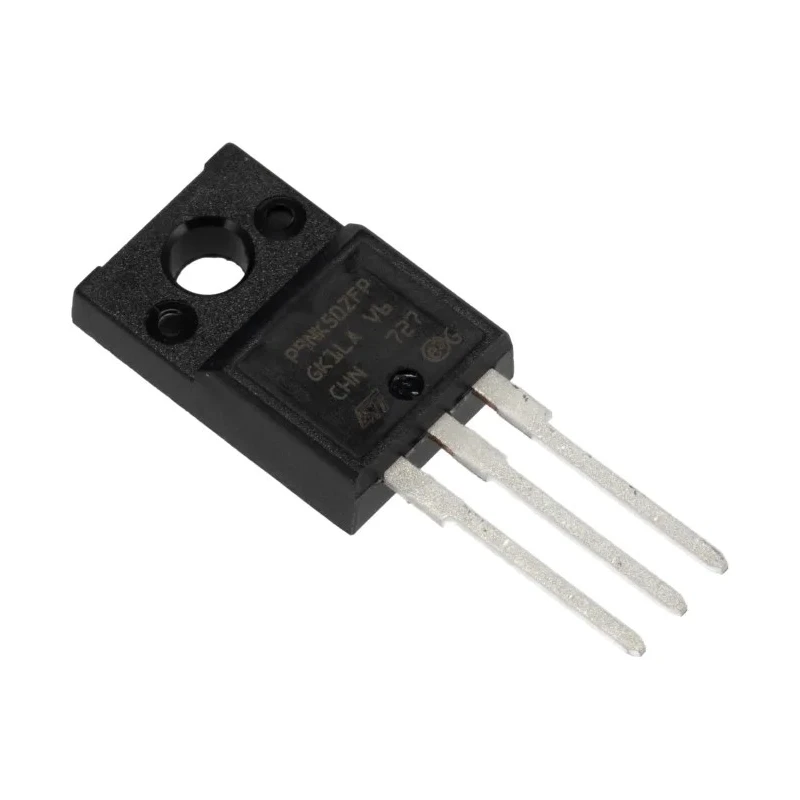

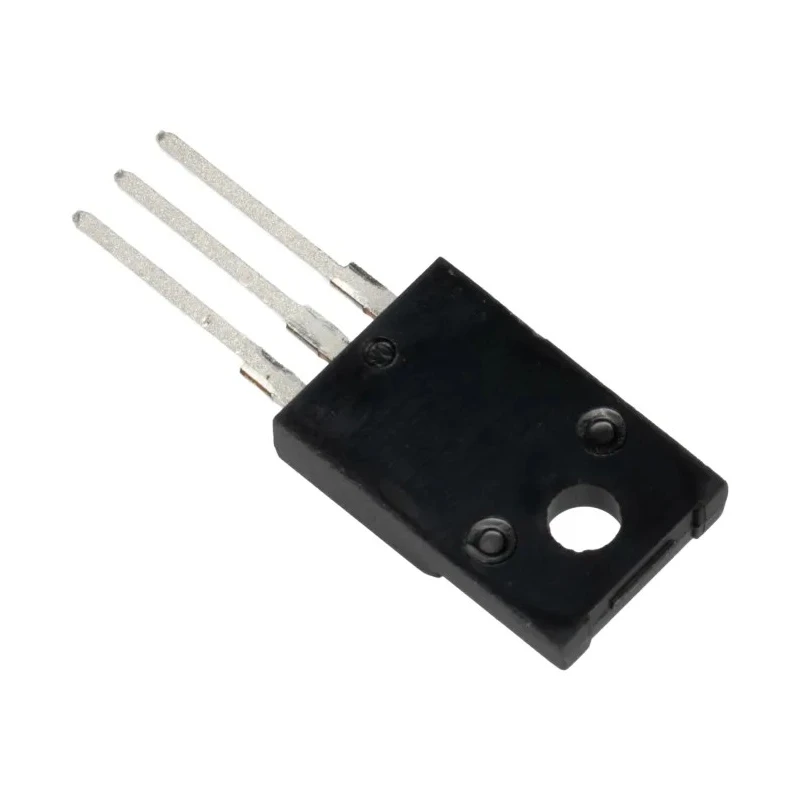

STMicroelectronics Type N-Channel MOSFET, 7.2 A, 500 V Enhancement, 3-Pin TO-220 STP9NK50ZFP
Specifications
| Country of Origin | India |
|---|---|
| Brand | STMicroelectronics |
| Height | 9.3mm |
| Length | 10.4mm |
| Model | STP9NK50ZFP |
| Width | 4.6mm |
| Mount Type | Through Hole |
| Maximum Operating Temperature | 150°C |
| Package Type | TO-220 |
| Minimum Operating Temperature | -55°C |
| Pin Count | 3 |
| Channel Type | Type N |
| Maximum Continuous Drain Current Id | 7.2A |
| Maximum Drain Source Voltage Vds | 500V |
| Maximum Drain Source Resistance Rds | 850mΩ |
| Channel Mode | Enhancement |
| Maximum Power Dissipation Pd | 30W |
| Typical Gate Charge Qg @ Vgs | 32nC |
| Maximum Gate Source Voltage Vgs | 30V |
| Forward Voltage Vf | 1.6V |
Key Features
- This MOSFET uses an Enhancement mode channel for high efficiency switching.
- Maximum continuous drain current is rated at 7.2 A.
- Pin count is 3 with through-hole mount type for robust mechanical connection.
- Features a low maximum drain-source resistance of 850 mΩ for reduced power loss.
- Maximum power dissipation is 30 W ensuring reliable operation under load.
- Wide operating temperature range from -55°C to 150°C supports diverse industrial environments.
- Typical gate charge is 32 nC at specified gate voltage, enabling fast switching.
- Forward voltage drop is low at 1.6 V enhancing conduction efficiency.
Product Description
STMicroelectronics STP9NK50ZFP is a high-performance N-channel Enhancement type MOSFET transistor designed for power and switching applications. The device supports a maximum continuous drain current of 7.2 A and a maximum drain-source voltage of 500 V, making it ideal for use in power management, motor control, and industrial electronics circuits.
The transistor is housed in a 3-pin TO-220 package that provides a through-hole mount type for secure mechanical and thermal stability. Its low on-resistance of 850 mΩ minimizes conduction loss, contributing to improved energy efficiency in various electronic devices.
With a power dissipation rating of 30 W and an operating temperature range of -55°C to 150°C, the STP9NK50ZFP is suitable for a broad range of industrial, laboratory, manufacturing, and commercial electronic applications where reliable high-voltage switching is required.
The typical gate charge of 32 nC at the rated gate voltage allows fast switching speed, supporting efficient power conversion. The device features a forward voltage drop of 1.6 V, optimizing conduction efficiency during operation.
Dimensionally, the compact package measures 10.4 mm in length, 9.3 mm in height, with a width of 4.6 mm, making it suitable for space-constrained designs. This STMicroelectronics MOSFET provides a robust solution for switching and amplification in modern power electronics.
Its characteristics make it applicable in industrial power supplies, battery management systems, and consumer electronics. The TO-220 package supports ease of installation and effective heat dissipation. Capable of handling 7.2 A current, it is reliable for moderate-power switching applications.
The enhancement mode operation ensures stable gate control for precise switching performance. Explore more electronic components like this in the Semiconductor category on EnvMart for your industrial and electronic design needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum continuous drain current of the STMicroelectronics STP9NK50ZFP is rated at 7.2 A.
This MOSFET supports a maximum drain-source voltage of 500 V.
It is housed in a TO-220 package and features a through-hole mount type for secure installation.
The operating temperature range for this model is from -55°C to 150°C.
The typical gate charge for this MOSFET is 32 nC at the rated gate voltage.
The maximum power dissipation for the STP9NK50ZFP is 30 W.
The maximum drain-source resistance is 850 mΩ, which helps reduce power loss.
This model measures 10.4 mm in length, 9.3 mm in height, and 4.6 mm in width.
This MOSFET is suitable for power management, motor control, and various industrial electronics circuits.
The forward voltage drop for this model is 1.6 V, enhancing conduction efficiency.
The STP9NK50ZFP features a pin count of 3.
This model uses an N-channel enhancement mode for efficient switching.
