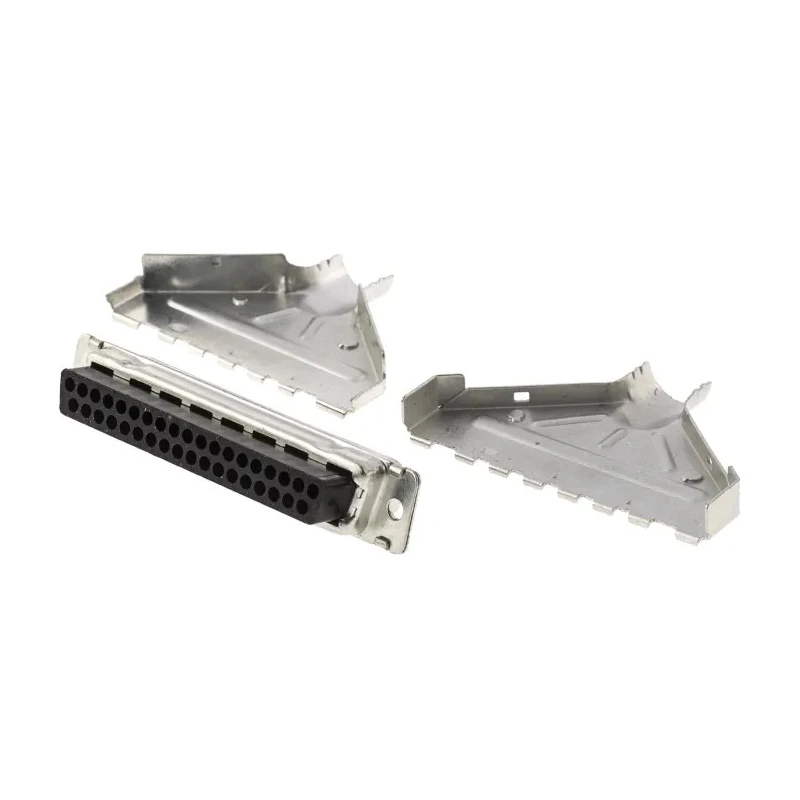

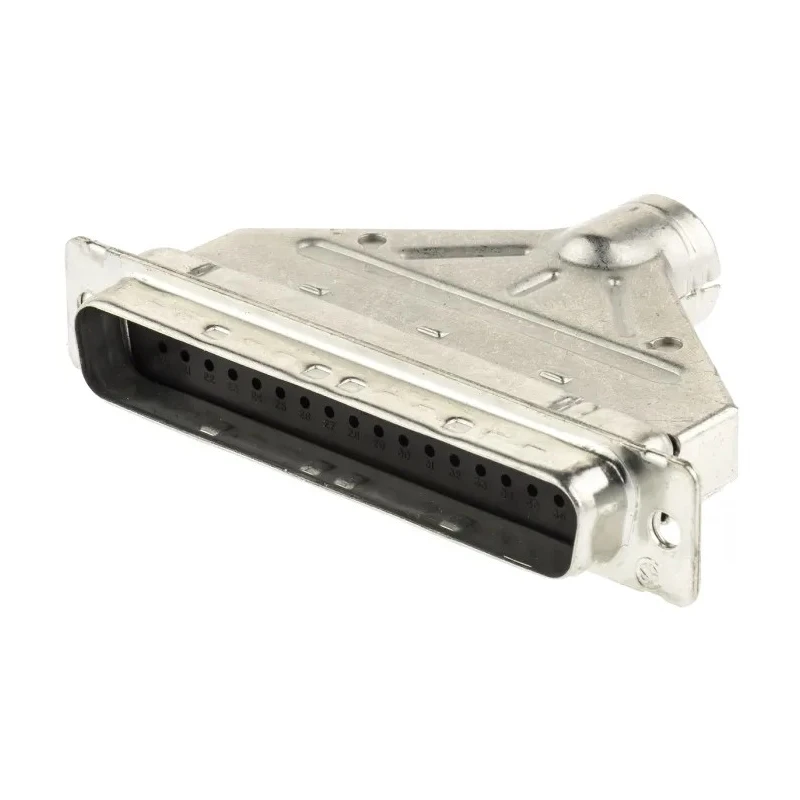

TE Connectivity AMPLIMITE HDP-20 37 Way Straight Cable D-Sub Connector with Shielding Hardware Kit Male 1658650-1
Specifications
| Country of Origin | India |
|---|---|
| Brand | TE Connectivity |
| Orientation | Straight |
| Mount Type | Cable |
| Housing Material | Nylon |
| Contact Material | Copper Alloy |
| Series | AMPLIMITE HDP-20 |
| Mounting Hardware | Shielding Hardware Kit |
| Termination Type | Crimp |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -55°C |
| Contact Plating | Tin Plated |
| Number of Contacts | 37 |
| Connector Gender | Male |
| Connector Type D | D-Subminiature |
| D-Sub Shell Size | DS-4 |
Key Features
- Features 37 contacts for comprehensive wiring capability.
- The connector has a straight orientation for standard cable layouts.
- Includes a shielding hardware kit ensuring EMI protection.
- Constructed with nylon housing offering durability and chemical resistance.
- Contact material is copper alloy with tin plating for excellent conductivity and corrosion resistance.
- Termination is by crimp method ensuring secure and reliable contact.
- Operates within temperature range from -55°C to 105°C for versatile environments.
- Shell size is DS-4, compatible with HDP-20 series components.
Product Description
TE Connectivity 1658650-1 AMPLIMITE HDP-20 37 Way Straight Cable D-Sub Connector with Shielding Hardware Kit Male is engineered for demanding electronic assembly applications requiring high-quality shielded connectors.
This connector features 37 contacts designed for straight cable orientation, providing reliable male connections for various industrial and electronic use cases. The housing is fabricated from durable nylon material rated UL94V-0 flame retardant, suited for stringent requirements.

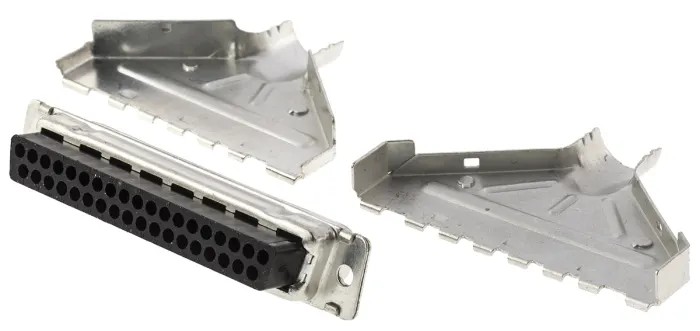

The kit includes a tin-plated steel shell with inner and outer shields to enhance electromagnetic interference (EMI) protection, critical in industrial, power, and communication systems. The contacts are made from copper alloy with tin plating, terminated by crimp for secure and stable mechanical and electrical connectivity. Its operating temperature range spans from -55°C to 105°C, facilitating use in harsh environments including industrial automation, power connectors for heavy machinery, and control systems.
Compatibility extends to mates with HDE, HDP, and HD-20 series D-sub connectors with standard 3.05 mm mounting holes. Additional hardware accessories such as screwlocks, screw retainers, locking posts, and spring latches are also available separately to complement diverse assembly configurations.
37 electrical contacts designed for robust connectivity. Straight cable orientation for versatile wiring applications. Includes shielding hardware kit for EMI protection. Nylon housing provides high durability and flame resistance.
Copper alloy contacts with tin plating ensure corrosion resistance. Crimp termination type guarantees secure connections. Wide operating temperature range from -55°C to 105°C. DS-4 shell size compatible with standard HDP-20 series connectors.
This AMPLIMITE D-sub connector is ideal for electronic components, power connectors, and computing connectors applications. Explore more D-Sub Connectors and robust power connector options at EnvMart for optimized electronic integration.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This D-Sub connector features 37 contacts, providing comprehensive wiring capability for various applications.
It operates within a temperature range from -55°C to 105°C, making it suitable for use in harsh environments.
The connector utilizes a crimp termination type, ensuring secure and reliable electrical connectivity.
The housing is constructed from nylon, which offers durability and chemical resistance, and is rated UL94V-0 for flame resistance.
Yes, it includes a shielding hardware kit that enhances electromagnetic interference (EMI) protection.
The shell size is DS-4, which is compatible with HDP-20 series components.
The contacts are made from copper alloy with tin plating, providing excellent conductivity and corrosion resistance.
This connector has a male gender, designed for reliable male connections in various applications.
It features a cable mounting type, suitable for standard cable layouts.
Yes, it is compatible with HDE, HDP, and HD-20 series D-sub connectors that have standard 3.05 mm mounting holes.
This model is ideal for electronic components, power connectors, and computing connectors in industrial and communication systems.
The country of origin for this connector is India.
