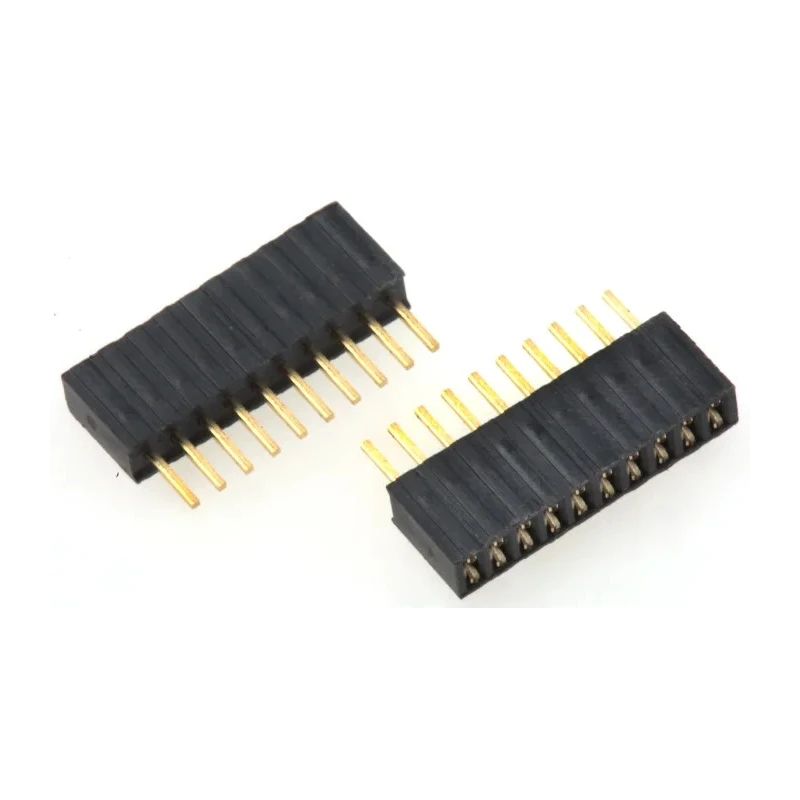

HARWIN M52 Series 10-Contact 1 Row 1.27 mm Pitch Straight Through Hole PCB Socket M52-5001045
Specifications
| Country of Origin | Taiwan |
|---|---|
| Voltage | 500V |
| Brand | HARWIN |
| Orientation | Straight |
| Current | 12A |
| Model | M52-5001045 |
| Mount Type | Through Hole |
| Housing Material | Nylon |
| Contact Material | Bronze |
| Series | M52 |
| Termination Type | Solder |
| Maximum Operating Temperature | 105°C |
| Sub Type | Socket Strip |
| Minimum Operating Temperature | -40°C |
| Number of Rows | 1 |
| Pitch | 1.27mm |
| Contact Plating | Gold |
| Number of Contacts | 10 |
| Contact Gender | Female |
| Connector System | Board-to-Board |
Key Features
- Features 10 female contacts in a single row for reliable board-to-board connection.
- Constructed with nylon housing for mechanical strength and electrical insulation.
- Gold-plated bronze contacts ensure excellent conductivity and corrosion resistance.
- Supports solder termination and through hole mount type for secure installation.
- Rated for a current of 12A and voltage up to 500V.
- Operates reliably within -40°C to 105°C temperature range.
- Pitch between contacts measures 1.27 mm.
- Manufactured in Taiwan, Province Of China, ensuring quality control standards.
Product Description
HARWIN M52-5001045 is a high-quality straight through hole PCB socket from the M52 Series, featuring 10 female contacts arranged in a single row with a precise 1.27 mm pitch. The socket is engineered for board-to-board connection systems, offering reliable performance in demanding industrial and electronic environments.
Constructed with a durable nylon housing, this socket ensures electrical insulation and mechanical stability during installation and operation. The contacts are made of bronze with gold plating to provide excellent electrical conductivity and resistance to corrosion, enhancing lifespan and safety in various applications.
This socket supports solder termination, facilitating secure attachment to printed circuit boards via through hole mounting method. It is rated for operation at currents up to 12A and voltage up to 500V, suitable for medium-power circuits.
The operating temperature range from -40°C to 105°C allows use in diverse environmental conditions, from cold storage electronics to industrial equipment exposed to elevated temperatures. The precise 1.27 mm pitch meets standard electronic component mounting requirements.
Typical applications include electronic manufacturing, PCB assembly, test equipment, instrumentation, and communication devices. Its robust design ensures stability and reliable electrical connections in laboratory, industrial automation, and electronic development environments.
Features 10 female contacts in a single row for reliable board-to-board connection. Constructed with nylon housing for mechanical strength and electrical insulation. Gold-plated bronze contacts ensure excellent conductivity and corrosion resistance.
Supports solder termination and through hole mount type for secure installation. Rated for a current of 12A and voltage up to 500V. Operates reliably within -40°C to 105°C temperature range. Pitch between contacts measures 1.27 mm.
Manufactured in Taiwan, Province Of China, ensuring quality control standards. Explore more electronics components and PCB Sockets at EnvMart for your industrial and electronic project needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model is rated for a current of 12A, making it suitable for medium-power circuits.
The M52-5001045 socket can handle voltages up to 500V.
The pitch between the contacts measures 1.27 mm, which meets standard electronic component mounting requirements.
It supports solder termination, allowing for secure attachment to printed circuit boards via through hole mounting.
This unit operates reliably within a temperature range of -40°C to 105°C, suitable for diverse environmental conditions.
The housing is constructed from nylon, providing mechanical strength and electrical insulation.
This model features 10 female contacts arranged in a single row for reliable board-to-board connections.
The contacts are made of bronze and are gold-plated to ensure excellent conductivity and corrosion resistance.
It supports through hole mounting type for secure installation on printed circuit boards.
Typical applications include electronic manufacturing, PCB assembly, test equipment, instrumentation, and communication devices.
This socket is manufactured in Taiwan, ensuring adherence to quality control standards.
The contacts are oriented in a straight configuration, facilitating easy board-to-board connections.
