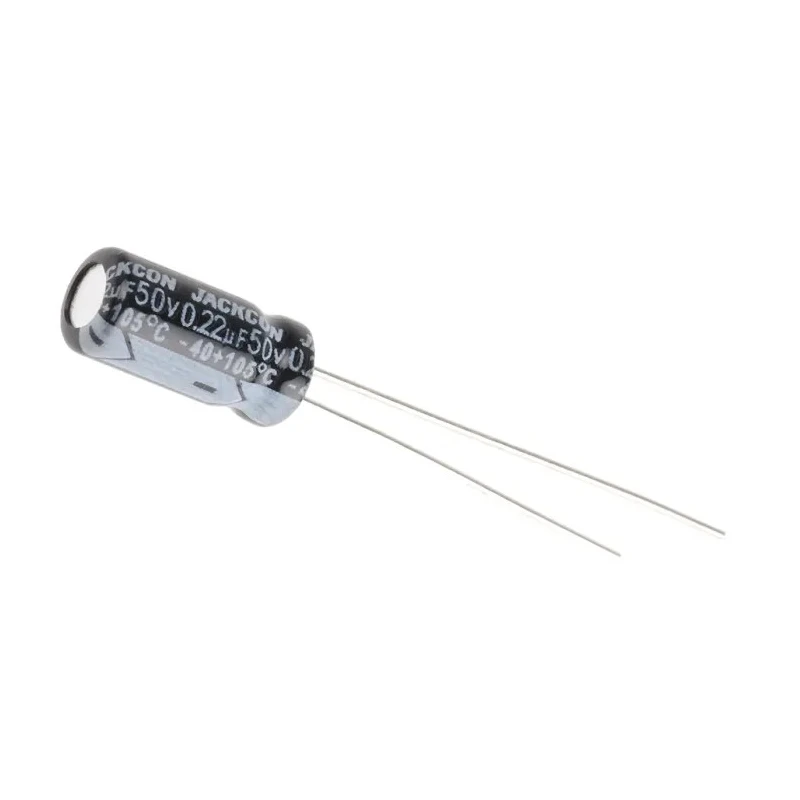

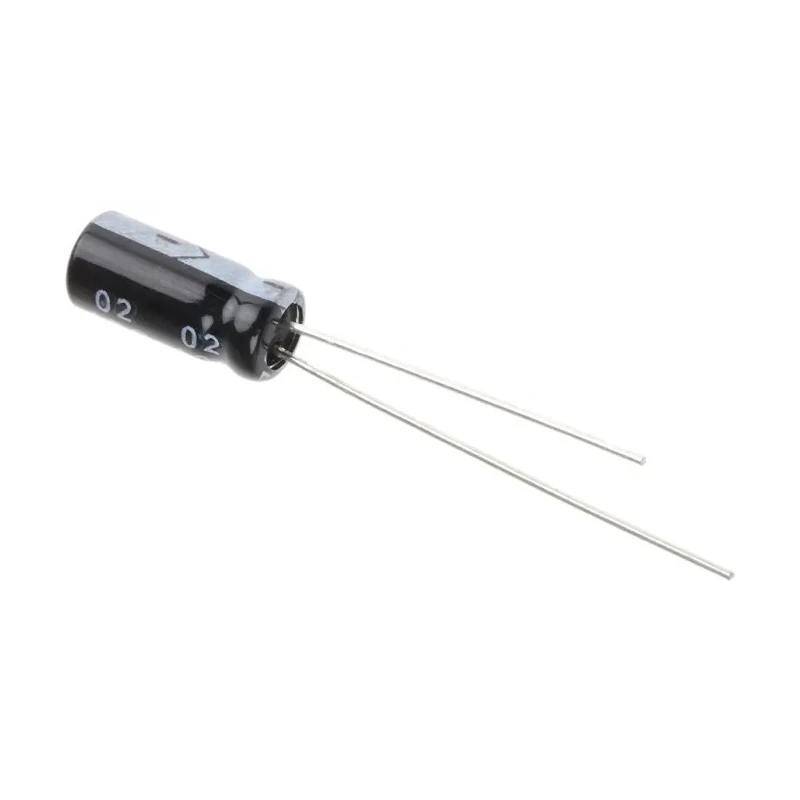

RS PRO 220 nF Radial Can Aluminium Capacitor 50V dc Through Hole Polar Construction 711-1390

RS PRO 711-1390 aluminium capacitor is a 220 nF capacitance component designed for through hole radial mounting with a polar construction suitable for various electronic and communication equipment.

This capacitor operates at a maximum voltage of 50V dc and supports a wide temperature range from -40°C to 105°C, making it appropriate for industrial and commercial electronic applications requiring stability under thermal stress.

The capacitor features a radial lead termination style with a lead pitch of 2 mm, making it ideal for printed circuit board (PCB) assembly using through hole technology.

Its compact dimensions of 11 mm height, 11 mm length, and 5 mm diameter enable integration into space-constrained designs. The component offers a capacitance tolerance of ±20% and a low leakage current of 3μA ensuring consistent performance.

The ripple current rating of 2.9mA supports its use in switching power supplies and communication circuits where transient currents are expected. The expected lifetime is rated at 1000 hours under specified operating conditions, emphasizing reliability over its service life.

Manufactured in Taiwan, Province of China, this RS PRO aluminium capacitor is engineered to provide reliable general purpose performance for industrial, electronic manufacturing, and communication equipment applications.

Rated voltage is 50V dc suitable for general purpose electronic circuits. Capacitance tolerance of ±20% ensures moderate precision for capacitance value. Operates reliably in temperatures ranging from -40°C to 105°C. Radial lead termination with 2 pins and 2 mm lead pitch compatible with through hole PCB designs.

Small form factor with 11 mm height, 11 mm length, and 5 mm diameter for compact electronic assemblies. Low leakage current of 3μA and ripple current rating of 2.9mA for durability. Expected lifetime of 1000 hours under rated conditions.

Compliance information indicates no specific automotive standards or additional approvals.
