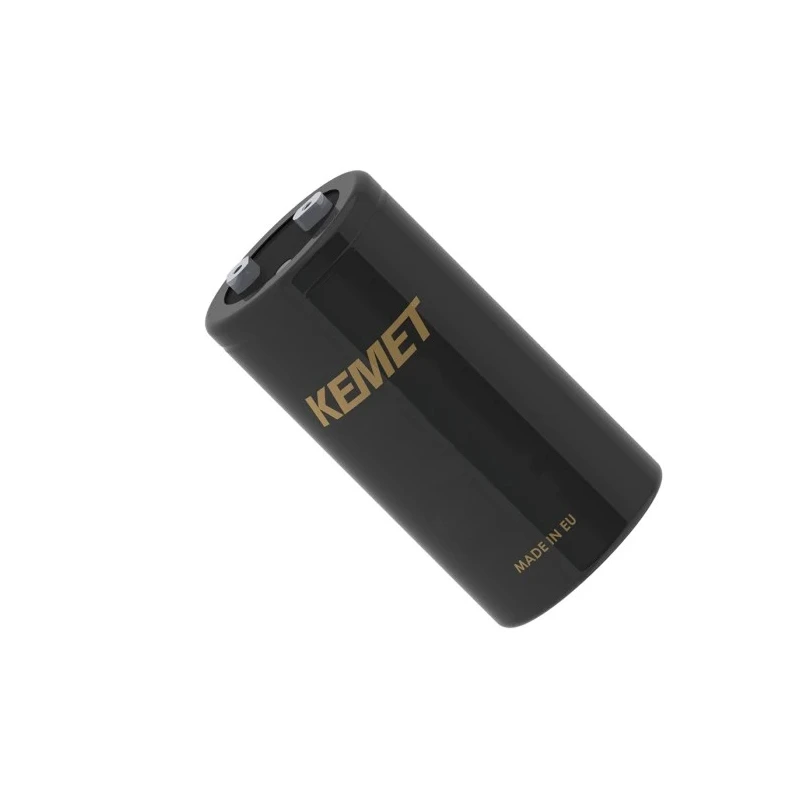

KEMET Aluminium Electrolytic Capacitor 0.22 F 25V dc Screw Mount Cylindrical Can ALS31A224NF025

Free Delivery in India | Lowest Global Shipping Charges

KEMET Aluminium Electrolytic Capacitor 0.22 F 25V dc Screw Mount Cylindrical Can ALS31A224NF025

Name: KEMET Aluminium Electrolytic Capacitor 0.22 F 25V dc Screw Mount Cylindrical Can ALS31A224NF025
Brand: KEMET
SKU: 146947



Category Aluminium Capacitors Brand KEMET Condition New

Specifications

Country of Origin	Portugal
Voltage	25V dc
Diameter	77mm
Brand	KEMET
Model	ALS31A224NF025
Packaging	Box
Mount Type	Screw
Construction	Cylindrical Can
Series	ALS31
Termination Type	Screw
Maximum Operating Temperature	85°C
Tolerance	±20 %
Lifetime	40000 h
Capacitance	0.22F
Minimum Operating Temperature	-40°C
Polarity	Polar
Leakage Current	6μA
Standards/Approvals	IEC 60384-4, RoHS
Pin Count	2
Lead Pitch	31.8mm
Equivalent Series Resistance ESR	6mΩ
Capacitor Ripple Current	30.8A

Key Features

Capacitance of 0.22 Farads with a voltage rating of 25V DC.
Screw terminal mount type ensures secure electrical connection.
Compact cylindrical can construction suitable for industrial environments.
Operates between -40°C to 85°C with a lifetime of 40,000 hours.
High ripple current rating of 30.8A supports demanding power applications.
Low leakage current of 6μA and ±20% capacitance tolerance.
Lead pitch measures 31.8 mm with 2-pin configuration.
Conforms to IEC 60384-4 and RoHS standards ensuring quality and compliance.

Product Description

KEMET ALS31A224NF025 Aluminium Electrolytic Capacitor offers a capacitance of 0.22 Farads with a 25V DC voltage rating. This screw terminal mount capacitor features a cylindrical can construction that provides excellent surge voltage capability and high ripple current handling.

Designed for industrial and commercial applications, the ALS31 series capacitors ensure high reliability and a long operational lifetime of up to 40,000 hours at 85°C. Suitable uses include smoothing, energy storage, and pulse operation in telecommunications power supplies, AC motor control, process control, welding, traction, and measuring equipment.

The capacitor operates effectively within a temperature range of -40°C to 85°C. With a low equivalent series resistance (ESR) of 6 mΩ and leakage current of only 6μA, it maintains efficient electrical performance. The ±20% tolerance and robust mounting type guarantee stable connectivity and durability in demanding environments.

Features include a lead pitch of 31.8 mm, 2-pin design, and compliance with IEC 60384-4 and RoHS standards. Terminal screws and fixing nut are not supplied with this unit. Capacitance of 0.22 Farads with 25V DC rating. Screw mount type with cylindrical can construction.

Operating temperature range from -40°C to 85°C. Lifetime expectancy of 40,000 hours at 85°C. High ripple current capacity at 30.8A. Low leakage current of 6μA and ESR of 6mΩ. Compliance with IEC 60384-4 and RoHS standards.

Manufactured in Portugal, ALS31 series for robust industrial applications.

This capacitor is ideal for use in industrial electronics, telecommunications, power supply filtering, and motor control applications. Its durability and compliance make it a reliable choice for engineers requiring high-performance capacitors.
