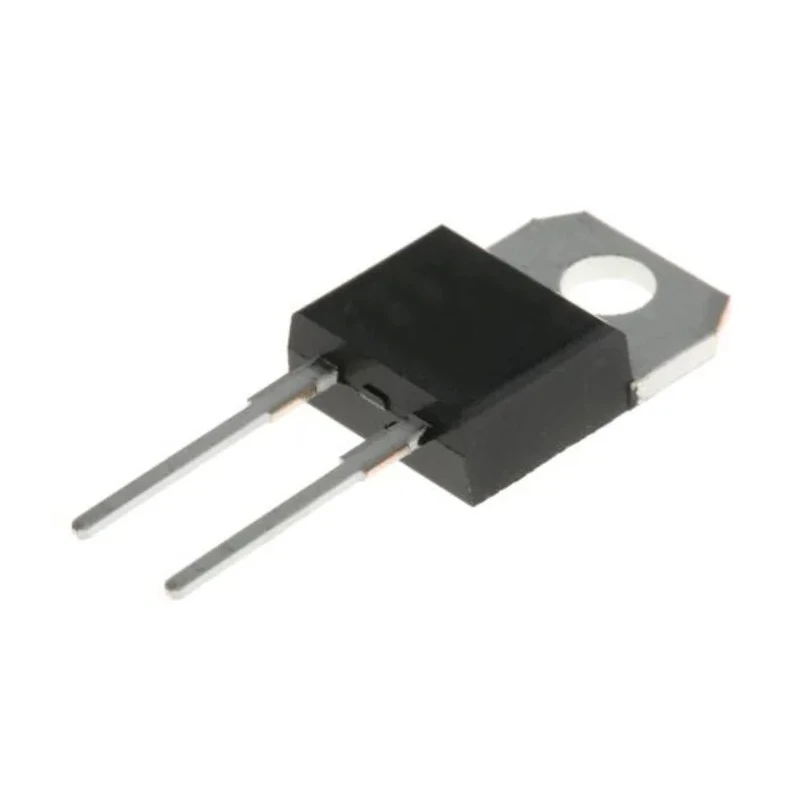

onsemi Silicon Carbide (SiC) Schottky Diode 650 V 10 A TO-220 2-Pin FFSPF1065A
Specifications
| Country of Origin | China |
|---|---|
| Diameter | 3.18mm |
| Brand | onsemi |
| Height | 15.87mm |
| Length | 10.16mm |
| Model | FFSPF1065A |
| Width | 4.7mm |
| Mount Type | Through Hole |
| Maximum Operating Temperature | 175°C |
| Package Type | TO-220 |
| Minimum Operating Temperature | -55°C |
| Pin Count | 2 |
| Maximum Continuous Forward Current If | 10A |
| Peak Reverse Repetitive Voltage Vrrm | 650V |
| Diode Configuration | Single |
| Rectifier Type | Schottky |
| Peak Reverse Current Ir | 600μA |
| Peak Non-Repetitive Forward Surge Current Ifsm | 720A |
| Maximum Forward Voltage Vf | 1.75V |
| onsemi 650 V 10 A Diode Schottky 2-Pin TO-220 FFSPF1065ABrand | onsemi |
Key Features
- Uses silicon carbide technology for superior switching performance and reliability.
- Features high surge current capacity and a maximum junction temperature of 175°C.
- No reverse recovery current and temperature-independent switching characteristics.
- Suitable for PFC, industrial power, solar, EV charger, UPS, and welding applications.
- Compact TO-220 package with through-hole mount for easy PCB integration.
- Peak reverse repetitive voltage of 650 V supports robust reverse blocking.
- Maximum forward voltage of 1.75 V ensures efficient conduction.
- Wide operating temperature range from -55°C to 175°C.
Product Description
onsemi FFSPF1065A is a Silicon Carbide (SiC) Schottky Diode designed for high reliability and superior switching performance. It operates at a maximum continuous forward current of 10 A and can block voltages up to 650 V, packaged in a 2-pin TO-220 form factor suitable for through-hole mounting.
This diode adopts advanced SiC technology, eliminating reverse recovery current and providing temperature-independent switching characteristics, which contributes to higher efficiency and reduced electromagnetic interference in power systems.
It supports maximum junction temperatures up to 175°C and has a peak non-repetitive forward surge current rating of 720 A, making it ideal for demanding industrial and power electronic applications.
Typical applications include power factor correction (PFC), industrial power supplies, solar inverters, electric vehicle (EV) chargers, uninterruptible power supplies (UPS), and welding equipment, where high efficiency and thermal performance are critical.
Utilizes silicon carbide Schottky technology for fast switching and enhanced reliability. Maximum continuous forward current of 10 A and peak reverse voltage of 650 V. Low forward voltage drop of 1.75 V improves conductive efficiency.
Wide operating temperature range of -55°C to 175°C ensures stable operation under harsh conditions. TO-220 package allows easy mounting on heat sinks and standard PCB layouts. Peak reverse current is minimal at 600 μA, reducing leakage power loss.
Designed without reverse recovery, reducing switching losses and electromagnetic interference. Compact dimensions of approximately 15.87 mm height, 10.16 mm length, and 4.7 mm width. Country of Origin: China.
This Schottky diode is the next generation solution in power semiconductors offering improved efficiency, power density, and cost effectiveness. It is a recommended component for industrial, laboratory, HVAC, manufacturing, and commercial electrical power applications requiring robust diode performance.
Explore additional semiconductor components and power devices in EnvMart’s electronics category for comprehensive system design needs.
Explore more products in our Schottky Diodes & Rectifiers category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum continuous forward current for this model is 10 A.
This diode has a peak reverse repetitive voltage rating of 650 V.
The maximum operating temperature for this diode is 175°C.
The maximum forward voltage drop for this unit is 1.75 V.
The dimensions of the TO-220 package are approximately 15.87 mm in height, 10.16 mm in length, and 4.7 mm in width.
This diode is suitable for applications such as power factor correction (PFC), industrial power supplies, solar inverters, electric vehicle (EV) chargers, uninterruptible power supplies (UPS), and welding equipment.
It uses a through-hole mounting type, making it easy to integrate into PCB layouts.
The peak non-repetitive forward surge current rating for this diode is 720 A.
The minimum operating temperature for this diode is -55°C.
The peak reverse current for this model is 600 μA.
This diode is configured as a single Schottky diode.
It utilizes silicon carbide (SiC) technology for superior switching performance and reliability.
