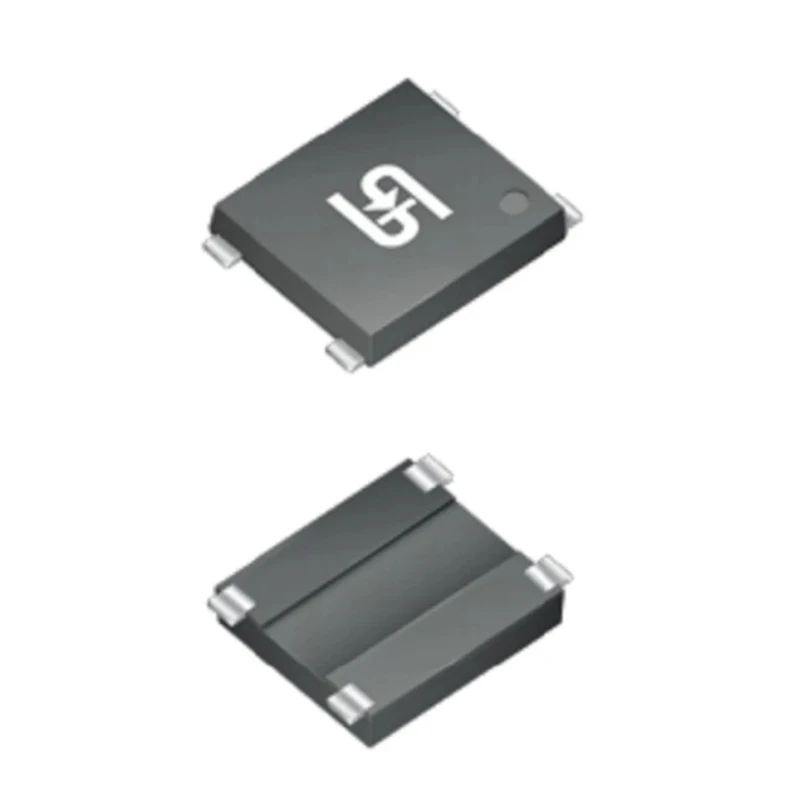

Taiwan Semiconductor Bridge Rectifier 400V 110A Surface Mount Quad YBS3004G

Name: Taiwan Semiconductor Bridge Rectifier 400V 110A Surface Mount Quad YBS3004G
Brand: Taiwan Semiconductor
SKU: 93169
Price: 0.23 USD
Availability: InStock



Category Bridge Rectifier Module Brand Taiwan Semiconductor Condition New

Specifications

Country of Origin	India
Brand	Taiwan Semiconductor
Height	8.6mm
Length	6.7mm
Model	YBS3004G
Mount Type	Surface
Series	YBS3000
Configuration	Quad
Maximum Operating Temperature	150°C
Package Type	YBS
Minimum Operating Temperature	-55°C
Standards/Approvals	UL, RoHS, IEC 61249-2-21
Pin Count	4
Peak Reverse Repetitive Voltage Vrrm	400V
Peak Reverse Current Ir	0μA
Peak Non-Repetitive Forward Surge Current Ifsm	110A
Forward Current If	3A
Peak Forward Voltage Vf	1V

Key Features

Designed for efficient conversion of AC to DC in high-power electronic applications.
Rated for peak reverse repetitive voltage up to 400V, making it suitable for robust power circuits.
Offers a maximum surge forward current of 110A for handling short-term overloads.
Surface mount package type (YBS) allows automated PCB placement and compact design integration.
Operates reliably at temperatures from -55°C to 150°C, suitable for industrial environments.
Quad configuration and 4-pin layout ensure versatile usage in adapters and lighting applications.
Moisture sensitivity level 1 (J-STD-020) enhances durability and longevity.
RoHS compliant and halogen-free, meeting IEC 61249-2-21 safety and environmental standards.

Product Description

Taiwan Semiconductor YBS3004G Bridge Rectifier is a surface mount, quad configuration device, engineered for high-performance AC to DC conversion in demanding electronic power circuits. With a peak reverse repetitive voltage rating of 400V and maximum surge forward current of 110A, this product is highly suitable for reliable operation under varying electrical loads in power supplies, adapters, and lighting systems.

The YBS3004G features a robust YBS surface-mount package with a 4-pin layout, ideal for automated placement on printed circuit boards and ensuring compact, space-saving design. It provides stable forward current up to 3A and exhibits exceptional reliability for applications requiring high surge current capability.

Efficient bridge rectifier for switching mode power supplies, adapters, and lighting applications. Glass passivated chip junction ensures extended operational life and high performance. Reliable low-cost construction utilizing advanced molded plastic technique.

Maximum operating temperature of 150°C and minimum -55°C, supporting industrial use in challenging environments. Moisture sensitivity level 1 (per J-STD-020) offers enhanced protection against environmental factors. UL, RoHS, and IEC 61249-2-21 certified for safety and environmental compliance.

The device's quad configuration optimizes rectification efficiency, making it ideal for large-scale industrial manufacturing, commercial lighting, and automated equipment. With stringent RoHS and halogen-free certifications, it meets both global environmental and safety requirements, further extending its suitability to environmentally conscious operations.

Common use cases in industrial, manufacturing, automotive, and laboratory applications include power conversion, rectification in switching mode power supplies (SMPS), LED lighting, and adapter circuits. The YBS3004G is part of the YBS3000 series, offering compatibility with other high-performance Taiwan Semiconductor components.

Explore Taiwan Semiconductor's full range of Bridge Rectifier Modules and discover industrial-grade solutions for every electronic power conversion challenge on EnvMart.

Looking to purchase in bulk?

Purchase item in bulk quantity
Get best price for your business

Comments (0)

No customer reviews for the moment.

Frequently Asked Questions

The YBS3004G has a peak reverse repetitive voltage rating of 400V, making it suitable for robust power circuits.

This model can handle a maximum surge forward current of 110A, allowing it to manage short-term overloads effectively.

The dimensions of this bridge rectifier are 6.7mm in length and 8.6mm in height.

It operates reliably within a temperature range of -55°C to 150°C, suitable for industrial environments.

The YBS3004G features a quad configuration, which optimizes rectification efficiency for various applications.

The forward current rating for the YBS3004G is 3A, providing stable performance under normal operating conditions.

This model is certified under UL, RoHS, and IEC 61249-2-21 standards, ensuring safety and environmental compliance.

It uses a surface mount package type (YBS), which allows for automated PCB placement and compact design integration.

The YBS3004G has a moisture sensitivity level of 1, according to J-STD-020, enhancing its durability and longevity.

This bridge rectifier is suitable for applications in power supplies, adapters, and lighting systems, particularly in industrial and automotive settings.

The YBS3004G has a pin count of 4, facilitating its connection in various electronic circuits.

The peak forward voltage for the YBS3004G is 1V, which is typical for bridge rectifiers in its category.
