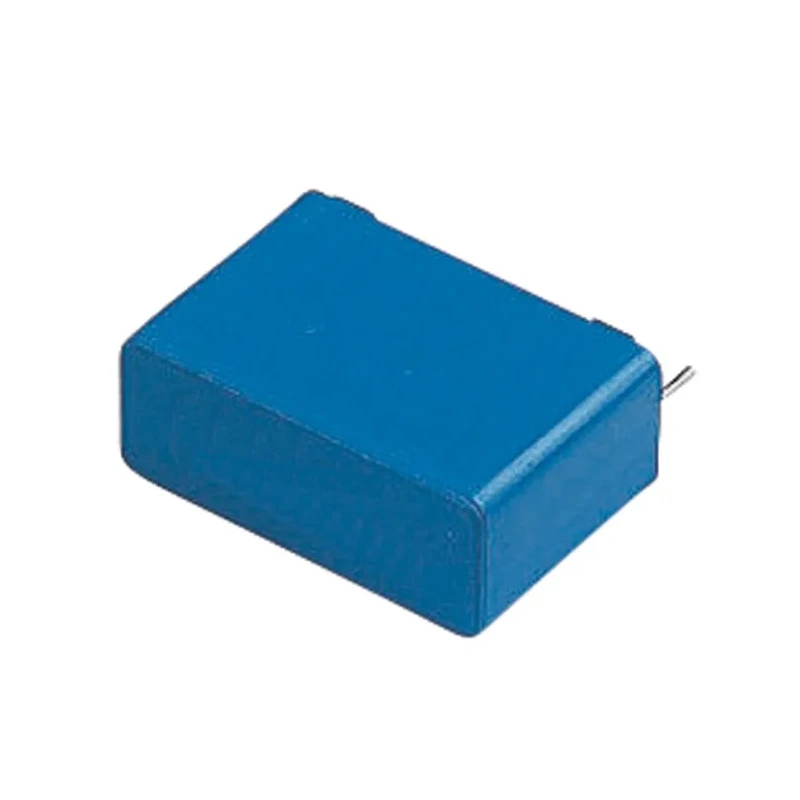

TDK Film Capacitor, 470 nF, 40V AC, 63V DC, Through Hole, Lead Pitch 10mm, AEC-Q200, 13x4x7mm, B32521C0474J000

The TDK B32521C0474J000 is a high-quality Film Capacitor engineered for reliable circuit performance, particularly in automotive, industrial, and demanding electronic applications. Designed with a capacitance value of 470 nF and rated for both 40V AC and 63V DC operating voltages, it provides effective blocking, coupling, decoupling, and bypassing capabilities in signal and power circuitry.

This component features a through-hole mounting configuration, offering secure placement on PCBs and optimal mechanical stability during operation. Its 10 mm lead pitch is standard, facilitating straightforward integration into existing designs. The capacitor is compliant with the AEC-Q200 Rev D automotive standard, ensuring its suitability for automotive environments, including under-the-hood and high-temperature areas. With a maximum operating temperature of 125°C, the capacitor demonstrates resilience during sustained exposure to heat.

Measuring only 13 mm in length, 4 mm in width, and 7 mm in height, the B32521 series enables compact assembly without compromising performance. The plastic case is sealed with epoxy resin certified to UL 94 V-0, providing excellent safety and flame resistance. Stacked-film and wound construction delivers high pulse strength and robust contact reliability, key for circuits subject to voltage surges and frequent switching.

Common use cases include automotive applications (RFI filtering, bypassing, coupling), general electronics, industrial controls, and power management systems where reliability and performance are critical. The capacitor's RoHS and UL compliance underscore product safety and environmental responsibility. Pin count is 2, and lead diameter is 0.6 mm, facilitating standard insertion and soldering.

The TDK B32521C0474J000 is part of the renowned B32521 series, well-regarded for its durability, precision, and robust electrical characteristics. Explore more TDK capacitors and passive components in EnvMart’s Electronics & Electricals catalog for professional and automotive requirements.
