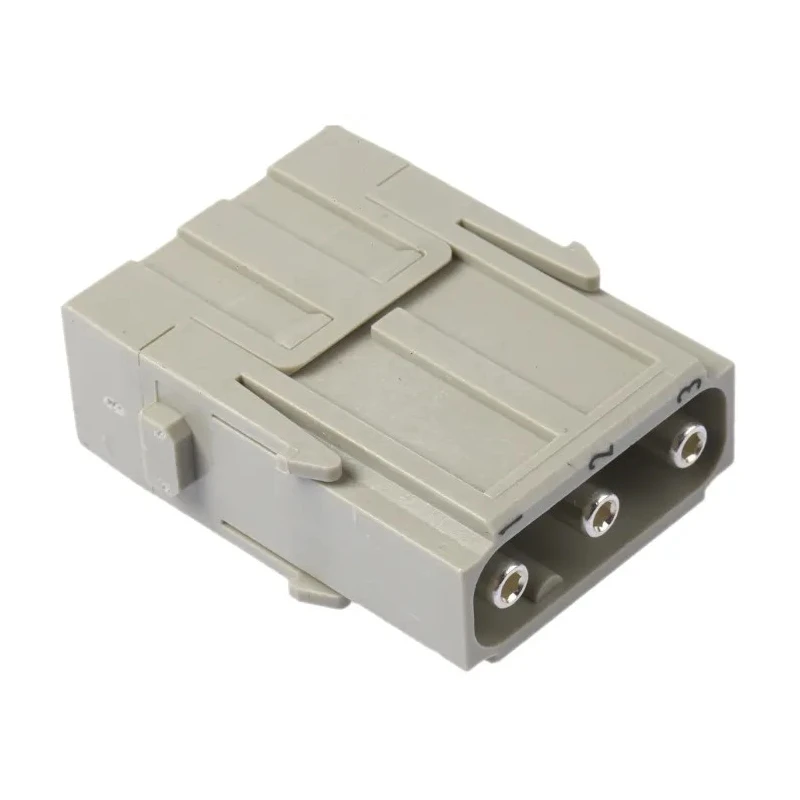

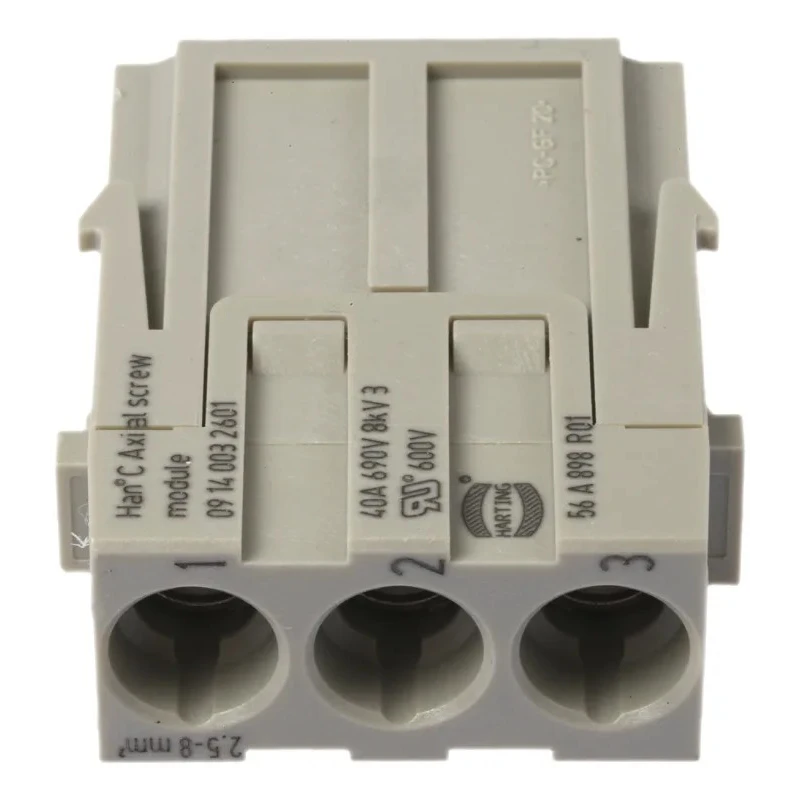

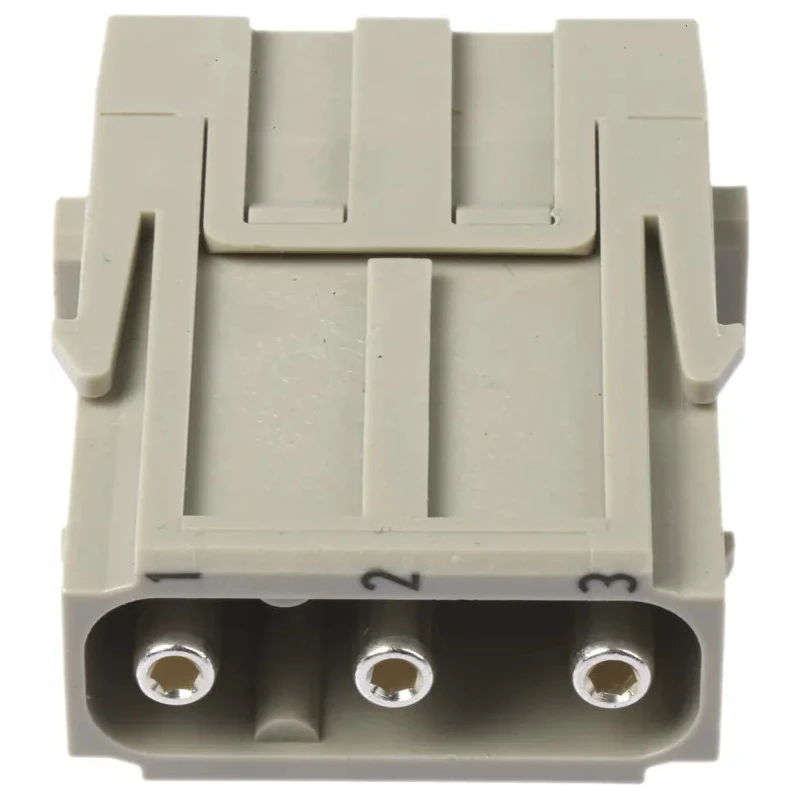

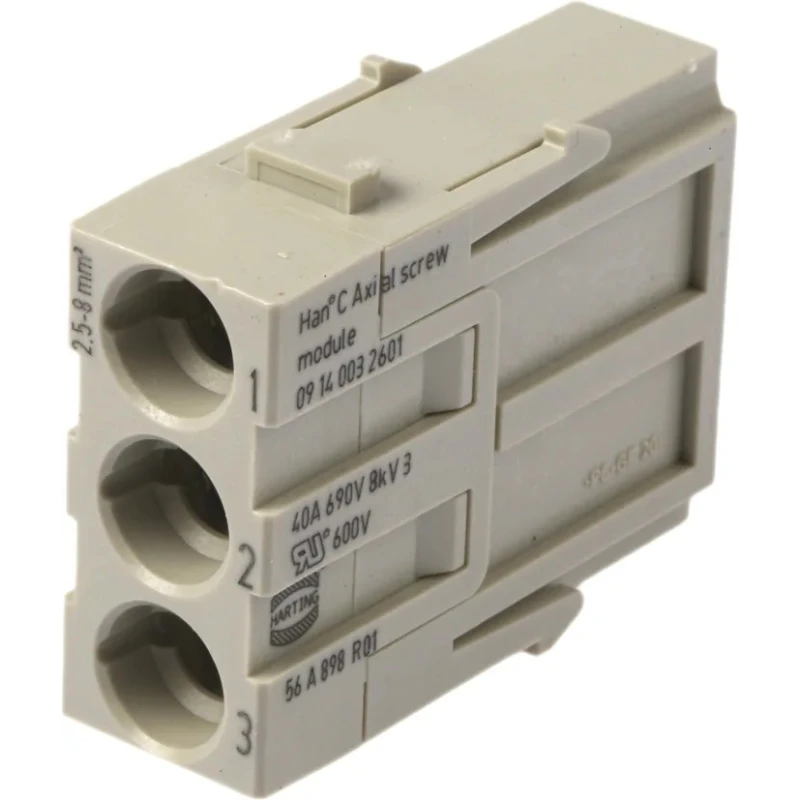

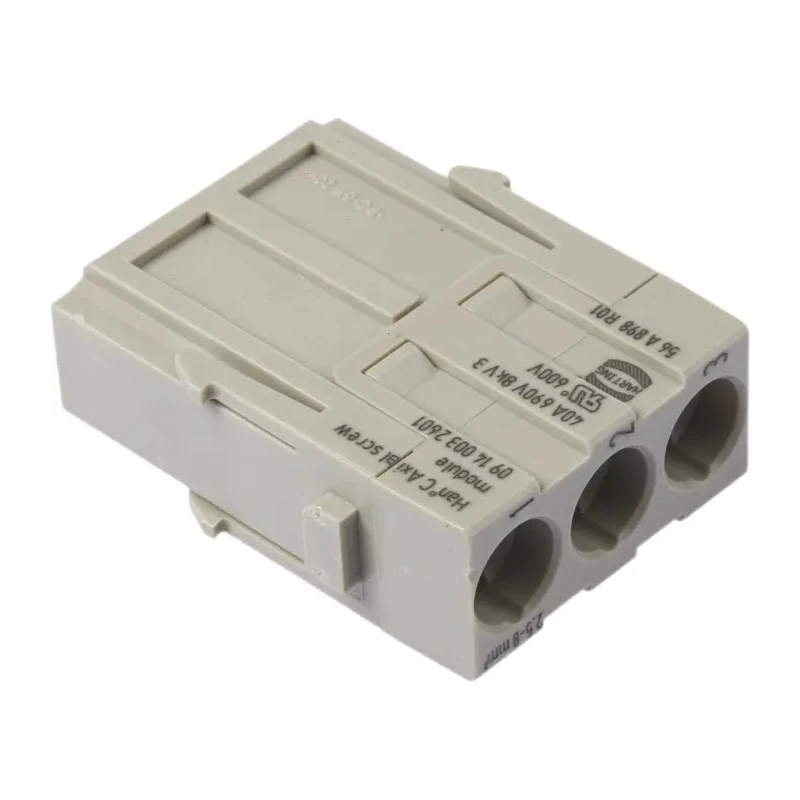

HARTING Heavy Duty Power Connector Module 40A 690V 3 Contacts Male Series 0914 09140032601
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 690V |
| Brand | HARTING |
| Orientation | Straight |
| Mount Type | Cable |
| Contact Material | Copper Alloy |
| Current Rating | 40A |
| Series | 0914 |
| Sub Type | Axial Module |
| Number of Rows | 1 |
| For Use With | Heavy Duty Power Connector |
| Pole Format | 3 |
| Contact Plating | Silver |
| Number of Contacts | 3 |
| Connector Gender | Male |
| Minimum Wire Size mm² | 2.5mm² |
| Maximum Wire Size mm² | 8mm² |
Key Features
- Designed as a Han C axial screw male module with 3 contact points.
- Rated for 40 amperes and 690 volts operating voltage.
- Features copper alloy contacts with silver plating for reliable conductivity.
- Suitable for cable mount with straight orientation connection.
- Supports minimum wire size of 2.5mm² and maximum of 8mm².
- Constructed with robust polycarbonate body for durability.
- Applicable in industrial and electronic power connector assemblies.
Product Description
HARTING 09140032601 is a Heavy Duty Power Connector Module designed for reliable industrial electrical connections, rated at 40 amperes and 690 volts with 3 contacts in a male axial module configuration. This Han C axial screw module features a durable polycarbonate body and uses copper alloy contacts with silver plating to ensure excellent conductivity and long service life.
The connector supports wire sizes ranging from a minimum of 2.5mm² to a maximum of 8mm², making it versatile for various heavy duty cable connections. It mounts onto cables with a straight orientation and fits within the Han Modular series allowing flexible insert configurations within standard Han housings.
Designed to withstand over 500 mating cycles and an operating temperature range from -40°C to +125°C, this module is ideal for demanding industrial, manufacturing, automation, and electronic component assembly environments. No special tooling is required for assembly, permitting efficient installation and maintenance.
The Han Modular system, including this module, caters to diverse customer requirements for power, signal, and pneumatic lines all within a single connector assembly, thus enhancing operational flexibility and reliability.
Provides dependable power connection rated at 40A and 690V. Employs silver-plated copper alloy contacts for corrosion resistance and conductivity. Polycarbonate housing delivers toughness and electrical insulation. Supports straightforward cable mounting with a straight orientation.
Compatible with Han Modular series connectors for flexible system configurations.
This connector module is recommended for use in industrial electrical installations, automation systems, manufacturing equipment, and other applications demanding robust and flexible power connector solutions. Exploring EnvMart’s extensive electronics components category offers complementary connectors and accessories for integrated system design.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This heavy duty power connector module is rated for 40 amperes and 690 volts.
It features a straight orientation and is designed for cable mounting.
The contacts are made of copper alloy and are silver plated for enhanced conductivity and corrosion resistance.
It supports a minimum wire size of 2.5mm² and a maximum wire size of 8mm².
This module has 3 contacts in a male configuration.
The operating temperature range is from -40°C to +125°C.
It is designed to withstand over 500 mating cycles.
No special tooling is required for assembly, allowing for efficient installation and maintenance.
This module belongs to the Han Modular series, specifically the 0914 series.
It is suitable for industrial electrical installations, automation systems, and manufacturing equipment.
The country of origin for this connector module is India.
The connector body is constructed from robust polycarbonate material.
