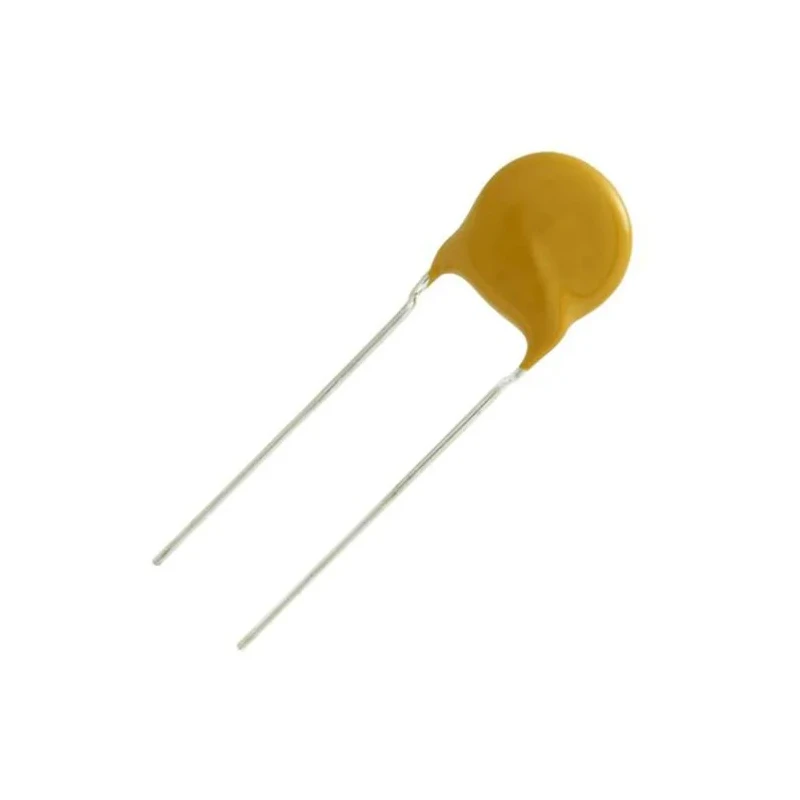

Vishay Single Layer Ceramic Capacitor 10 nF 3 kV DC ±20% Y5V Dielectric Through Hole Radial Lead 564R30GASS10

Vishay 564R30GASS10 Single Layer Ceramic Capacitor is engineered for demanding industrial applications requiring high stability and reliability. This capacitor offers a capacitance of 10 nF and is rated for 3 kV DC voltage, with a tolerance of ±20% using Y5V dielectric material.

Designed as a through hole radial lead component with a disc package form factor, it features a diameter of 18.3 mm and width of 4.7 mm, making it suitable for various circuit designs. The capacitor supports operation in a wide temperature range from -25°C to a maximum of 105°C, ensuring functionality in harsh environmental conditions.

Its low dissipation factor of 0.1% contributes to energy-efficient performance with minimal signal losses. The component complies with RoHS standards, confirming it is free from hazardous substances.

The capacitance stability and reliability of the 564R series are ideal for use in lighting ballasts, switch mode power supplies (SMPS), and other industrial DC applications requiring robust ceramic disc capacitors. Constructed with both sides silver plated and coated with a flame retardant epoxy resin, these capacitors provide fire safety alongside electrical performance.

Package includes a single Vishay 564R30GASS10 capacitor with two pins for straightforward mounting on through hole PCBs. The product is manufactured in the Czech Republic, reflecting high quality and manufacturing excellence.

This capacitor is designed for through hole mounting with radial leads. It features a disc package with a diameter of 18.3 mm and width of 4.7 mm. The device operates safely within a temperature range from -25°C to 105°C.

The dissipation factor is low at 0.1%, ensuring low losses during operation. The capacitor complies with RoHS standards and is rated for high stability applications such as lighting ballasts and SMPS. It is manufactured using flame retardant epoxy resin coating for enhanced safety and reliability.

The capacitor's pin count is 2, supporting standard radial through-hole PCB mounting. It is made in the Czech Republic, assuring quality manufacturing standards.

Ideal for industrial, electronics manufacturing, and maintenance applications requiring reliable passive components. Explore more Single Layer Ceramic Capacitors and electronic components at EnvMart.
