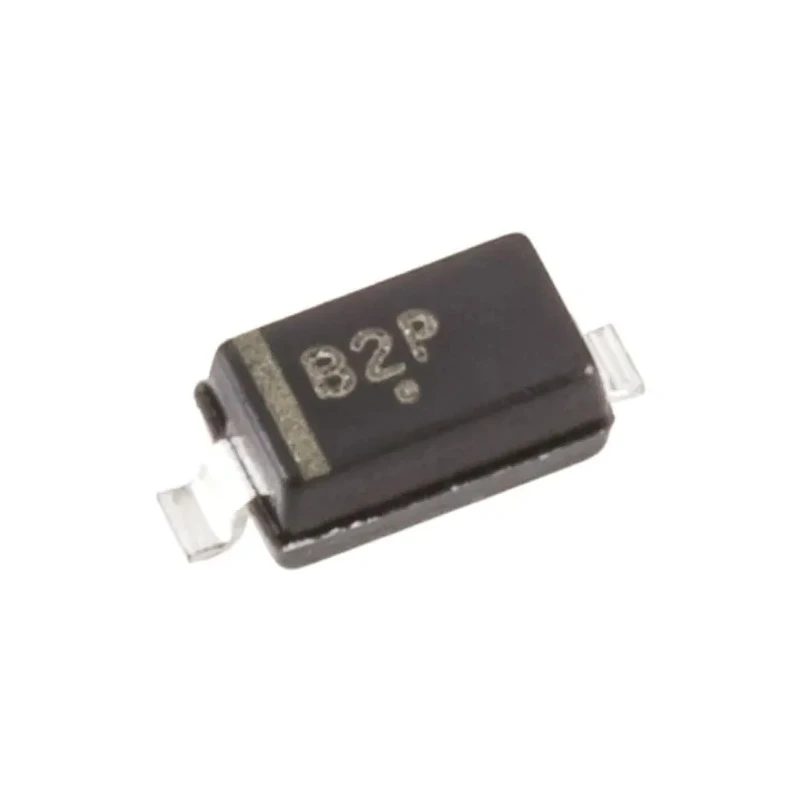

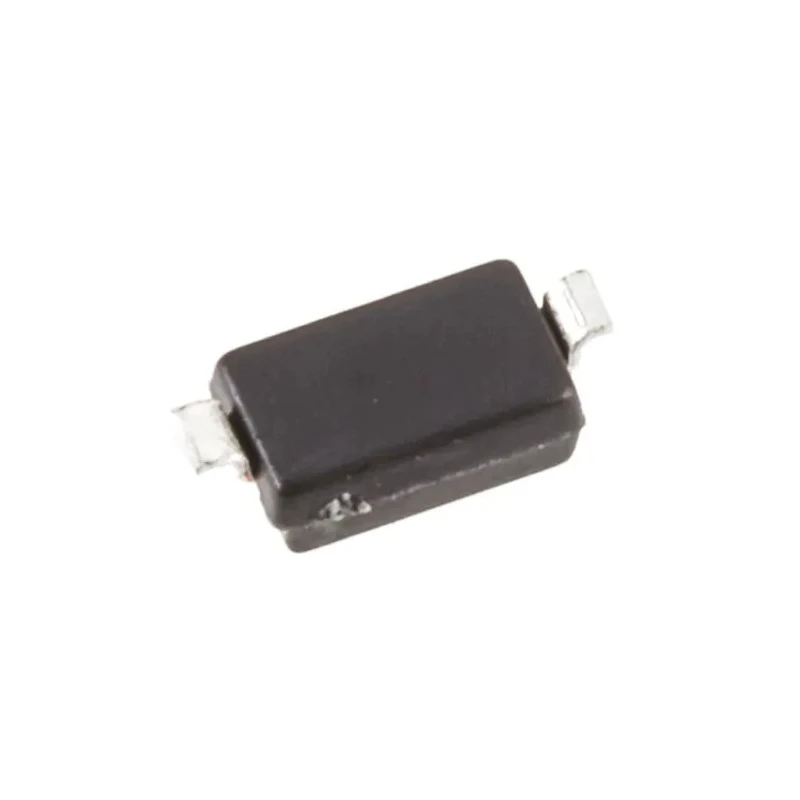

onsemi Schottky Diode 20 V 500 mA SOD-123 Surface Mount Single Rectifier 2-Pin MBR0520LT1G
Specifications
| Country of Origin | India |
|---|---|
| Brand | onsemi |
| Height | 1.12mm |
| Length | 2.69mm |
| Model | MBR0520LT1G |
| Width | 1.6mm |
| Mount Type | Surface |
| Maximum Operating Temperature | 125°C |
| Package Type | SOD-123 |
| Minimum Operating Temperature | -65°C |
| Pin Count | 2 |
| Automotive Standard | AEC-Q101 |
| Maximum Continuous Forward Current If | 500mA |
| Peak Reverse Repetitive Voltage Vrrm | 20V |
| Diode Configuration | Single |
| Rectifier Type | Schottky |
| Peak Reverse Current Ir | 250μA |
| Peak Non-Repetitive Forward Surge Current Ifsm | 5.5A |
| Maximum Forward Voltage Vf | 385mV |
Key Features
- Compact Schottky barrier rectifier designed for efficient low voltage, high frequency applications.
- Maximum continuous forward current of 500 mA ensures stable operation.
- Peak reverse voltage rated at 20 V for secure circuit protection.
- Low forward voltage of 385 mV reduces power loss during operation.
- Surface mount SOD-123 package supports automated assembly processes.
- Corrosion-resistant external surfaces, suitable for demanding environments.
- Wide operating temperature range from -65°C to 125°C.
- Stress protection guard ring and cathode band for polarity identification.
Product Description
The onsemi MBR0520LT1G is a Schottky barrier rectifier diode engineered for reliable operation in power rectification and protection tasks. Featuring a maximum continuous forward current of 500 mA and peak reverse repetitive voltage of 20 V, this diode uses Schottky metal barrier technology to optimize forward voltage drop and reduce reverse leakage.
Its compact SOD-123 surface mount package is ideal for automated PCB assembly in industrial, electronic, and automotive applications. The device’s corrosion-resistant outer surfaces further ensure durability under challenging conditions. With a maximum forward voltage (Vf) of 385 mV, it minimizes power losses, making it suitable for high-frequency, low-voltage circuit designs.
Designed with a stress protection guard ring, the MBR0520LT1G offers enhanced reliability against voltage and current spikes. Its cathode band allows for simple polarity identification during installation. The diode supports single configuration rectification and delivers robust surge handling, with a peak non-repetitive forward surge current of 5.5 A.
This product is automotive-standard AEC-Q101 compliant, expanding its use in automotive electronics, industrial controls, and consumer equipment. Its wide operating temperature from -65°C to 125°C allows for use in demanding environments and varying climates.
Typical applications include switched mode power supplies, protection circuits, voltage rectification, and high-speed logic in industrial manufacturing, laboratory electronics, automotive modules, and robotics.
Explore more Schottky Diodes from the onsemi brand in the EnvMart catalogue for specialized rectification needs across electronics and industrial sectors.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum continuous forward current of this model is 500 mA, ensuring stable operation in various applications.
The MBR0520LT1G is packaged in a SOD-123 surface mount format, which supports automated assembly processes.
It operates within a wide temperature range from -65°C to 125°C, making it suitable for demanding environments.
The maximum forward voltage drop (Vf) for this model is 385 mV, which helps to minimize power loss during operation.
It can handle a peak non-repetitive forward surge current of 5.5 A, providing robust surge handling capabilities.
This model is compliant with the AEC-Q101 automotive standard, making it suitable for automotive electronics applications.
This diode features a pin count of 2, designed for single configuration rectification.
The dimensions of this model are 2.69 mm in length, 1.6 mm in width, and 1.12 mm in height.
Typical applications include switched mode power supplies, protection circuits, and high-speed logic in various electronic systems.
Yes, it includes a cathode band for simple polarity identification during installation, enhancing usability.
