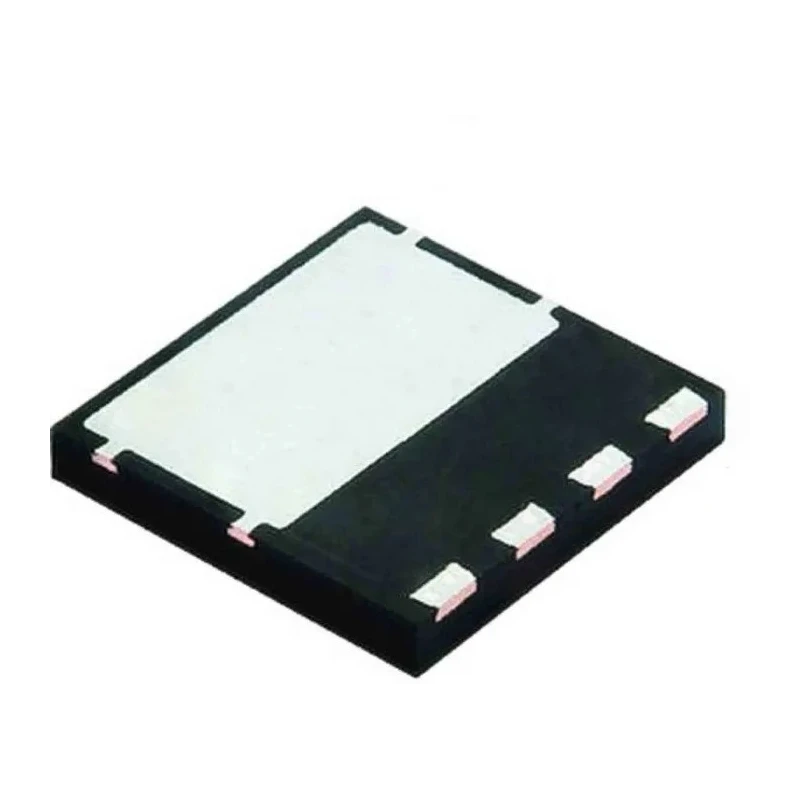

Vishay EF Series N-Channel MOSFET 16A 650V PowerPAK 8x8 SIHH186N60EF-T1GE3
Specifications
| Country of Origin | India |
|---|---|
| Brand | Vishay |
| Height | 8.1mm |
| Length | 8.1mm |
| Model | SIHH186N60EF-T1GE3 |
| Width | 1.05mm |
| Mount Type | Surface |
| Series | EF |
| Maximum Operating Temperature | 150°C |
| Package Type | PowerPAK 8 x 8 |
| Minimum Operating Temperature | -55°C |
| Pin Count | 4 |
| Channel Type | Type N |
| Maximum Continuous Drain Current Id | 16A |
| Maximum Drain Source Voltage Vds | 650V |
| Maximum Drain Source Resistance Rds | 193mΩ |
| Channel Mode | Enhancement |
| Maximum Power Dissipation Pd | 114W |
| Typical Gate Charge Qg @ Vgs | 32nC |
| Maximum Gate Source Voltage Vgs | 30V |
| Forward Voltage Vf | 1.2V |
Key Features
- Operates as an N-channel MOSFET with maximum continuous drain current of 16A.
- Rated for up to 650V drain-source voltage for high-voltage applications.
- Surface mount PowerPAK 8x8 package enables efficient thermal dissipation.
- Enhancement mode operation provides fast switching and reliable control.
- Utilizes fourth generation E series technology for reduced switching losses.
- Low drain-source resistance of 193mΩ ensures high efficiency.
- Maximum power dissipation of 114W supports heavy-duty operation.
- Wide operating temperature range from -55°C to 150°C.
Product Description
The Vishay SIHH186N60EF-T1GE3 is a high-performance EF series N-channel MOSFET specifically designed for power management, switching, and conversion applications. Offering a maximum continuous drain current of 16A and a maximum drain-source voltage of 650V, it is well suited for industrial and demanding electronic systems that require high voltage and current handling.
This device features a PowerPAK 8x8 surface mount package, optimizing both thermal efficiency and PCB real estate. The EF series implements fourth-generation E series technology, ensuring low figure-of-merit and reduced effective capacitance - critical for minimizing switching and conduction losses in fast-reacting control systems.
Operating in enhancement mode, the SIHH186N60EF-T1GE3 delivers reliable performance with low drain-source resistance (193mΩ). Its maximum power dissipation capacity reaches 114W, allowing stable operation even during peak loads. Designers benefit from wide operating temperature boundaries, ranging from -55°C up to 150°C, which makes it suitable for harsh industrial environments, power supplies, motor drives, renewable energy inverter circuits, and similar demanding use cases.
Further technical highlights include a typical gate charge of 32nC at Vgs, maximum gate-source voltage of 30V, and forward voltage Vf of 1.2V. The MOSFET maintains its integrity under avalanche energy events (UIS rated), enhancing reliability for applications encountering over-voltage or pulse loading. With a standard 4-pin configuration and compliance to surface-mount installation practices, engineers can integrate it seamlessly into automated production lines.
The device's robust performance and advanced construction allow its use in industrial automation, motor controls, high-voltage DC switching, commercial power systems, and advanced energy management solutions. For more Vishay EF series MOSFET options, explore the MOSFETs category on EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum continuous drain current of this model is 16A.
It is rated for a maximum drain-source voltage of 650V.
This MOSFET comes in a PowerPAK 8 x 8 surface mount package.
The typical gate charge at Vgs is 32nC.
It operates within a temperature range of -55°C to 150°C.
The maximum power dissipation capacity of this unit is 114W.
The maximum drain-source resistance is 193mΩ.
It has a standard 4-pin configuration.
The maximum gate-source voltage for this model is 30V.
This device is an N-channel MOSFET.
It is suitable for applications in industrial automation, motor controls, high-voltage DC switching, and commercial power systems.
The EF series utilizes fourth-generation E series technology to reduce switching losses.
