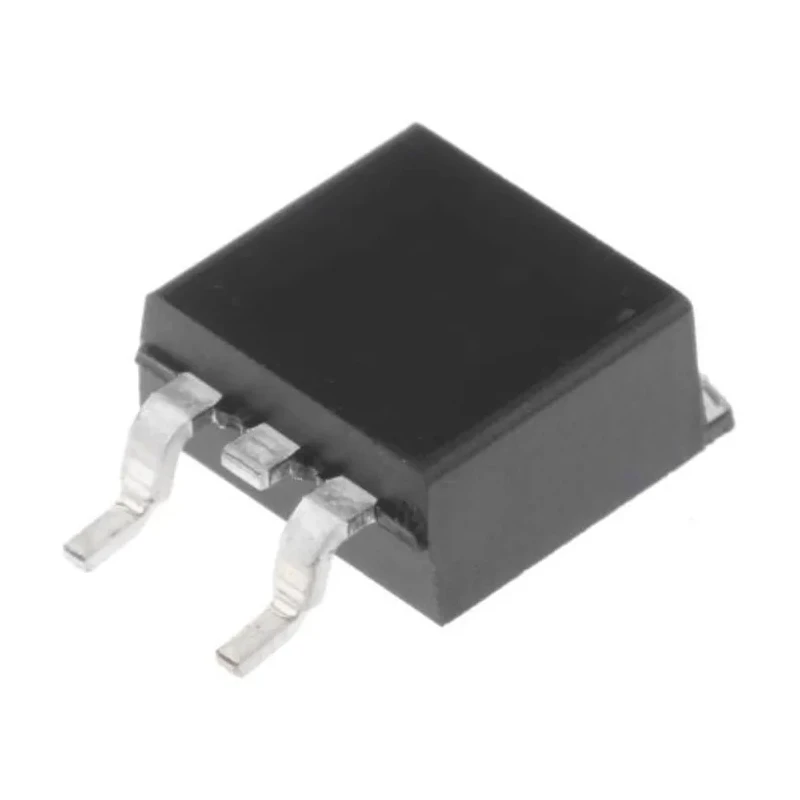

onsemi Type N-Channel MOSFET 24A 650V Enhancement 3-Pin TO-263 Surface Mount NVB150N65S3F
Specifications
| Country of Origin | India |
|---|---|
| Brand | onsemi |
| Height | 4.58mm |
| Length | 10.67mm |
| Model | NVB150N65S3F |
| Width | 9.65mm |
| Mount Type | Surface |
| Maximum Operating Temperature | 150°C |
| Package Type | TO-263 |
| Minimum Operating Temperature | -55°C |
| Pin Count | 3 |
| Automotive Standard | AEC-Q101 |
| Channel Type | Type N |
| Maximum Continuous Drain Current Id | 24A |
| Maximum Drain Source Voltage Vds | 650V |
| Maximum Drain Source Resistance Rds | 150mΩ |
| Channel Mode | Enhancement |
| Maximum Power Dissipation Pd | 192W |
| Typical Gate Charge Qg @ Vgs | 43nC |
| Maximum Gate Source Voltage Vgs | 30V |
| Forward Voltage Vf | 1.3V |
Key Features
- Advanced SUPERFET III N-channel MOSFET for power switching and automotive applications.
- Delivers 24A maximum continuous drain current for robust electrical performance.
- 650V maximum drain-source voltage enables compatibility with high-voltage systems.
- TO-263 3-pin surface mount package optimizes PCB integration and thermal dissipation.
- Enhancement mode with ultra low gate charge and low effective output capacitance.
- Typical gate charge of 43nC and maximum drain-source resistance of 150mΩ.
- Supports maximum power dissipation up to 192W for demanding loads.
- Automotive-grade, compliant with AEC-Q101 standard for reliability in automotive environments.
Product Description
onsemi NVB150N65S3F is a high-performance Type N-Channel MOSFET engineered for demanding power systems and automotive electronics. This device features a 24A maximum continuous drain current and a 650V drain-source voltage rating, making it suitable for applications requiring high efficiency and resilience against voltage stress.
Based on advanced SUPERFET III technology, NVB150N65S3F offers outstanding low on-resistance and ultra-low gate charge, reducing conduction losses and improving switching performance. The enhancement-mode channel ensures precise electronic control, supporting miniaturized designs and higher operational efficiency. With a typical gate charge of 43nC and a drain-source resistance as low as 150mΩ, the MOSFET is optimized for fast switching and reliable performance in industrial and automotive power electronics.
The device is built in a TO-263 3-pin package, featuring a surface-mount design that facilitates robust PCB integration and efficient heat dissipation. It operates across a wide temperature range, from -55°C to 150°C, ensuring stable functionality in harsh environments. The maximum power dissipation of 192W meets power requirements in automotive on-board chargers and DC/DC converters for hybrid electric vehicles.
NVB150N65S3F is compliant with the automotive AEC-Q101 standard, providing enhanced reliability for on-board vehicle systems. The optimized reverse recovery performance of the body diode further improves system reliability and reduces the need for additional components. The device also maintains Pb-free status and meets restrictive environmental requirements for modern electronic designs.
Typical applications include automotive power conversion, on-board charging for electric vehicles, industrial switch-mode power supplies, and other high-voltage power management scenarios. The MOSFET is highly suited to systems targeting miniaturization, high frequency operation, and superior switching efficiency.
Explore additional MOSFET options and electronics semiconductors in the EnvMart catalogue for tailored solutions across industrial, automotive, power electronics, and laboratory use cases.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum continuous drain current for this model is 24A.
This MOSFET has a maximum drain-source voltage rating of 650V.
The typical gate charge for this model is 43nC.
It comes in a TO-263 package type with a pin count of 3.
The maximum power dissipation for this MOSFET is 192W.
The operating temperature range for the NVB150N65S3F is from -55°C to 150°C.
The maximum gate-source voltage for this model is 30V.
This model is compliant with the AEC-Q101 automotive standard.
The maximum drain-source resistance is 150mΩ.
This device features a Type N channel.
The dimensions of the NVB150N65S3F are 10.67mm in length, 9.65mm in width, and 4.58mm in height.
