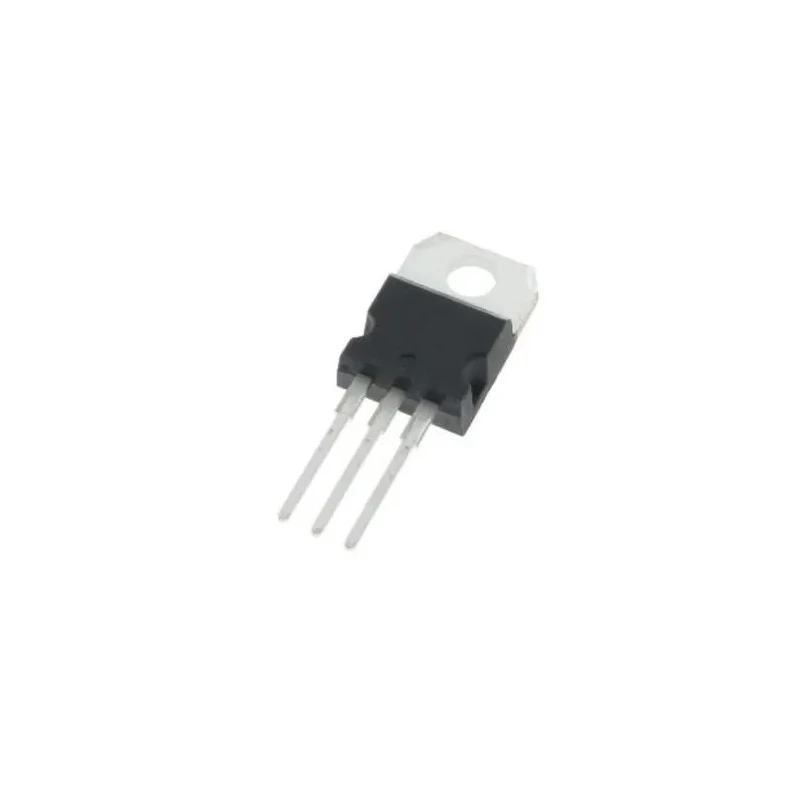

onsemi Transistor, 7 A NPN, 70 V, 3-Pin TO-220, Through Hole Mount 2N6292G
Specifications
| Country of Origin | India |
|---|---|
| Brand | onsemi |
| Height | 30.02mm |
| Length | 10.53mm |
| Model | 2N6292G |
| Width | 4.83mm |
| Mount Type | Through Hole |
| Series | 2N6292 |
| Maximum Operating Temperature | 150°C |
| Package Type | TO-220 |
| Minimum Operating Temperature | -65°C |
| Pin Count | 3 |
| Maximum Collector Emitter Voltage Vceo | 70V |
| Minimum DC Current Gain hFE | 30 |
| Transistor Polarity | NPN |
| Maximum Emitter Base Voltage VEBO | 5V |
| Maximum Collector Base Voltage VCBO | 80V |
| Maximum Power Dissipation Pd | 40W |
| Maximum DC Collector Current Idc | 7A |
| Transistor Configuration | Single |
| Maximum Transition Frequency ft | 1MHz |
Key Features
- Designed for general-purpose amplifier and switching applications.
- Features high DC current gain and high current gain bandwidth product.
- Compact TO-220 package with through hole mounting.
- Maximum power dissipation up to 40 Watts.
- Operating temperature ranges from -65°C to 150°C.
- NPN transistor configuration with single transistor polarity.
- Maximum collector base voltage 80 V and maximum emitter base voltage 5 V.
- Maximum transition frequency is 1 MHz.
Product Description
onsemi 2N6292G Bipolar Transistor is a high-performance device designed for general-purpose amplifier and switching applications in industrial and commercial electronics. It has a maximum DC collector current of 7 amperes and can withstand collector-emitter voltages up to 70 volts. The device is enclosed in a compact 3-pin TO-220 package, ideal for through hole mounting on circuit boards.
This transistor features a high DC current gain and a high current gain bandwidth product, providing efficient amplification. It offers maximum power dissipation of 40 watts and operates reliably within a temperature range of -65°C to 150°C, making it suitable for demanding operating environments.
The NPN transistor polarity and single transistor configuration provide versatility for a variety of circuit designs. Its electrical limits include a maximum collector base voltage of 80 V, maximum emitter base voltage of 5 V, and a transition frequency up to 1 MHz.
Physical dimensions are Length 10.53 mm, Width 4.83 mm, and Height 30.02 mm, ensuring compatibility with standard electronic assemblies. It is an ideal choice for electronic manufacturing, power management circuits, and industrial control systems.
Designed for general-purpose amplifier and switching applications. Compact TO-220 3-pin packaging with through hole mount. High DC current gain and current gain bandwidth product. Supports up to 7A collector current and 70V voltage rating.
Operating temperature range from -65°C to 150°C. Maximum power dissipation of 40W ensures robust performance. NPN single transistor configuration for broad circuit compatibility. Maximum collector base voltage 80V and emitter base voltage 5V.
Transition frequency of 1 MHz suitable for switching applications. Ideal for industrial, electronics manufacturing, and power control systems. Explore the full range of onsemi Bipolar Transistors at EnvMart for quality semiconductor components tailored to your electronic and industrial needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum DC collector current for the 2N6292G transistor is 7 amperes.
This model has a maximum power dissipation rating of 40 watts.
The dimensions of the TO-220 package are 10.53 mm in length, 4.83 mm in width, and 30.02 mm in height.
The operating temperature range for the 2N6292G transistor is from -65°C to 150°C.
The maximum collector-emitter voltage (Vceo) for this unit is 70 volts.
The 2N6292G uses an NPN transistor configuration with a single transistor polarity.
The maximum transition frequency for this transistor is 1 MHz.
The maximum collector base voltage (VCBO) rating is 80 volts.
The minimum DC current gain (hFE) for this model is 30.
The 2N6292G supports through hole mounting.
This transistor is designed for general-purpose amplifier and switching applications in industrial and commercial electronics.
The 2N6292G transistor is manufactured in India.
