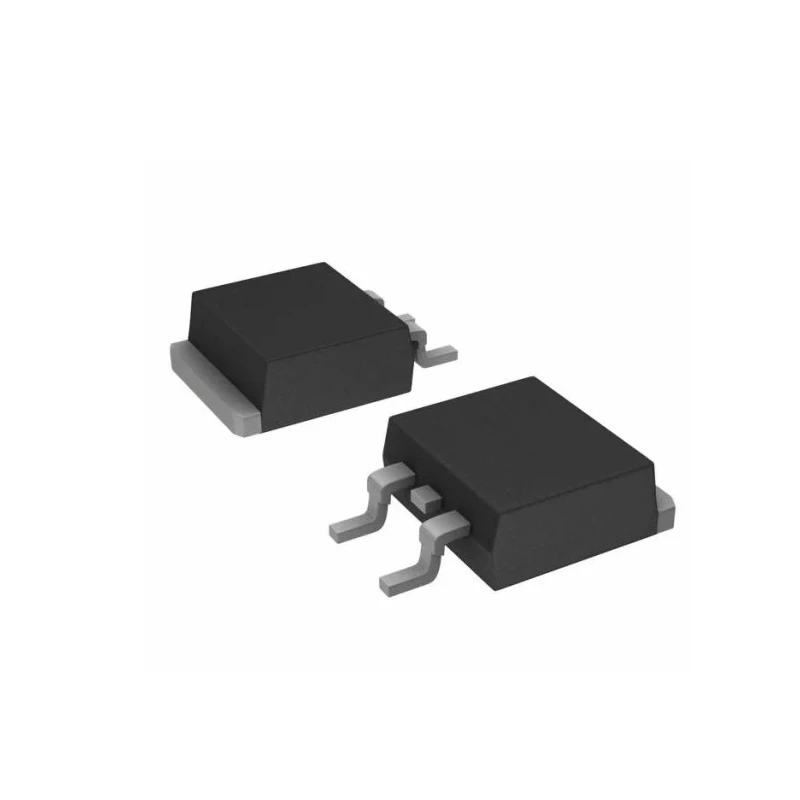

Vishay N-Channel Power MOSFET 10A 60V Through-Hole & Surface Mount IRLZ14SPBF
Specifications
| Country of Origin | China |
|---|---|
| Brand | Vishay |
| Model | IRLZ14SPBF |
| Mount Type | Through Hole, Surface |
| Maximum Operating Temperature | 175°C |
| Minimum Operating Temperature | -55°C |
| Number of Elements per Chip | 1 |
| Channel Type | Type N |
| Maximum Continuous Drain Current Id | 10A |
| Maximum Drain Source Voltage Vds | 60V |
| Maximum Drain Source Resistance Rds | 0.2Ω |
| Maximum Power Dissipation Pd | 43W |
| Typical Gate Charge Qg @ Vgs | 8.4nC |
| Maximum Gate Source Voltage Vgs | 10V |
| Forward Voltage Vf | 1.6V |
| Transistor Configuration | Single |
Key Features
- Features advanced process technology for high performance and efficiency.
- Offers a maximum continuous drain current of 10A and drain source voltage rating of 60V.
- Low drain source resistance of just 0.2Ω ensures minimal power loss.
- Flexible mounting configuration supports both through-hole and surface mount applications.
- Capable of operating in environments with temperatures up to 175°C.
- RoHS compliant and IEC 61249-2-21 approved for reliability and environmental safety.
- Designed for power management, switching, and industrial semiconductor applications.
Product Description
Vishay IRLZ14SPBF is a high-quality N-channel power MOSFET engineered for demanding power switching and management tasks. It offers a maximum drain current (Id) of 10 amperes and supports a drain-source voltage (Vds) up to 60 volts. This MOSFET integrates advanced process technology to deliver improved efficiency and operational reliability in power electronics circuits.
The IRLZ14SPBF is suitable for both through-hole and surface-mount configurations, supporting versatile PCB assembly requirements. Its low drain-source resistance of 0.2 ohms ensures reduced energy loss, making it ideal where power efficiency is essential. The gate-source voltage is rated at 10V, and the device can dissipate up to 43 watts, supporting robust power handling under various load conditions.

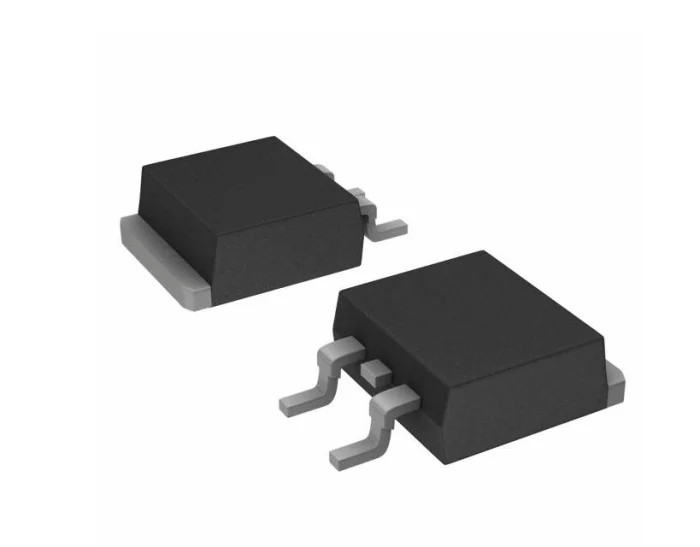

The MOSFET is housed in a D2PAK (TO-263) package, offering strong thermal performance and ease of integration into compact designs. Rated for operating temperatures from -55°C up to 175°C, it supports high-temperature industrial environments and continuous heavy-duty operation. With a typical gate charge of 8.4nC, the IRLZ14SPBF delivers fast switching speeds, suitable for applications like motor control, power supplies, and switching converters.
Single transistor configuration and a forward voltage of 1.6V further align it for efficient internal operation. It conforms to RoHS 2002/95/EC and IEC 61249-2-21 standards, providing assurance of compliance and environmental safety. The MOSFET has one element per chip and is not classified under automotive standards.
Engineers and designers can utilize this MOSFET in various industrial, electronics, and power semiconductor projects, including power management, industrial automation, control systems, and load switching. Its flexible mounting options, high reliability, and robust ratings make it a staple component in industrial and commercial builds.
Browse more Vishay semiconductor components and MOSFET solutions in the Electronics & Electricals category for reliable power management and switching devices from EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum continuous drain current of the IRLZ14SPBF is 10A.
This MOSFET has a drain-source voltage rating of 60V.
The maximum operating temperature for this model is 175°C.
It supports both through-hole and surface mount configurations.
The maximum drain-source resistance is 0.2Ω.
The typical gate charge is 8.4nC at a gate-source voltage of 10V.
The maximum power dissipation for the IRLZ14SPBF is 43W.
The forward voltage is rated at 1.6V.
The minimum operating temperature is -55°C.
The IRLZ14SPBF is configured as a single transistor.
Yes, the IRLZ14SPBF is RoHS compliant and meets IEC 61249-2-21 standards.
This MOSFET is suitable for power management, industrial automation, control systems, and load switching applications.
