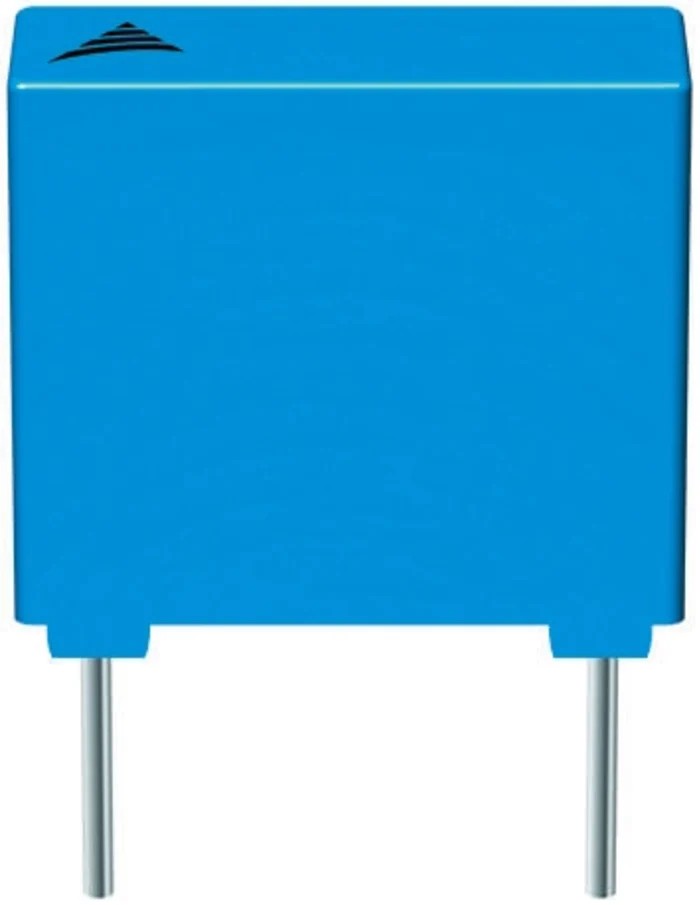

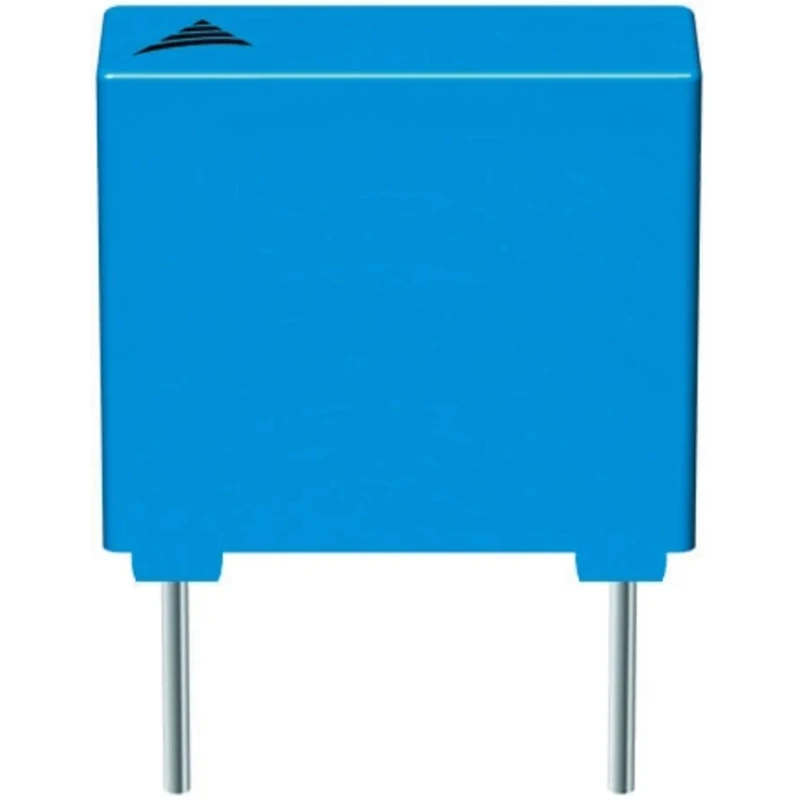

TDK B32024 Film Capacitor 470 nF 300V AC 300V DC Through Hole Mount B32024A3474M000

The TDK B32024A3474M000 is a high-quality film capacitor with a capacitance of 470 nanofarads, designed for applications requiring both 300V AC and 300V DC voltage ratings. It employs polypropylene construction enclosed in a UL 94 V-0 rated plastic case coupled with epoxy resin sealing, providing excellent safety and durability.

Engineered for through-hole mounting with a lead pitch of 27.5mm and lead diameter of 0.8mm, this capacitor features compact dimensions of 31.5mm length, 24.5mm height, and 15mm width, making it suitable for space-constrained electronic assemblies.

Its operating temperature range is from -40°C to 110°C, enabling reliable performance in harsh environmental conditions. The capacitor showcases superior self-healing properties and high voltage endurance, appropriate for interference suppression and line-to-ground applications classified under Y2 suppression class.

Certified to meet UL and CSA standards, the B32024 series supports applications where safety and reliability are paramount. The two-pin, through-hole design ensures secure placement on printed circuit boards.

Typical usage includes electronic components in power supplies, consumer electronics, and industrial equipment where capacitive filtering and noise reduction are critical. Polypropylene construction with a UL 94 V-0 plastic case and epoxy resin sealing.

Compact dimensions measuring 31.5mm length, 24.5mm height, and 15mm width. Rated AC and DC voltage of 300 volts suitable for interference suppression and line-to-ground applications. Lead pitch of 27.5mm and lead diameter of 0.8mm for secure through-hole mounting.

Maximum operating temperature up to 110°C and operating temperature range from -40°C to 110°C. High voltage capability with good self-healing properties ensuring longevity and reliability. Complies with UL and CSA standards for safety and quality assurance.

Pin count of 2 and suppression class Y2 for electromagnetic interference reduction.

This TDK Film Capacitor is ideal for industrial, manufacturing, electronic assembly, power supply design, and HVAC control systems. Browse EnvMart for more electronic components and specialized capacitors.
