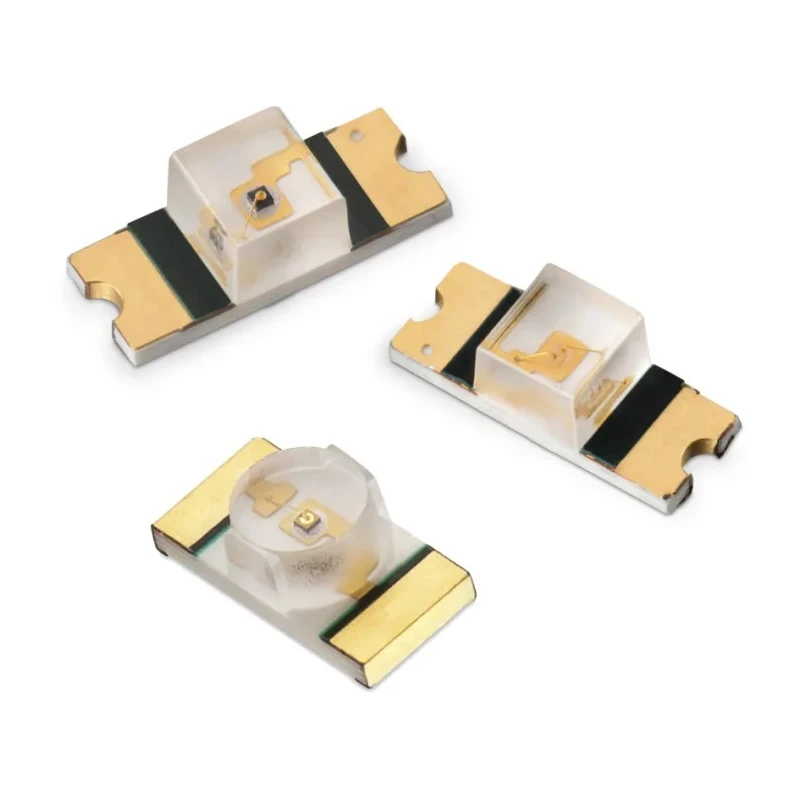

Wurth Elektronik 2.4 V Amber LED 3216 Surface Mount Dome Lens WL-SMRW 156120AS82500
Specifications
| Country of Origin | Taiwan |
|---|---|
| Brand | Wurth Elektronik |
| Model | 156120AS82500 |
| Packaging | Tape & Reel |
| Mount Type | Surface |
| Series | WL-SMRW |
| Maximum forward current | 40mA |
| Viewing angle | 20 ° |
| Package Type | 3216 |
| Standards/Approvals | RoHS |
| LED Colour | Amber |
| Dominant Wavelength | 605nm |
| Forward Voltage | 2.4V |
| Number of Pins | 2 |
| LED Luminosity | 2200 mcd |
| Maximum Power Dissipation | 48mW |
| Lens Dimensions | 3.2 x 1.6 x 1.85 mm |
| Lens Shape | Dome |
Key Features
- This LED features a 2.4 V forward voltage with a maximum forward current of 40 mA.
- Compact 3216 package type with surface mount for efficient PCB integration.
- Narrow 20-degree viewing angle offers focused amber light output.
- Dome-shaped clear lens ensures exceptional brightness and 2200 mcd luminosity.
- Low power consumption with maximum power dissipation of 48 mW.
- Lens dimensions measure 3.2 x 1.6 x 1.85 mm, fitting small cut-out holes in PCBs.
- Ideal for front panel indicators, keypad backlighting, and symbol switch illumination.
- Suitable for use in networking, instrumentation, fitness wearables, medical, and audio-video equipment.
Product Description
Wurth Elektronik 156120AS82500 Amber LED 3216 Surface Mount Dome Lens WL-SMRW operates at 2.4 volts forward voltage and supports a maximum forward current of 40 mA with power dissipation of 48 mW. This LED is engineered to provide high brightness in a compact 3216 package, optimized for automatic placement on printed circuit boards in restricted spaces.
The device features a dome-shaped clear lens with dimensions of 3.2 x 1.6 x 1.85 millimeters and offers a narrow 20-degree viewing angle. Luminosity of 2200 mcd ensures excellent visibility in lighting indicators.
This amber LED is well-suited for various industrial and commercial applications including front panel indicators, LCD backlighting, keypad backlighting, symbol and switch button illumination, messenger boards, networking and telecommunications, mobile devices, instrumentation, fitness wearables, audio and video equipment, and medical healthcare devices.
Its small package size allows light emission through PCB cut-out holes, making it ideal for compact electronics requiring bright, focused illumination. The component is RoHS compliant, ensuring adherence to environmental standards.
This LED features a 2.4 V forward voltage with a maximum forward current of 40 mA. Compact 3216 package type with surface mount for efficient PCB integration. Narrow 20-degree viewing angle offers focused amber light output.
Dome-shaped clear lens ensures exceptional brightness and 2200 mcd luminosity. Low power consumption with maximum power dissipation of 48 mW. Lens dimensions measure 3.2 x 1.6 x 1.85 mm. RoHS compliant for environmental safety.
Manufactured in Taiwan, Province Of China.
This product fits various electronics manufacturing sectors and laboratory applications, including industrial automation indicator lighting. Browse similar LEDs and Wurth Elektronik components on EnvMart for comprehensive solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The forward voltage of this LED is 2.4 V.
This model supports a maximum forward current of 40 mA.
The lens dimensions measure 3.2 x 1.6 x 1.85 mm.
It has a luminosity of 2200 mcd.
This LED comes in a compact 3216 package type designed for surface mount.
The viewing angle is a narrow 20 degrees, providing focused light output.
The maximum power dissipation is 48 mW.
Yes, this LED is RoHS compliant, ensuring adherence to environmental standards.
It is suitable for front panel indicators, keypad backlighting, and symbol switch illumination, among others.
The dominant wavelength is 605 nm.
This LED has 2 pins.
This model uses surface mounting for efficient PCB integration.
