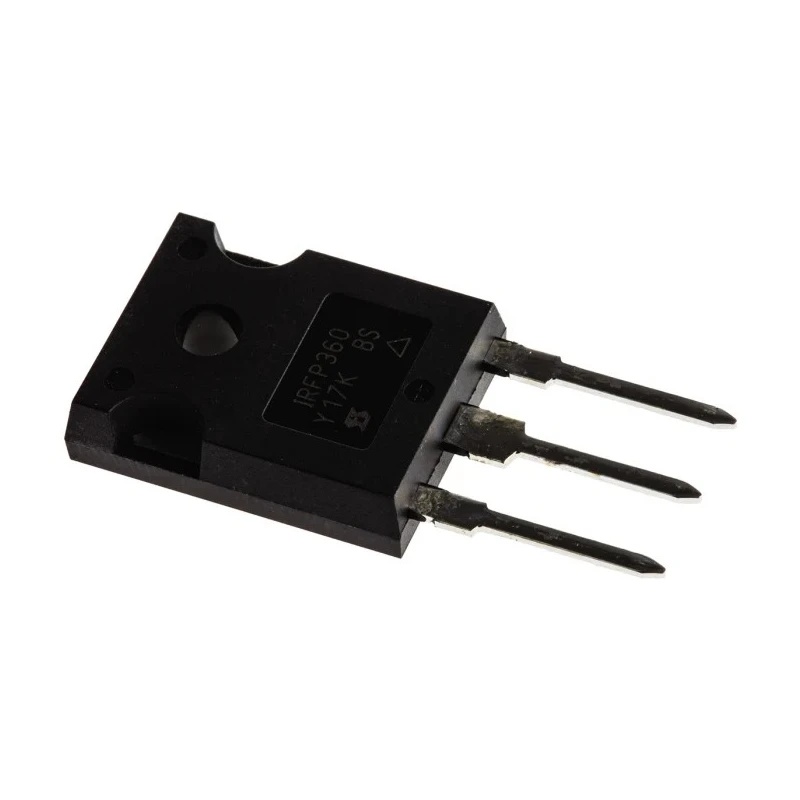

Vishay N-Channel Power MOSFET, 23 A, 400 V Enhancement, 3-Pin TO-247AC IRFP360PBF

Vishay IRFP360PBF is a high-voltage, N-channel power MOSFET optimized for industrial power electronic circuits requiring reliable, efficient switching performance. The transistor supports continuous drain currents up to 23 A and blocking voltages up to 400 V, making it suitable for demanding switching power supplies, motor drive circuits, inverters, and power management in industrial automation.

The device employs an enhancement-mode channel and features a low on-resistance of 200 milliohms, which minimizes conduction losses and improves thermal performance. Its maximum power dissipation rating of 280 watts allows operation under heavy load conditions with adequate cooling. The TO-247AC package facilitates straightforward through-hole installation and bolted heatsink mounting for effective thermal management.

Designed for harsh industrial environments, the IRFP360PBF operates between -55°C and 150°C ambient temperature, ensuring durability and stability. It tolerates gate-source voltages up to ±20 V, conforming to common MOSFET gate drive standards. The typical gate charge of 210 nC offers a balanced tradeoff between switching speed and gate drive requirements, enhancing efficiency in switching applications.

Common uses include switching power supplies in industrial equipment, motor controllers for high-voltage motors, inverter topologies, and high-power DC-DC converters. The robust construction and through-hole package make it ideal for applications demanding reliable mounting and thermal dissipation.

Maximum continuous drain current: 23 A for steady high-current operation. Voltage blocking capability up to 400 V suited for industrial power electronics. High power dissipation rating of 280 W for heavy-duty performance.

Low on-resistance of 200 mΩ reduces conduction losses and heat generation. Gate threshold and charge optimized for balance of speed and control. Wide ambient operating temperature range supports use in harsh conditions. Through-hole TO-247AC package facilitates mounting and heat sinking.

Gate-source voltage tolerance ±20 V for standard drive circuits.

This Vishay Power MOSFET is an essential component for designers seeking rugged, high-performance switching transistors suitable for diverse industrial and commercial power applications. Explore more Vishay semiconductor products and Power MOSFETs on EnvMart to select the right component for your designs.
