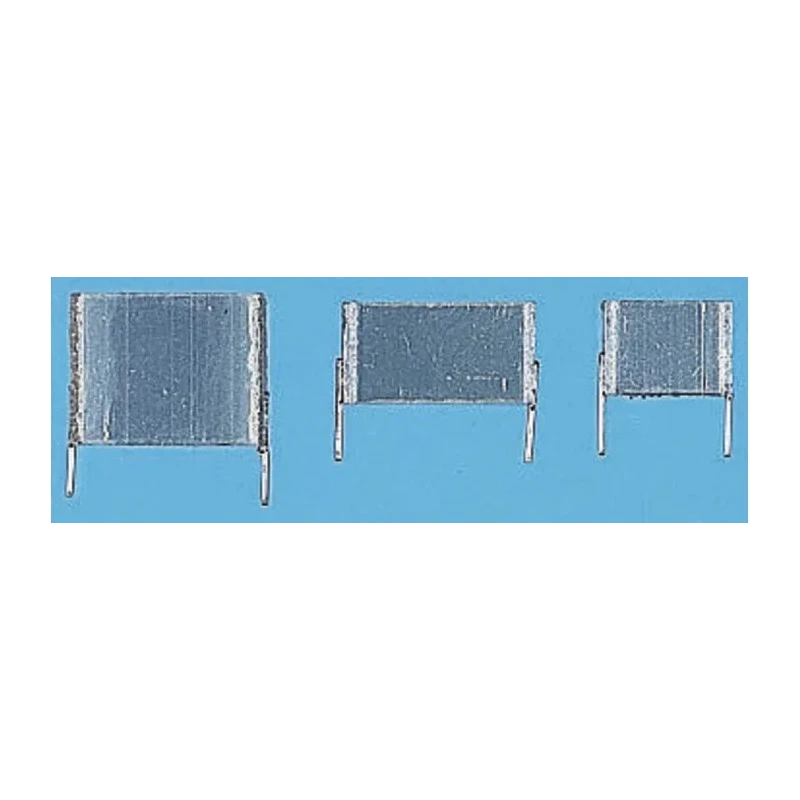

TDK B32560 Film Capacitor 150nF 63V AC 100V DC Through Hole 2-Pin Metallised Polyester Film B32560J1154K000

TDK B32560J1154K000 film capacitor is a metallised polyester film type capacitor providing 150nF capacitance with voltage ratings of 63V AC and 100V DC. It features a through hole mount type with two pins spaced at 7.5mm pitch for secure PCB installation.

This capacitor is uncoated, making it necessary to ensure proper creepage and clearance distances in designs to meet safety and performance requirements. It operates reliably up to a maximum temperature of 100 degrees Celsius.

The compact size of 9mm length, 2.5mm width, and 4.7mm height allows it to be used in space-constrained electronic assemblies. Its 0.5mm lead diameter supports ease of soldering and mechanical stability.

Compliant with RoHS standards, this capacitor is suitable for industrial, consumer electronics, and lamp ballast circuit applications, helping improve energy efficiency in lighting products.

Its B32560 series designation indicates performance consistency within TDK's product portfolio. The device's pin count of 2 is standard for through hole film capacitors, facilitating incorporation into existing PCB designs.

Metallised polyester film construction for stability and long service life. Through hole mount suitable for robust mechanical and electrical connections. Capacitance rating of 150nF enabling various filtering and timing functions.

Voltage ratings provide flexibility in AC/DC circuits up to 63V AC/100V DC. Compact dimensions minimize PCB footprint. RoHS conformity ensures environmental compliance. Reliable operation at elevated temperatures up to 100°C.

Common in consumer electronics and industrial lamp ballast use cases. Browse our Electronics Components > Film Capacitor category on EnvMart for more TDK capacitors and related passive components.
