| Country of Origin | India |
|---|---|
| Diameter | 2.72mm |
| Brand | DiodesZetex |
| Length | 5.2mm |
| Model | 1N5817-T |
| Mount Type | Through Hole |
| Case Material | Molded Plastic. UL Flammability Classification Rating 94V-0 |
| Series | 1N5817 |
| Maximum Operating Temperature | 125°C |
| Case | DO-41 |
| Package Type | DO-41 |
| Minimum Operating Temperature | -65°C |
| Polarity | Cathode Band |
| Marking | Type Number and Date Code |
| Standards/Approvals | FBI |
| Pin Count | 2 |
| Automotive Standard | AEC-Q101 |
| Maximum Continuous Forward Current If | 1A |
| Peak Reverse Repetitive Voltage Vrrm | 20V |
| Diode Configuration | Dual |
| Rectifier Type | Rectifier Diode |
| Peak Reverse Current Ir | 10mA |
| Peak Non-Repetitive Forward Surge Current Ifsm | 25A |
| Maximum Forward Voltage Vf | 750mV |
| Moisture Sensitivity | Level 1 per J-STD-020C |

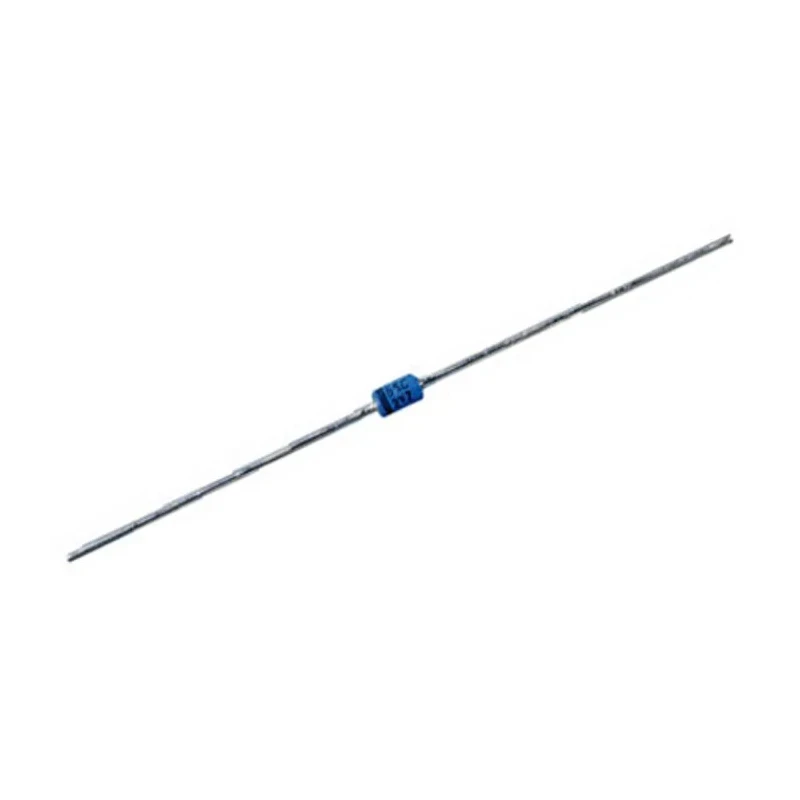

DiodesZetex 1N5817-T is a Schottky Barrier Rectifier Diode designed for through-hole mounting with a DO-41 package type. It offers a maximum continuous forward current of 1 amp and a peak reverse repetitive voltage of 20 volts, making it suitable for use in power rectification, voltage clamping, and polarity protection applications in electronic circuits.
This diode features a molded plastic case with a UL 94V-0 flammability rating and a cathode band marking for easy identification of polarity. Its low forward voltage drop of 750 mV enhances efficiency by reducing power dissipation in circuits. The device can withstand a peak non-repetitive forward surge current of up to 25 amperes, indicating strong transient handling capabilities.
Operating reliably within temperatures from -65°C to 125°C and compliant with automotive standard AEC-Q101, this diode is well suited for industrial, automotive, and general electronics applications. It also meets RoHS environmental standards with a lead-free finish, supporting sustainable manufacturing practices.
Maximum continuous forward current of 1 ampere. Peak reverse repetitive voltage rating of 20 volts. Molded plastic DO-41 package with UL 94V-0 rating. Cathode band polarity marking. Peak non-repetitive forward surge current: 25 amperes.
Operating temperature range: -65°C to 125°C. Automotive standard AEC-Q101 compliance. Lead-free finish, RoHS compliant. Length: 5.2 mm and Diameter: 2.72 mm.
The DiodesZetex 1N5817-T diode is commonly used in power supply circuits, voltage clamping, freewheeling diodes in motor control, and polarity protection in various industrial and commercial electronic systems. Its compact form factor and robust electrical characteristics make it a versatile component in semiconductor device assemblies.
Browse EnvMart for DiodesZetex electronic components and discover a full range of semiconductors, rectifiers, and Schottky diodes tailored for your industrial and laboratory needs.
Explore more products in our Schottky Diodes & Rectifiers category.
