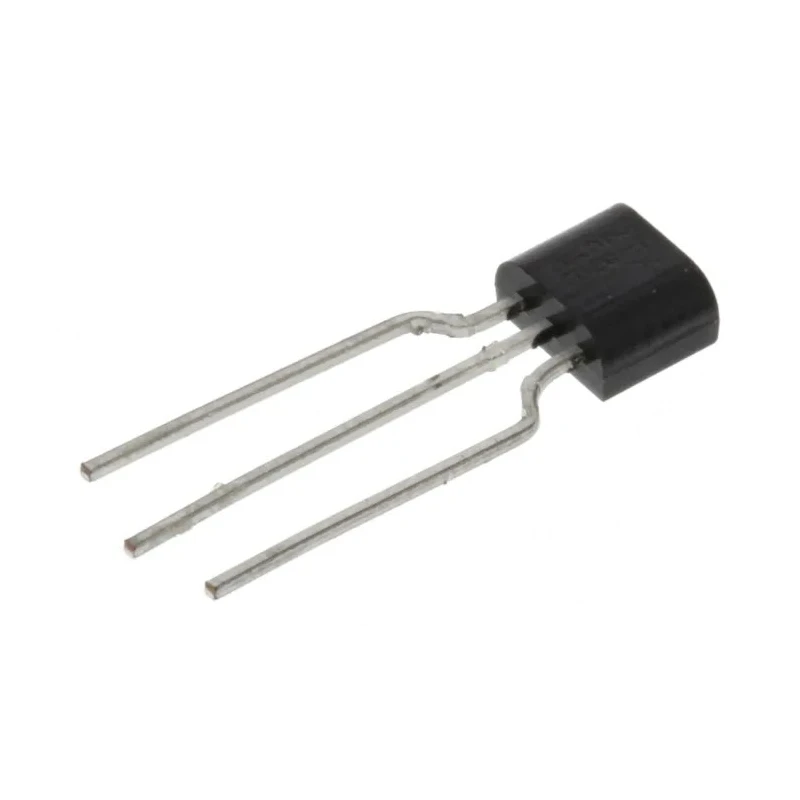

DiodesZetex Transistor 3 A NPN 12 V 3-Pin E-Line ZTX688BSTZ

DiodesZetex ZTX688BSTZ is a high-performance NPN bipolar transistor designed for general electronic component applications requiring reliable switching and amplification capabilities. Featuring a maximum collector current (Idc) of 3 amperes and a maximum collector-emitter voltage (Vceo) of 12 volts, this transistor operates efficiently within its ratings, making it suitable for various industrial and commercial electronic circuits.

The transistor is housed in a 3-pin E-Line package which facilitates through-hole mounting, ensuring easy integration into printed circuit boards. As a single transistor configuration, it is versatile for use in amplifier circuits, switching applications, and signal processing tasks.

Technical features include a minimum DC current gain (hFE) of 100, allowing for dependable signal amplification. The device supports a maximum transition frequency (ft) of 150 MHz, making it appropriate for high-frequency operation scenarios. It can tolerate a broad operating temperature range from -55°C to 200°C, qualifying it for use in harsh industrial environments where temperature extremes are common.

Its maximum power dissipation (Pd) of 1 watt promises robustness during continuous operation, while the maximum emitter-base voltage (VEBO) of 5 volts guarantees safe voltage handling during circuit switching. The ZTX688BSTZ belongs to the ZTX6X transistor series by DiodesZetex, recognized for general purpose applications.

This transistor does not meet automotive standards but is well-suited for use in electronic devices, laboratory equipment, manufacturing machinery, and various power and signal conditioning scenarios in both industrial and commercial sectors.

Designed in a 3-pin E-Line package suitable for through-hole mounting. Maximum DC collector current of 3 A for reliable power handling. Maximum collector-emitter voltage of 12 V supports medium voltage applications. Minimum DC current gain hFE of 100 enables effective amplification.

Wide operating temperature range from -55°C to 200°C for industrial reliability. Maximum power dissipation rating of 1 W ensures durability. High transition frequency of 150 MHz for high-speed switching. Single transistor configuration with NPN polarity.

Part of the ZTX6X series recognized for general purpose use. Explore more in our Electronics & Electricals category at EnvMart for a wide selection of Bipolar Transistors and related semiconductor components.
