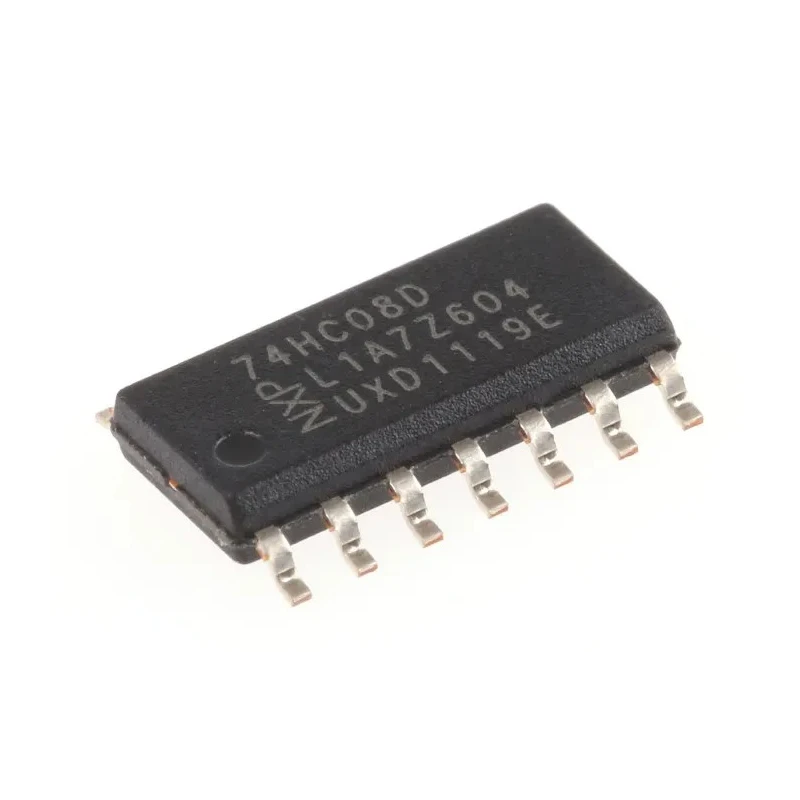

Nexperia 4 2-Input AND Logic Gate, 14-Pin SOIC, High-Speed CMOS 2 to 6 V Operating Voltage 74HC08D,652

Nexperia 74HC08D,652 is a quad 2-input AND logic gate integrated circuit available in a 14-pin SOIC surface mount package. It employs high-speed CMOS technology to deliver fast switching capabilities while maintaining low power consumption, ideal for modern electronic components and semiconductor applications.

This Logic Gate IC operates within an extended voltage range of 2 to 6 V, allowing versatility in various digital circuits. The device supports a broad operating temperature from -40°C to 125°C, providing robust performance in challenging industrial and commercial environments.

The IC contains four independent AND gates, each with two inputs, making it suitable for creating complex logical functions in compact spaces. Its compact 14-pin SOIC package facilitates efficient surface mount placement and integration on printed circuit boards.

Designed for compatibility with CMOS logic families, the 74HC08D,652 outputs CMOS logic levels which simplifies interfacing with other digital components. The specified maximum output currents of ±5.2 mA ensure the device can drive subsequent logic inputs or small loads reliably.

The device complies with RoHS environmental standards, ensuring reduced hazardous substance content for sustainable manufacturing and usage. Physical dimensions of length 8.75 mm, width 4 mm, and height 1.45 mm bolster its suitability for densely packed circuit designs.

Four independent 2-input AND gates support logical AND operations. Compact 14-pin SOIC surface mount package for modern PCB layouts. Wide operating voltage range of 2 V to 6 V allows flexible power supply design. High-speed CMOS technology ensures low power consumption and fast switching.

Operational temperature range from -40°C to 125°C suits harsh industrial environments. Compliant with RoHS standards supporting eco-friendly electronics manufacturing. Maximum output current of 5.2 mA supports driving typical CMOS logic inputs and small loads.

Small form factor with dimensions: 8.75 mm length, 4 mm width, and 1.45 mm height.

This product is ideally used in electronic component assembly, power & connectors semiconductor logic circuits, industrial automation systems, consumer electronics design, and embedded system development. Its reliable performance makes it suitable for a wide array of electronic and electrical engineering applications.
