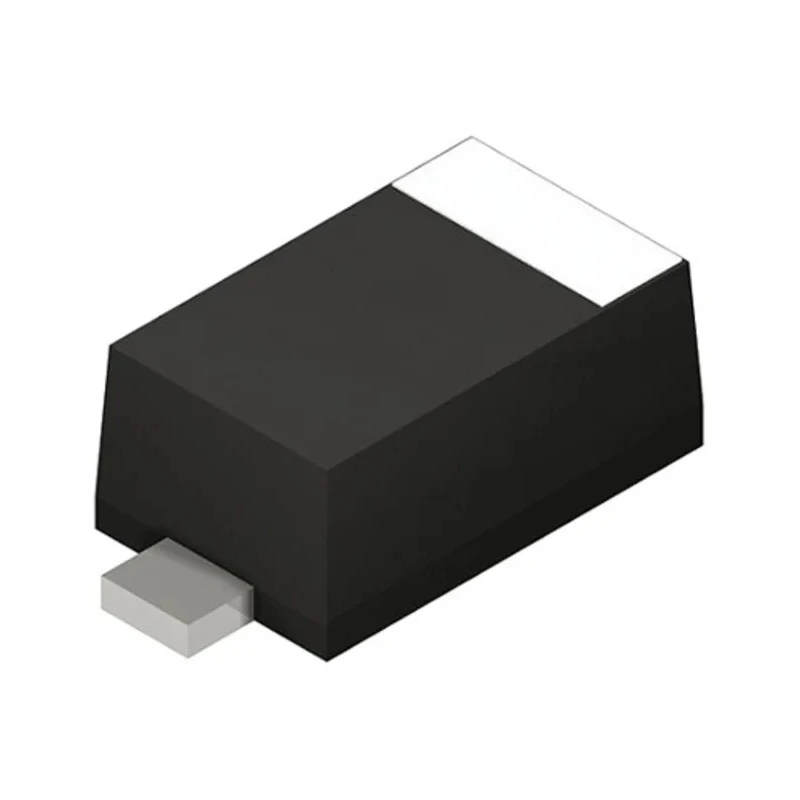

DiodesZetex Schottky Diode Single 2-Pin SOD-123 30 V 2 A MBR230S1F-7
Specifications
| Country of Origin | India |
|---|---|
| Brand | DiodesZetex |
| Height | 1.15mm |
| Length | 2.8mm |
| Model | MBR230S1F-7 |
| Width | 1.9mm |
| Mount Type | Surface |
| Maximum Operating Temperature | 125°C |
| Package Type | SOD-123 |
| Minimum Operating Temperature | -55°C |
| Standards/Approvals | FBI |
| Pin Count | 2 |
| Automotive Standard | AEC-Q101 |
| Maximum Continuous Forward Current If | 2A |
| Peak Reverse Repetitive Voltage Vrrm | 30V |
| Diode Configuration | Single |
| Rectifier Type | Schottky |
| Peak Reverse Current Ir | 1mA |
| Peak Non-Repetitive Forward Surge Current Ifsm | 30A |
| Maximum Forward Voltage Vf | 420mV |
Key Features
- This diode features a maximum continuous forward current of 2A.
- It has a peak reverse repetitive voltage rating of 30V for reliable blocking capability.
- The diode package is SOD-123 with dimensions 2.8mm length, 1.9mm width, and 1.15mm height for surface mount applications.
- The maximum forward voltage drop is 420mV, ensuring low power loss and high efficiency.
- It operates reliably in temperature ranges from -55°C to 125°C, meeting automotive AEC-Q101 standards.
- The peak non-repetitive forward surge current rating is 30A for tolerance to transient currents.
- Pin count is 2, configured as a Schottky barrier diode for fast switching and low junction capacitance.
- Compliant with relevant standards and offers thermal stability and high reliability for industrial use.
Product Description
DiodesZetex MBR230S1F-7 is a high-quality Schottky barrier diode designed for efficient rectification and low forward voltage drop in electronic circuits. This surface mount device features a compact SOD-123 package, ideal for modern electronic assembly requiring space saving and reliable performance.
With a maximum continuous forward current of 2A and a peak reverse repetitive voltage of 30V, this diode offers robust operation in power-sensitive environments. Its low maximum forward voltage of 420mV reduces heat dissipation and power loss, contributing to improved device efficiency.
The diode is rated for operation in a wide temperature range from -55°C to 125°C, making it suitable for harsh industrial and automotive environments. Compliance with the AEC-Q101 automotive standard further attests to its durability and reliability in demanding applications.
The MBR230S1F-7 supports a peak non-repetitive forward surge current of 30A, which enhances the diode's ability to withstand transient overloads without damage. The device's 2-pin configuration allows straightforward integration into various circuit designs requiring Schottky rectifiers.
Applications include power supplies, voltage clamping, freewheeling diodes, and high-frequency rectification in industrial, automotive, and consumer electronics sectors. The diode's exceptional thermal stability and low capacitance characteristics make it a preferred choice for switching power supplies and protection circuits.
Maximum continuous forward current: 2A ensuring steady current handling capacity. Peak reverse repetitive voltage: 30V suitable for blocking unwanted reverse voltage. Low maximum forward voltage drop of 420mV for high efficiency.
Operating temperature range from -55°C to 125°C supports diverse environmental conditions. Compliance with automotive AEC-Q101 standard guarantees reliability. SOD-123 package dimensions: 2.8mm length, 1.9mm width, 1.15mm height for surface mounting.
Peak non-repetitive surge current rating of 30A enhances transient tolerance. Schottky diode configuration for fast switching and low junction capacitance.
This diode is ideal for industrial, automotive, laboratory, and commercial electronic applications requiring efficient power rectification and voltage protection. It provides excellent performance in a compact and rugged package, making it a reliable component in advanced electronic systems.
Explore more Schottky diodes and rectifiers from DiodesZetex for high-performance electronic solutions at EnvMart.
Explore more products in our Schottky Diodes & Rectifiers category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum continuous forward current of this diode is 2A, allowing it to handle steady current efficiently.
It has a peak reverse repetitive voltage rating of 30V, providing reliable blocking capability against reverse voltage.
The SOD-123 package has dimensions of 2.8mm in length, 1.9mm in width, and 1.15mm in height, making it suitable for surface mount applications.
The maximum forward voltage drop is 420mV, which contributes to low power loss and high efficiency in operation.
This diode operates reliably within a temperature range from -55°C to 125°C, making it suitable for various environmental conditions.
The peak non-repetitive forward surge current rating is 30A, allowing it to tolerate transient currents without damage.
It complies with the AEC-Q101 automotive standard, ensuring its reliability in automotive applications.
This diode features a 2-pin configuration, which allows for straightforward integration into various circuit designs.
This model is a Schottky rectifier, designed for fast switching and low junction capacitance.
It is suitable for applications including power supplies, voltage clamping, freewheeling diodes, and high-frequency rectification in various sectors.
The peak reverse current rating is 1mA, indicating the maximum reverse current the diode can handle under specified conditions.
The country of origin for this diode is India.
