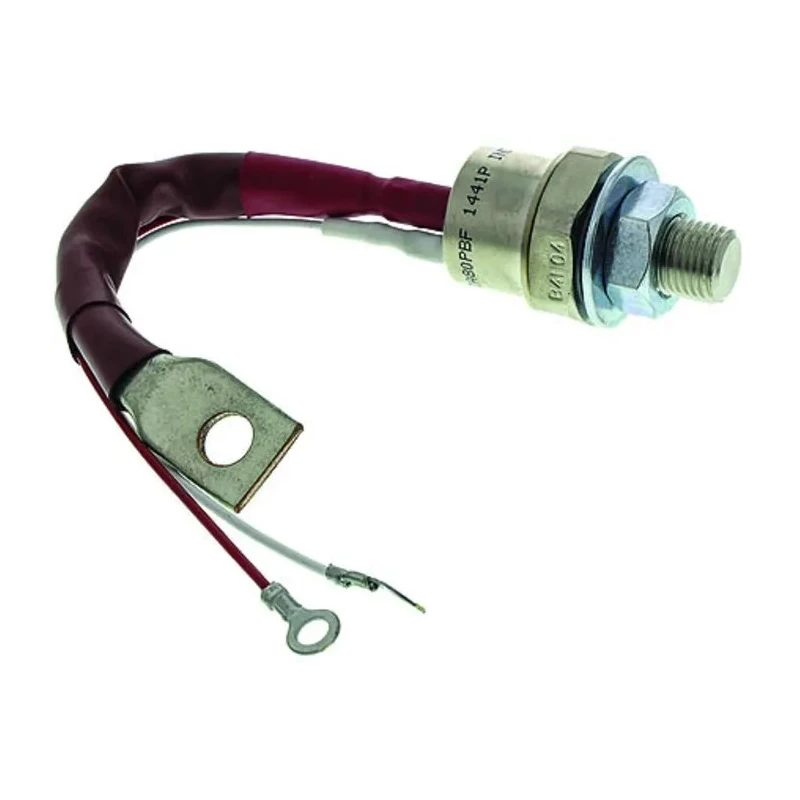

Vishay Thyristor Module SCR 1200 V 80 A 270 mA Gate Trigger Current 1.99 kA Surge Current VS-81RIA120

Free Delivery in India | Lowest Global Shipping Charges

Vishay Thyristor Module SCR 1200 V 80 A 270 mA Gate Trigger Current 1.99 kA Surge Current VS-81RIA120

Name: Vishay Thyristor Module SCR 1200 V 80 A 270 mA Gate Trigger Current 1.99 kA Surge Current VS-81RIA120
Brand: Vishay
SKU: 383250
Price: 62.76 USD
Availability: InStock



Category Thyristor Module Brand Vishay Condition New

Specifications

Country of Origin	India
Brand	Vishay
Model	VS-81RIA120
Mount Type	Screw
Maximum Operating Temperature	125°C
Package Type	TO-209
Minimum Operating Temperature	-40°C
Pin Count	4
Rated Average On-State Current Irms	80A
Thyristor Type	SCR
Repetitive Peak Reverse Voltage VDRM	1200V
Surge Current Rating	1.99kA
Maximum Gate Trigger Current Igt	270mA
Maximum Holding Current Ih	200mA
Maximum Gate Trigger Voltage Vgt	3.5V
Peak On-State Voltage	1.6V
Repetitive Peak Off-State Current	15mA

Key Features

Features a surge current rating of 1.99 kA for handling transient load conditions.
Incorporates a maximum gate trigger current of 270 mA to ensure precise triggering.
Supports a maximum holding current of 200 mA to maintain continuous conduction.
Encased in a TO-209 package with screw mount for secure installation.
Operates reliably within temperature ranges of -40°C to 125°C.
Offers repetitive peak reverse voltage of 1200 V and peak on-state voltage of 1.6 V.
Designed with 4 pins for robust electrical connectivity.
Suitable for applications such as battery chargers, welders, plating equipment, and regulated power supplies.

Product Description

Vishay VS-81RIA120 is a high-quality Thyristor Module SCR designed for heavy-duty industrial power control. Rated at 1200 V repetitive peak reverse voltage and capable of handling an average on-state current of 80 A, it is ideal for use in applications demanding reliable and efficient switching.

The device is constructed with four alternating layers of N and P-type semiconductors arranged in the Silicon-Controlled Rectifier (SCR) configuration. It triggers when a gate current is applied and maintains conduction as long as forward voltage bias is present. The module's maximum gate trigger current is 270 mA, with a holding current of 200 mA, allowing effective control over switching.

Encapsulated in a TO-209 package featuring a screw mount and an electrically isolated base plate, the module ensures ease of installation and effective heat dissipation. It supports operations over a wide temperature range from -40°C to 125°C, suitable for harsh industrial environments.

This module is beneficial in phase control applications within battery charging, welding, plating, regulated power supplies, and temperature or speed control circuits due to its robustness and performance specifications.

Surge Current Rating of 1.99 kA enables management of transient conditions. Low peak on-state voltage of 1.6 V ensures efficient operation. Repetitive peak off-state current of 15 mA minimizes leakage current. 4-pin configuration supports stable electrical connections.

Manufactured in India, ensuring compliance with local standards.

This Vishay Thyristor Module VS-81RIA120 is a reliable choice for laboratory, industrial automation, manufacturing, HVAC, and electric power applications requiring sturdy and precise power switching semiconductor devices.
