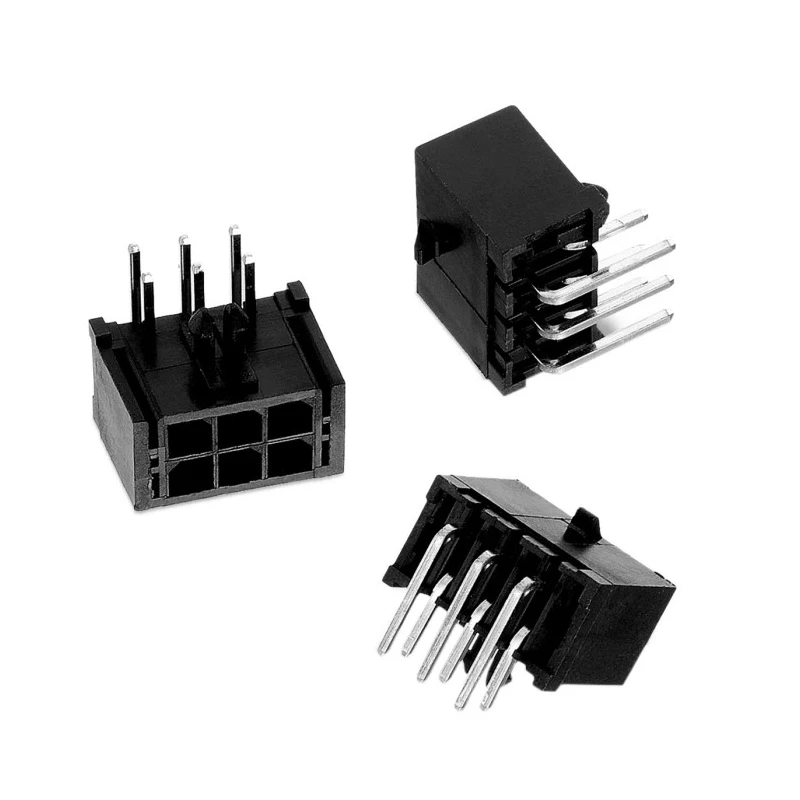

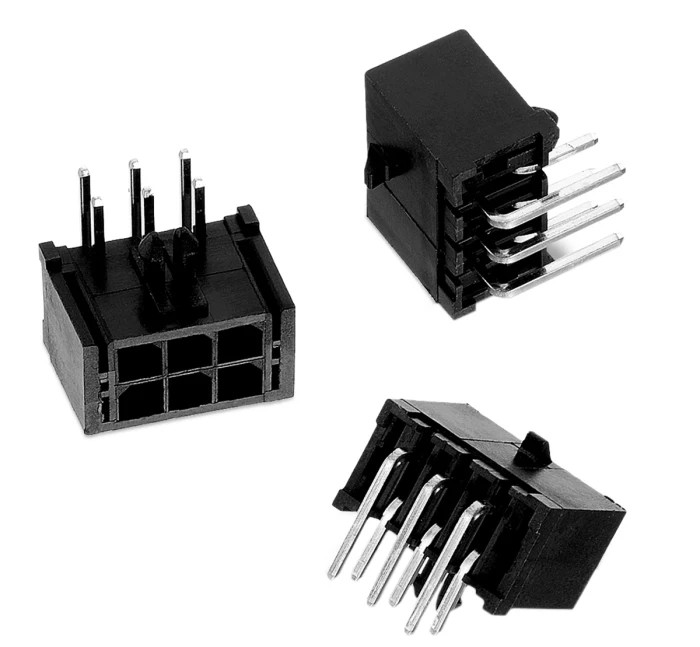

Wurth Elektronik WR-MPC3 Series Right Angle Through Hole PCB Header 20 Contacts 3 mm Pitch 2 Row Shrouded MPC3

Name: Wurth Elektronik WR-MPC3 Series Right Angle Through Hole PCB Header 20 Contacts 3 mm Pitch 2 Row Shrouded MPC3
Brand: Wurth Elektronik
SKU: 379373
Price: 1.42 USD
Availability: InStock



Category PCB Headers Brand Wurth Elektronik Condition New

Specifications

Country of Origin	India
Voltage	250V
Brand	Wurth Elektronik
Orientation	Right Angle
Current	5A
Model	MPC3
Mount Type	Through Hole
Housing Material	Liquid Crystal Polymer
Contact Material	Copper Alloy
Series	WR-MPC3
Termination Type	Solder
Maximum Operating Temperature	105°C
Minimum Operating Temperature	-40°C
Number of Rows	2
Pitch	3mm
Contact Plating	Tin
Number of Contacts	20
Contact Gender	Male
Shrouded/Unshrouded	Shrouded
Connector System	Wire-to-Board
Tail Pin Length	3.2mm

Key Features

Features a dual row right angle mount with 3.0mm pitch for compact PCB integration.
Consists of 20 male tin-plated copper alloy contacts ensuring reliable conductivity.
Constructed with liquid crystal polymer housing rated UL94-V0 for flame retardancy.
Rated for 5 Ampere current and a voltage of up to 250V.
Suitable for solder through-hole mounting with board locks for mechanical stability.
Operates safely within a temperature range from -40°C to 105°C.
Designed to mate with WR-MPC3 female connectors for secure wire-to-board connections.
Ideal for industrial, electronic assembly, and manufacturing applications.

Product Description

Wurth Elektronik MPC3 series right angle through hole PCB header MPC3 is a high-quality connector designed for printed circuit board applications, featuring 20 male contacts arranged in 2 rows with a 3 mm pitch. The shrouded design provides enhanced protection and secure mating with matching female connectors.

The housing is made from liquid crystal polymer, a durable material rated UL94-V0 for flame resistance, ensuring safety and longevity in demanding environments. Contacts are crafted from copper alloy with tin plating to provide excellent electrical conductivity and corrosion resistance.

This connector is rated for 5 Amperes and can handle voltages up to 250 Volts, making it suitable for a wide range of power and signal applications. Its right angle orientation and through-hole mount type facilitate versatile PCB layout options and sturdy mechanical installation supported by board locks.

Operating temperature ranges from -40°C up to 105°C, supporting use in diverse industrial and commercial settings including electronics assembly, manufacturing, and power distribution systems.

Key feature highlights include its dual-row configuration, tin-plated contacts, and robust housing material, making it a reliable connection solution for wire-to-board setups. Dual row right angle 3 mm pitch male header connector.

20 tin-plated copper alloy contacts for reliable electrical performance. Durable liquid crystal polymer housing rated UL94-V0 flame retardant. 5 Amp current rating and 250 Volt voltage rating. Through-hole mount with board locks for stable mechanical fixing.

Operating temperature from -40°C to 105°C for wide application scope. Shrouded design for enhanced mating security and protection. This product is suitable for industrial, electronics manufacturing, power distribution, and automation applications requiring dependable PCB connectors.
