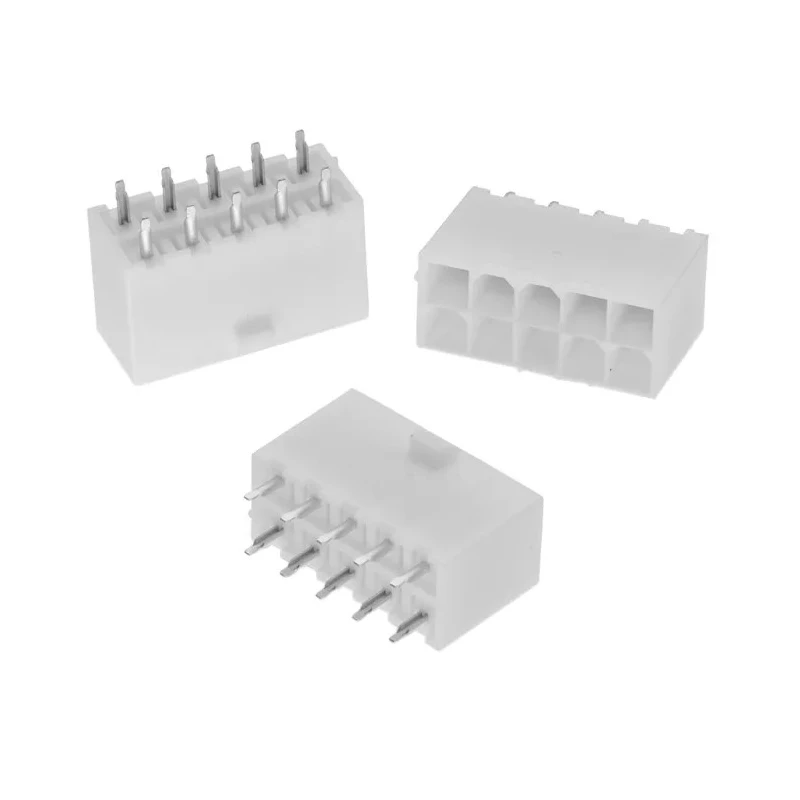

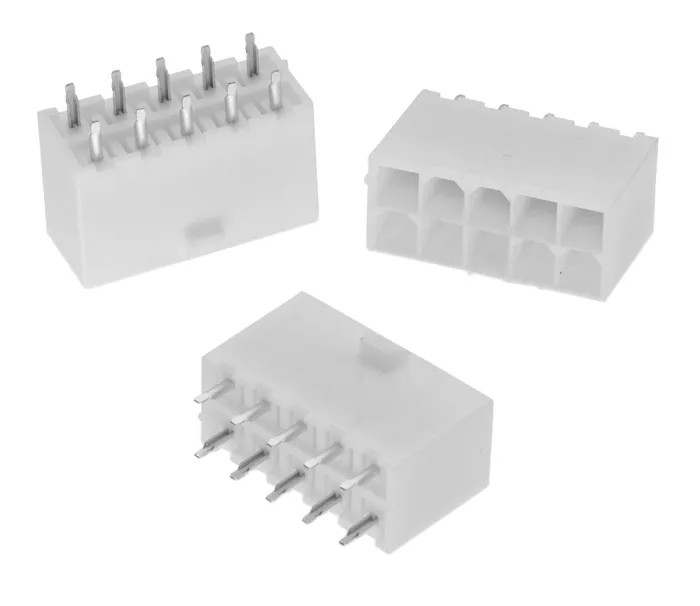

Wurth Elektronik WR-MPC4 Series Straight Through Hole PCB Header 8 Contact 4.2 mm Pitch 2 Row Shrouded MPC4

Wurth Elektronik MPC4 Straight Through Hole PCB Header MPC4 series is a dual row vertical male header connector with an industry-standard 4.20 mm pitch designed for wire-to-board applications. The housing is made of polyamide material rated UL94-V0, ensuring flame retardancy and mechanical strength for electronic assembly.

This PCB header features 8 straight male contacts arranged in 2 rows, providing robust electrical connections with a current capacity of 69A and voltage rating of 600V, making it suitable for medium to high power electronic devices.

The connector system is wire-to-board type with through hole mount style and solder termination that ensures a secure and reliable connection. The contacts are made from copper alloy and plated with tin over nickel to protect against corrosion and ensure long-term contact integrity. With a tail pin length of 3.5 mm, the header is optimized for reliable solder joint formation.

Operating temperature range spans from -40°C to 105°C, allowing usage in diverse industrial and electronic environments including power supplies, industrial control units, and communication equipment.

The shrouded design provides protection to contacts and prevents misalignment during mating operations. Although this model does not hold specific third-party certifications, it conforms to general quality and design standards in PCB header connectors.

Constructed with polyamide housing material ensuring durability. Designed with 2 rows and shrouded orientation for secure mating. Supports a current rating of 69A and voltage up to 600V. Features copper alloy contacts plated with tin over nickel for corrosion resistance.

Suitable for through hole mounting with solder termination type. Operates reliably between -40°C to 105°C temperature range. Includes tail pins of 3.5 mm length for easy soldering. Compliant with industry standards but without specific approvals.

This Wurth Elektronik WR-MPC4 Series PCB header is ideal for industrial, manufacturing, and electronic assembly applications demanding high reliability and power handling capabilities. Discover more high-quality electronic components and connectors at EnvMart.
