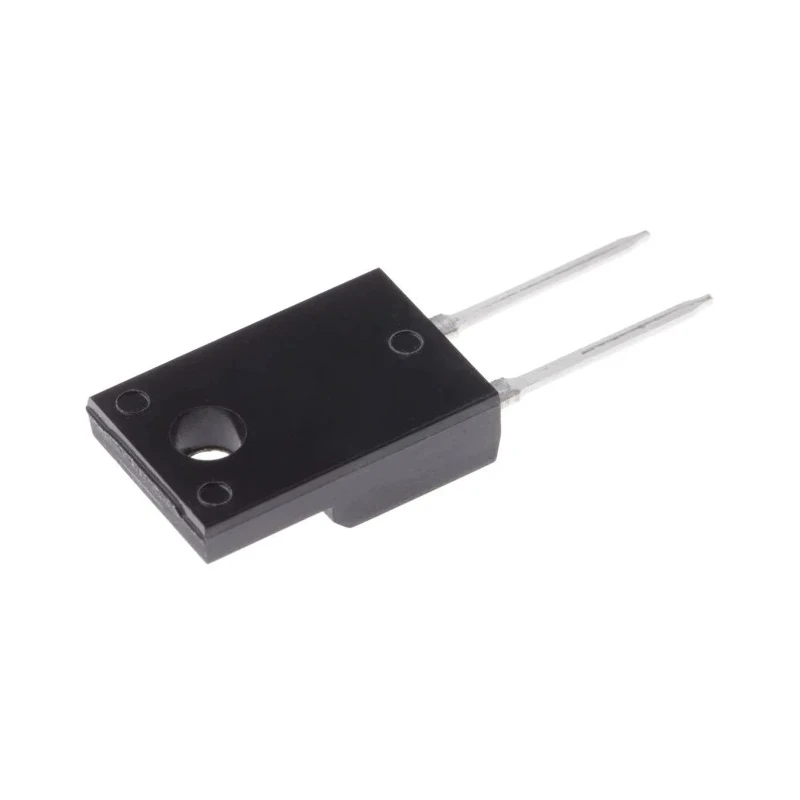

Vishay Silicon Junction Switching Diode, Single, 8A Forward Current, 600V Peak Reverse Voltage, TO-220F Package UGF8JT-E3/45

Name: Vishay Silicon Junction Switching Diode, Single, 8A Forward Current, 600V Peak Reverse Voltage, TO-220F Package UGF8JT-E3/45
Brand: Vishay
SKU: 377169
Price: 20.22 USD
Availability: InStock



Category Switching Diodes Brand Vishay Condition New

Specifications

Country of Origin	China
Brand	Vishay
Height	15.24mm
Length	10.26mm
Model	UGF8JT-E3/45
Width	4.83mm
Mount Type	Through Hole
Series	UGF8JT
Maximum Operating Temperature	150°C
Package Type	TO-220F
Sub Type	Silicon Junction
Minimum Operating Temperature	-55°C
Pin Count	2
Automotive Standard	AEC-Q101
Diode Configuration	Single
Peak Non-Repetitive Forward Surge Current Ifsm	100A
Maximum Forward Voltage Vf	1.75V
Peak Reverse Recovery Time trr	25ns
Maximum Forward Current If	8A
Maximum Peak Reverse Repetitive Voltage Vrrm	600V

Key Features

Supports high-speed switching with 25ns peak reverse recovery time.
Operates reliably from -55°C up to 150°C.
Through-hole mount type with 2 pins for easy PCB integration.
Peak non-repetitive forward surge current up to 100A.
Maximum forward voltage of 1.75V ensuring efficient conduction.
Meets automotive standard AEC-Q101 for demanding applications.
Ideal for use in switched mode power supplies, inverters, and freewheeling diode circuits.

Product Description

Vishay UGF8JT-E3/45 is a single silicon junction switching diode designed to handle a maximum forward current of 8 amps and a maximum peak reverse voltage of 600 volts. It is packaged in a TO-220F through-hole mount which facilitates easy integration and robust mechanical support in electronic assemblies.

This diode features ultrafast recovery characteristics with a peak reverse recovery time of only 25 nanoseconds, making it suitable for high-frequency switching applications such as switched mode power supplies (SMPS), bi-directional inverters, and freewheeling diode functions.

The diode operates over a wide temperature range from -55°C to 150°C, ensuring reliability under harsh and automotive environments, supported by compliance with the automotive standard AEC-Q101.

Key physical dimensions include a height of 15.24 mm, a length of 10.26 mm, and a width of 4.83 mm, allowing it to fit compact designs with space constraints. The maximum forward voltage drop is 1.75 volts, balancing conduction efficiency and switching speed.

This diode is ideal for industrial, automotive, and power electronics applications requiring precise and efficient switching devices for current flows up to 8 amperes. Its robust surge current capability of 100 amps assists in handling temporary power spikes effectively without damage.

High-speed switching with 25ns peak reverse recovery time. Wide operating temperature range: -55°C to 150°C. Through-hole mount with TO-220F packaging. Maximum forward current of 8A for reliable operation. Peak surge current capacity of 100A.

Compliant with automotive standard AEC-Q101. Compact physical dimensions for space-sensitive applications. Suitable for power supplies, inverters, and freewheeling diode roles. Explore advanced discrete semiconductor components on EnvMart for versatile electronic and power management solutions.
