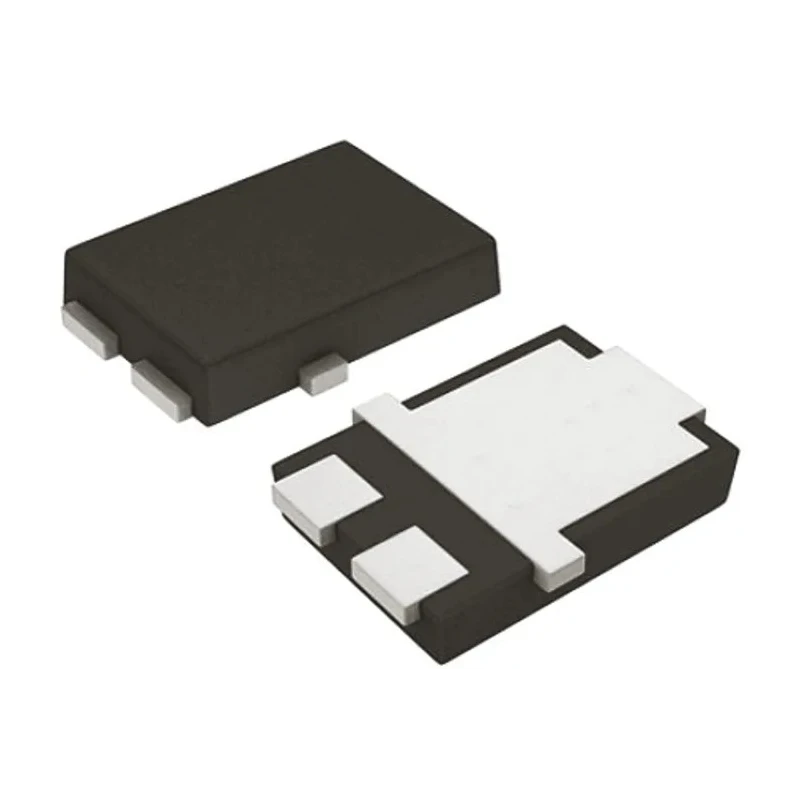

Vishay Surface Mount Schottky Diode 45 V 10 A TO-277 Package V10PL45-M3/86A

Free Delivery in India | Lowest Global Shipping Charges

Vishay Surface Mount Schottky Diode 45 V 10 A TO-277 Package V10PL45-M3/86A

Name: Vishay Surface Mount Schottky Diode 45 V 10 A TO-277 Package V10PL45-M3/86A
Brand: Vishay
SKU: 377047
Price: 0.76 USD
Availability: InStock



Category Schottky Diode Brand Vishay Condition New

Specifications

Country of Origin	China
Brand	Vishay
Height	1.2mm
Length	6.15mm
Model	V10PL45-M3/86A
Width	4.75mm
Mount Type	Surface
Series	V10
Maximum Operating Temperature	150°C
Package Type	TO-277
Minimum Operating Temperature	-40°C
Pin Count	3
Maximum Continuous Forward Current If	10A
Peak Reverse Repetitive Voltage Vrrm	45V
Diode Configuration	Single
Rectifier Type	Schottky
Peak Reverse Current Ir	75mA
Peak Non-Repetitive Forward Surge Current Ifsm	200A
Maximum Forward Voltage Vf	520mV

Key Features

Patented Trench MOS Barrier Schottky technology for improved efficiency and fast switching.
Maximum continuous forward current of 10 A ensures high current capability.
Peak reverse repetitive voltage rating of 45 V for reliable blocking performance.
Low forward voltage drop of 520 mV minimizes power losses during conduction.
Wide operating temperature range from -40°C to 150°C supports diverse industrial environments.
Compact TO-277 package with 3 pins and dimensions 6.15mm length, 4.75mm width, 1.2mm height.
Peak non-repetitive forward surge current rating of 200 A for transient robustness.
Supplied as a tape for efficient automated assembly processes.

Product Description

Vishay V10PL45-M3/86A is a high-performance Surface Mount Schottky Diode featuring patented Trench MOS Barrier Schottky (TMBS) technology that reduces minority carrier injections, improving switching speeds and efficiency in power supply applications.

This diode is engineered for use in AC/DC switched mode power supplies and DC/DC converters, offering a maximum continuous forward current of 10 amperes and peak reverse repetitive voltage of 45 volts. The low forward voltage drop of 520 mV minimizes conduction losses, enhancing overall power efficiency.

It supports harsh operating conditions with an operating temperature range from -40°C to 150°C, making it suitable for industrial, HVAC, electronic manufacturing, and automotive applications where thermal stability is critical.

The device is housed in a compact TO-277 package with a 3-pin configuration, measuring 6.15 mm in length, 4.75 mm in width, and 1.2 mm in height, ensuring easy integration into PCB layouts with automated tape supply packaging.

Additional features include a peak non-repetitive forward surge current rating of 200 A for handling transient conditions and a peak reverse current of 75 mA. The diode conforms to standard industrial quality norms and is manufactured in China.

Patented trench technology improves switching speed and efficiency. Compact TO-277 surface mount package for space-saving designs. High current handling capacity up to 10 A continuous forward current. Wide operating temperature range suitable for various industrial environments.

Low forward voltage reduces power dissipation in circuits. Ideal for use in power supply, converter, and automotive electronics. Robust surge current capability ensures reliability under transient loads. Explore more Vishay Schottky Diodes and power semiconductor components at EnvMart for industrial and commercial applications.
