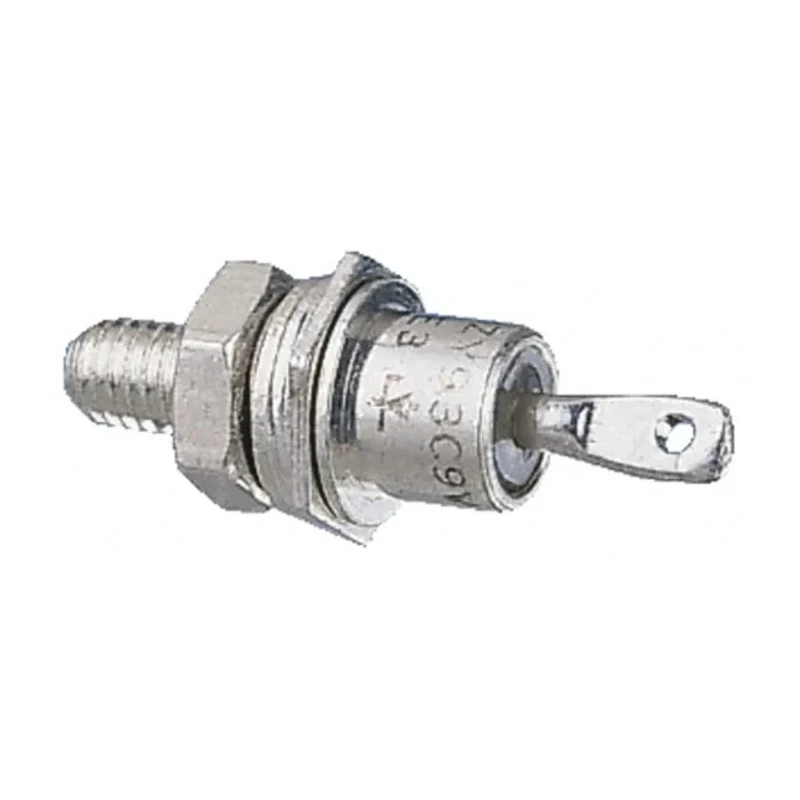

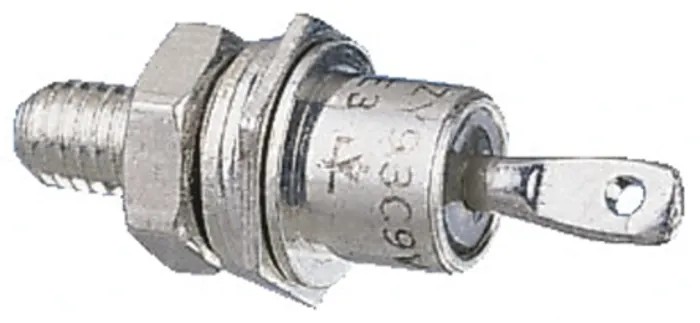

Vishay Standard Recovery 1200 V 80 A Diode Recovery 2-Pin DO-203AB VS-82PF120

Vishay VS-82PF120 is a Standard Recovery rectifier diode designed for industrial and power electronics applications. It features a maximum continuous forward current of 80 amperes and a peak reverse repetitive voltage of 1200 volts, making it suitable for high-voltage and high-current circuits. The diode utilizes a stud cathode configuration packaged in the DO-203AB 2-pin form factor, allowing easy screw mount assembly.

This diode supports demanding operating conditions with a temperature range from -55°C minimum up to 180°C maximum, ensuring reliability in harsh environments such as manufacturing, power conversion, industrial automation, and electrical control systems.

With a low maximum forward voltage of 1.4 V and a peak non-repetitive forward surge current of 1500 A, the VS-82PF120 delivers efficient current conduction and withstands short surge events without damage.

Physical dimensions include a height of 25.4 mm, width and diameter of 17.25 mm, and a compact length of 4 mm, facilitating integration in space-constrained electronic modules.

The device does not carry specific automotive standards but is ideal for commercial, industrial, and laboratory applications requiring reliable recovery-type rectifiers. Its low peak reverse current of 9 mA reduces leakage and increases circuit stability.

Manufactured in India, this diode meets the common industry requirements for standard recovery power diodes and is supplied as a new product. The package system and mounting type make it suitable for easy installation and replacement in existing equipment.

Designed for high efficiency Standard Recovery power diode applications. Maximum continuous forward current of 80 amperes for robust performance. Peak reverse repetitive voltage of 1200 volts supports high-voltage circuits.

High surge current capability with peak non-repetitive forward surge current of 1500 amperes. Operating temperature range from -55°C to 180°C for demanding industrial environments. Constructed with stud cathode diode configuration for reliable mounting.

Package dimensions 25.4 mm height, 17.25 mm width and diameter, 4 mm length. Pin count of 2 pins ensures compatibility with standard electrical configurations. Peak reverse current is low at 9 mA, enhancing diode stability.

Manufactured in India ensuring quality compliance.
