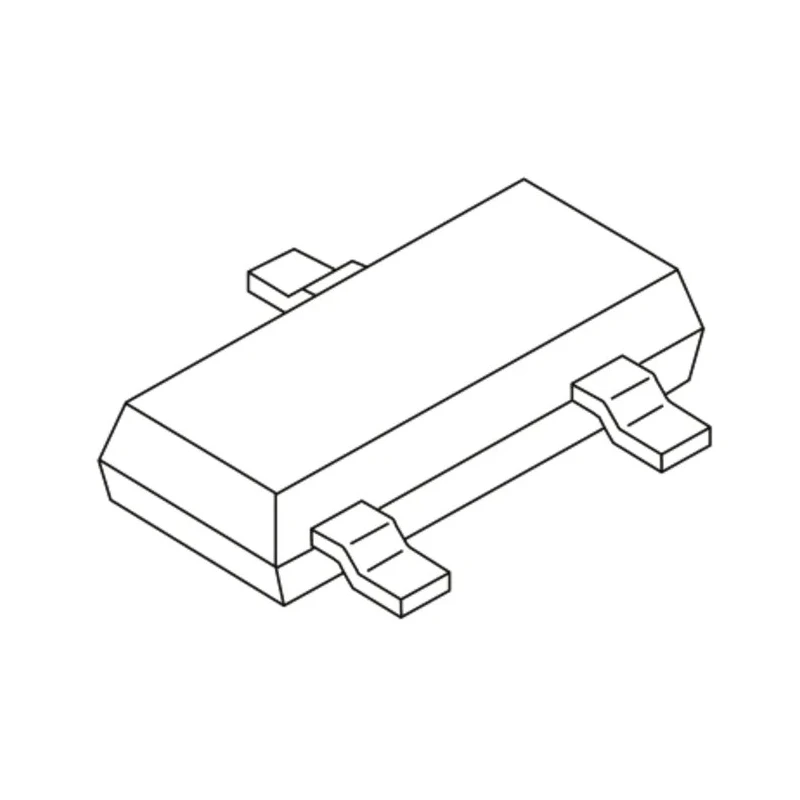

Nexperia 2-Element Uni-Directional ESD Protection Diode 40 W 3-Pin SOT-23 MMBZ12VAL,215

Nexperia MMBZ12VAL,215 is a 2-element uni-directional electrostatic discharge (ESD) protection diode designed for electronic circuits requiring high-level transient voltage suppression. It features a common anode configuration encapsulated in a compact SOT-23 (TO-236AB) surface-mount plastic package, measuring 3 mm in length, 1.4 mm in width, and 1.1 mm in height.

This device offers robust ESD protection with a peak pulse power dissipation rating of 40 watts, efficiently handling transient surges and voltage spikes that could damage sensitive semiconductor components. With a minimum breakdown voltage (Vbr) of 11.4 volts and a maximum reverse stand-off voltage (Vwm) of 8.5 volts, it safeguards circuits by clamping voltages up to 17 volts.

The diode operates reliably within a wide temperature range from -55°C to 150°C, making it suitable for demanding automotive and industrial environments. It complies with the AEC-Q101 automotive standard, affirming its quality and robustness for vehicle electronics and other critical applications.

With a maximum peak pulse current of 2.35 A and an ultra-low maximum reverse leakage current of 5 nA, the MMBZ12VAL,215 ensures efficient operation without compromising the circuit’s integrity. The surface-mount SOT-23 package facilitates easy integration into modern electronic assemblies, promoting compact and efficient designs.

This diode is particularly useful in protecting electronic components from damage caused by electrostatic discharge events in industrial controls, automotive electronics, consumer devices, and communication systems. Its low capacitance and common anode configuration make it ideal for protecting data lines and sensitive signal paths.

The diode features a common anode configuration with two elements per chip for superior ESD mitigation. Peak pulse power dissipation of 40 watts ensures durability under transient voltage surges. Surface-mount design in a compact 3 mm × 1.4 mm × 1.1 mm SOT-23 plastic package facilitates easy PCB integration.

Operating temperature range extends from -55°C to 150°C, suitable for harsh automotive and industrial conditions. Minimum breakdown voltage is 11.4 volts with a maximum reverse stand-off voltage of 8.5 volts. Automotive standard AEC-Q101 compliance guarantees reliability for automotive electronic applications.

Maximum peak pulse current is 2.35 A, with low leakage current of 5 nA for high performance. Designed to protect sensitive electronics from ESD damage in industrial, automotive, and consumer electronics. Explore more electronic components and semiconductor solutions for your manufacturing, automotive, telecommunications, and industrial automation projects at EnvMart.
