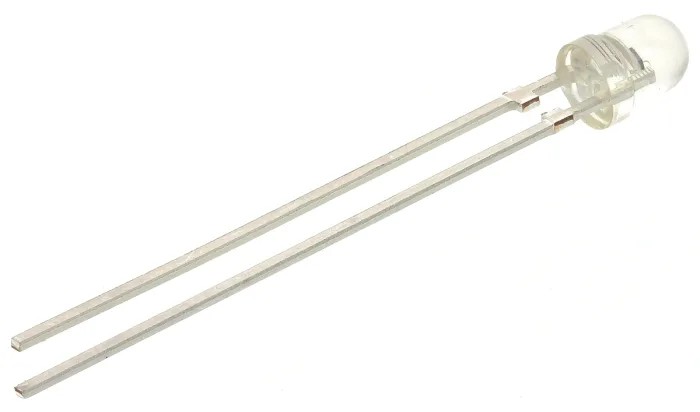

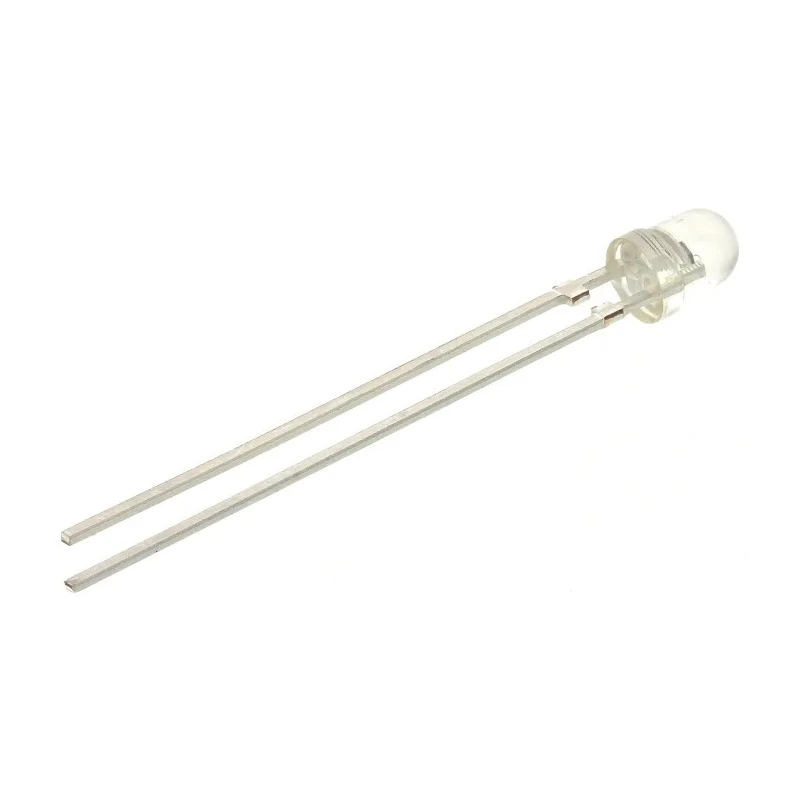

Vishay Phototransistor Infrared and Visible Light Through Hole 2-Pin 3 mm (T-1) Package BPW85
Specifications
| Country of Origin | India |
|---|---|
| Diameter | 3mm |
| Brand | Vishay |
| Operating Temperature | -40 to +100 °C |
| Height | 4.5mm |
| Length | 30.3mm |
| Model | BPW85 |
| Packaging | Bulk |
| Mount Type | Through Hole |
| Maximum Operating Temperature | 100°C |
| Package Type | 3 mm (T-1) |
| Minimum Operating Temperature | -40°C |
| Number Of Channels | 1 |
| Standards/Approvals | RoHS |
| Number of Pins | 2 |
| Typical Rise Time | 2μs |
| Typical Fall Time | 2.3μs |
| Peak Wavelength | 850nm |
| Spectrums Detected | Infrared, Visible Light |
| Angle of Half Sensitivity | ±25 ° |
| Collector Current | 50mA |
| Maximum Light Current | 8000μA |
| Maximum Dark Current | 200nA |
| Collector Emitter Voltage | 70V |
| Emitter Collector Voltage | 5V |
Key Features
- The phototransistor has an angle of half sensitivity of ±25 degrees.
- Supports a maximum collector current of 50mA.
- Operates in a wide temperature range from -40°C to 100°C.
- Features fast response times with typical rise and fall times of 2μs and 2.3μs respectively.
- Uses a silicon NPN phototransistor in a clear plastic lens for reliable detection.
- Collector-emitter voltage rating up to 70V and emitter-collector voltage up to 5V.
- Suitable for through-hole mounting with 2 pins and bulk packaging.
- Ideal for electronic control and drive circuit applications in industrial and consumer devices.
Product Description
Vishay BPW85 is a silicon NPN phototransistor suitable for sensing infrared and visible light. Packaged in a standard 3 mm (T-1) through-hole format, it features a clear lens design for excellent light detection efficiency.
This device provides high photo and radiant sensitivity, with a maximum collector current of 50mA and a wide operating temperature range from -40 to 100 °C, making it reliable for harsh industrial environments.
The BPW85 phototransistor offers fast response times, typical rise time of 2μs and fall time of 2.3μs, ensuring accurate signal detection. It has an angle of half sensitivity of ±25°, contributing to directional light sensing capabilities.
Electrical ratings include a collector-emitter voltage of 70V and emitter-collector voltage of 5V, supporting robust operation in various electronic circuits. The two-pin through-hole mount provides easy PCB integration with bulk packaging for volume usage.
Ideal for use in electronic control, drive circuits, and industrial sensing applications, the BPW85 is RoHS compliant, ensuring ecological responsibility. Angle of half sensitivity ±25° improves directional accuracy. High maximum collector current 50mA facilitates strong signal handling.
Wide temperature operation from -40°C to 100°C for industrial reliability. Fast response times enable precision light detection. Compact 3 mm (T-1) through-hole package for easy mounting. Clear plastic lens ensures effective infrared and visible light detection.
Collector-emitter voltage rated at 70V ensures safety margins. Bulk packaging supports large scale applications. Ideal for industrial electronics, sensor circuits, and optical controls. Discover more Vishay Phototransistor products and components on EnvMart for your electronic and electrical needs.
