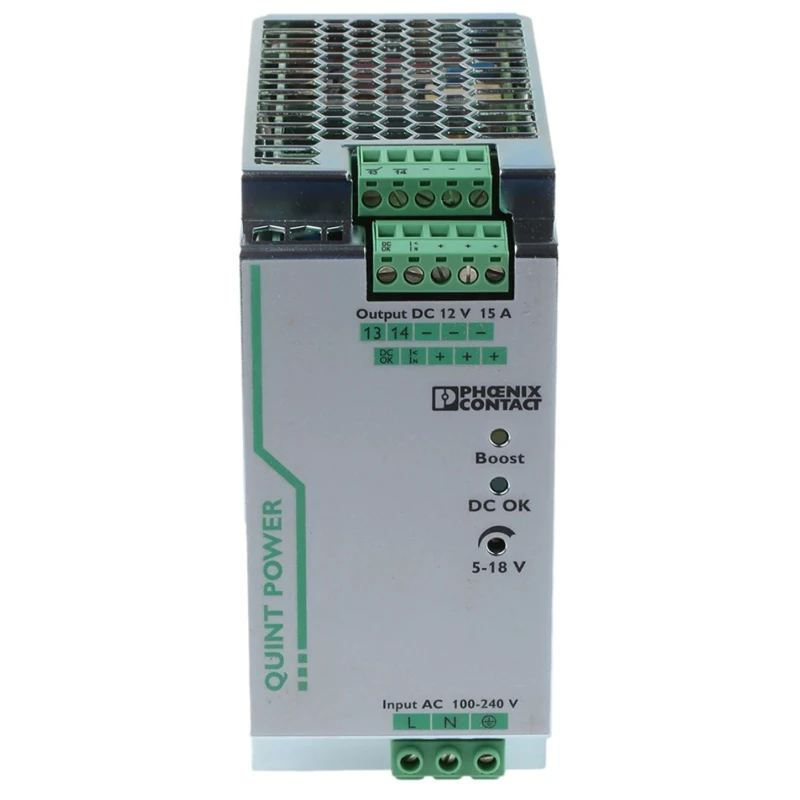

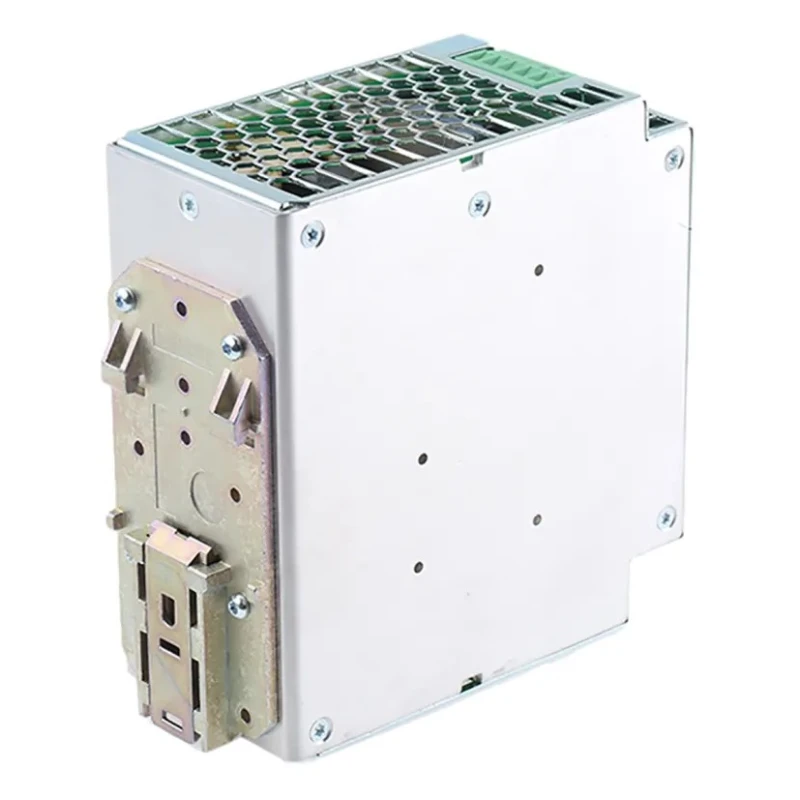

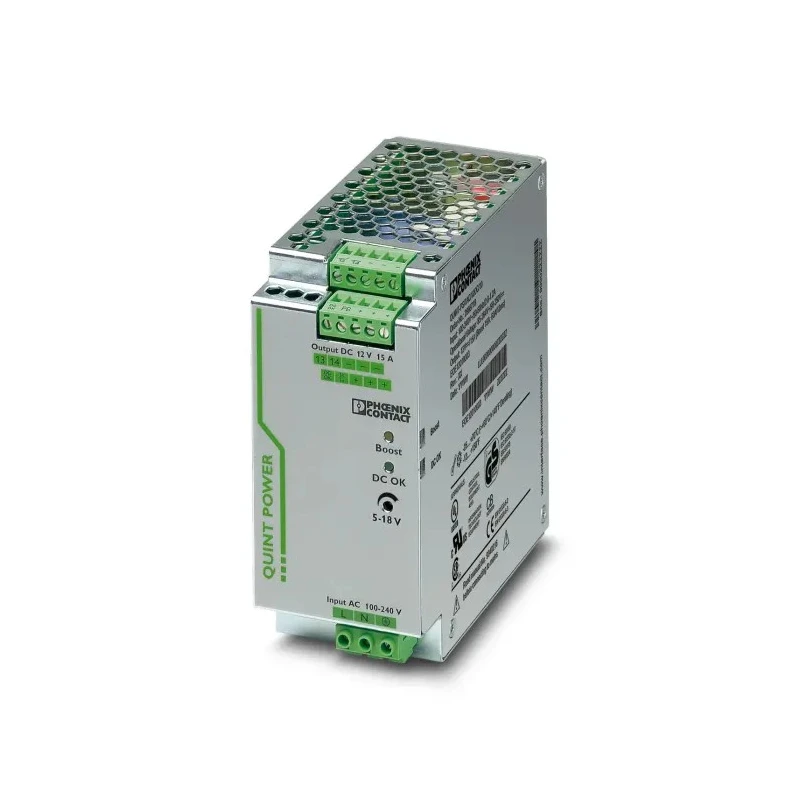

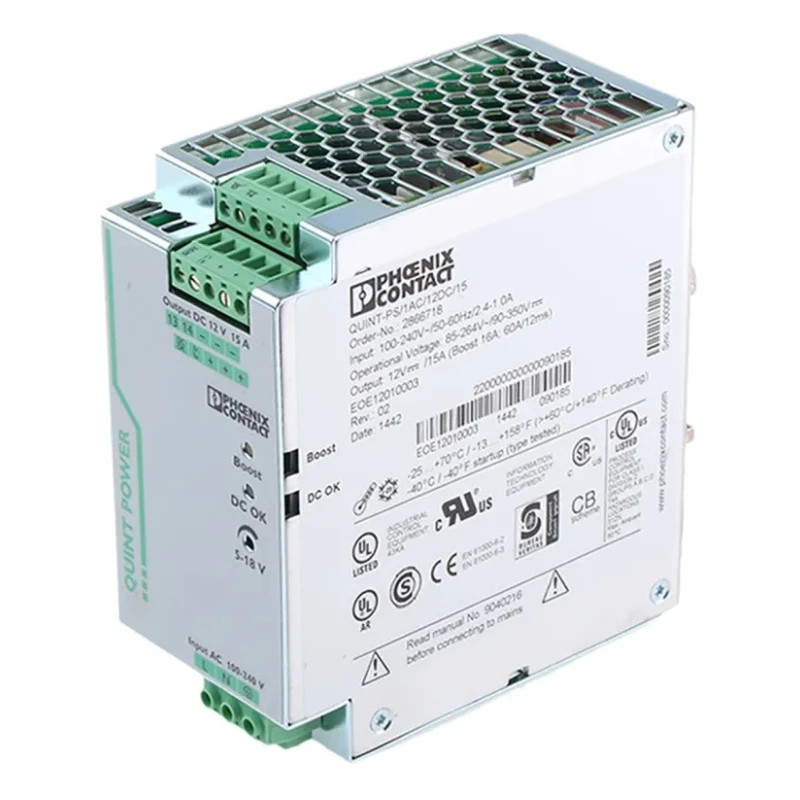

Phoenix Contact QUINT POWER Switch Mode DIN Rail Power Supply 180W, 264V AC Input, 18V DC Output, 15A Output Current 2866718
Specifications
| Country of Origin | Thailand |
|---|---|
| Brand | Phoenix Contact |
| Power | 180W |
| Efficiency | 89% |
| Height | 130mm |
| Model | 2866718 |
| Depth | 125mm |
| IP Rating | IP20 |
| Width | 60mm |
| Series | QUINT POWER |
| Output Current | 15A |
| Maximum Operating Temperature | 70°C |
| Sub Type | Switch Mode Power Supply |
| Minimum Operating Temperature | -25°C |
| Number of outputs | 1 |
| Maximum Input Voltage | 264V ac |
| Electrical Phase | 1 |
| Standards/Approvals | cULus Recognised |
| Maximum Output Voltage | 18V dc |
| Minimum Input Voltage | 85V ac |
Key Features
- Operates with input voltage range 85V AC to 264V AC for wide compatibility.
- High efficiency of 89% ensures energy savings and low heat generation.
- Robust design with IP20 rating for indoor use in control cabinets.
- Supports static power reserve for reliable starting of heavy loads up to 16A.
- Includes Selective Fuse Breaking technology for enhanced system protection.
- Stable operation from -25°C to 70°C for harsh industrial environments.
- Compact size of 125 x 60 x 130 mm suitable for DIN rail mounting.
- Allows parallel connection for redundancy and increased capacity.
Product Description
Phoenix Contact 2866718 QUINT POWER Switch Mode DIN Rail Power Supply offers efficient and reliable power delivery with a rating of 180W and 15A output current. Designed to convert AC input voltage between 85V and 264V AC to a stable 18V DC output, it is ideal for industrial control systems and automation.
The power supply features high efficiency of 89%, which minimizes energy loss and heat, enhancing system performance and durability. With an IP20 rating, it is protected against solid objects but suitable for indoor environments such as control cabinets.
Equipment benefits from the static power reserve feature, allowing the supply to deliver a temporary 16A startup current to power heavy loads reliably. The Selective Fuse Breaking technology safeguards connected devices by enabling rapid fault disconnection to protect both equipment and power supply.
The device operates within a temperature range of -25°C to 70°C, adapting to various industrial climates without compromising performance. Its compact dimensions of 125 mm depth, 60 mm width, and 130 mm height facilitate seamless DIN rail installation and efficient space use.
Parallel connectivity supports system redundancy and scalability, enhancing uptime and reliability in critical industrial processes. Recognized by CULus standards, it assures compliance with relevant safety and quality requirements.
Typical applications include automation systems, industrial control panels, machinery power supply, sensor powering, and process control systems in manufacturing, HVAC, water treatment, and laboratory environments.
Operates with wide input voltage range from 85V AC to 264V AC and 90V DC to 350V DC. Static power reserve enables heavy load starting with 16A capability. Selective Fuse Breaking protects against faults and enhances safety.
Compact build fits standard DIN rails in control cabinets. High efficiency reduces energy consumption and heat production. Wide operating temperature range from -25°C to +70°C. Supports parallel operation for redundancy and increased power capacity.
Approved with cULus recognition ensuring safety and reliability. Manufactured in Thailand with consistent quality control. Explore the full range of Phoenix Contact power supplies and DIN rail power solutions on EnvMart for reliable industrial applications.
Explore more products in our DIN Rail Power Supplies category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The output current of this model is 15A.
It operates with an input voltage range from 85V AC to 264V AC.
The maximum output voltage is 18V DC.
The dimensions are 125 mm in depth, 60 mm in width, and 130 mm in height.
The efficiency rating is 89%.
It operates within a temperature range of -25°C to 70°C.
Yes, it allows for parallel connection to enhance redundancy and capacity.
The IP rating is IP20, indicating protection against solid objects but not against water.
It includes Selective Fuse Breaking technology for enhanced system protection.
It is manufactured in Thailand.
Typical applications include automation systems, industrial control panels, and machinery power supply.
It is recognized by cULus standards, ensuring compliance with safety and quality requirements.
