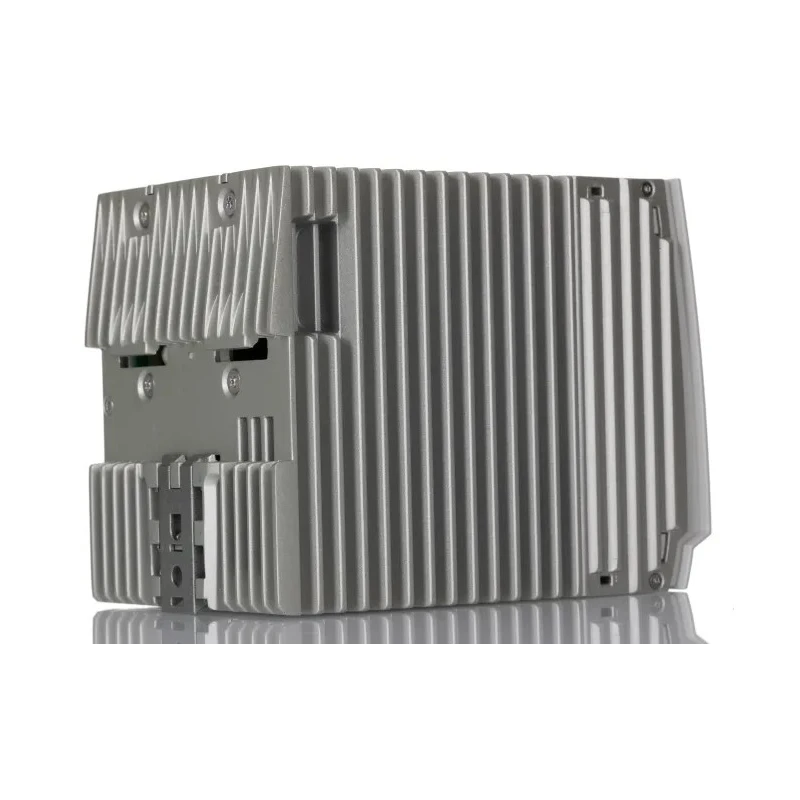

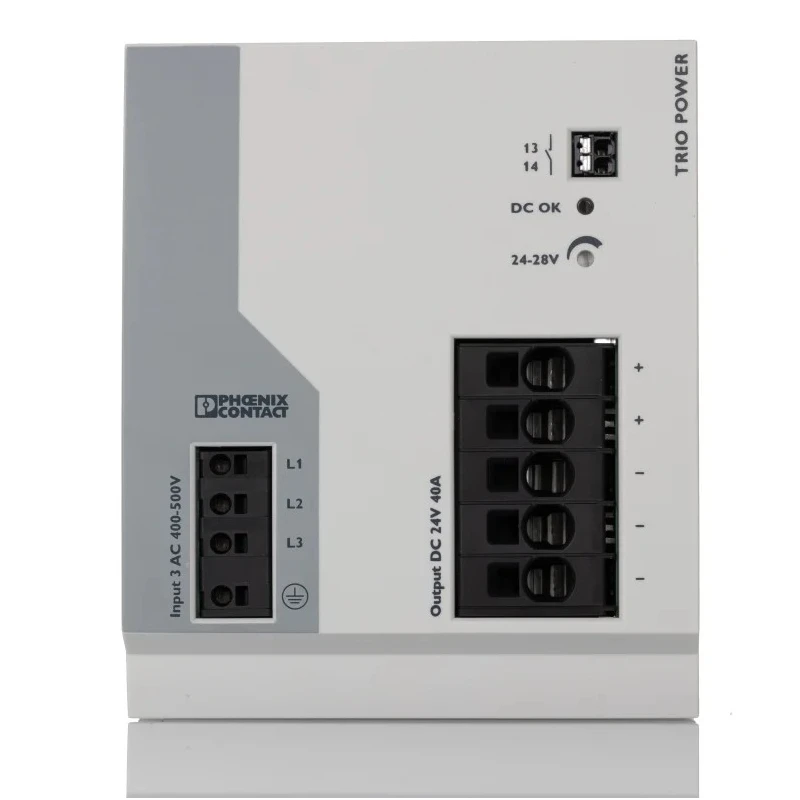

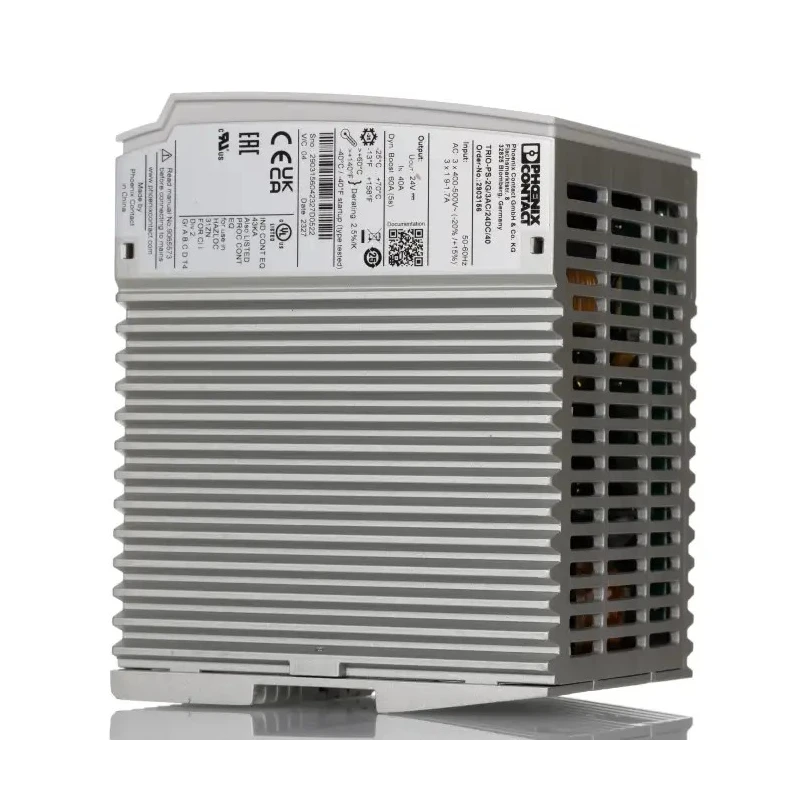

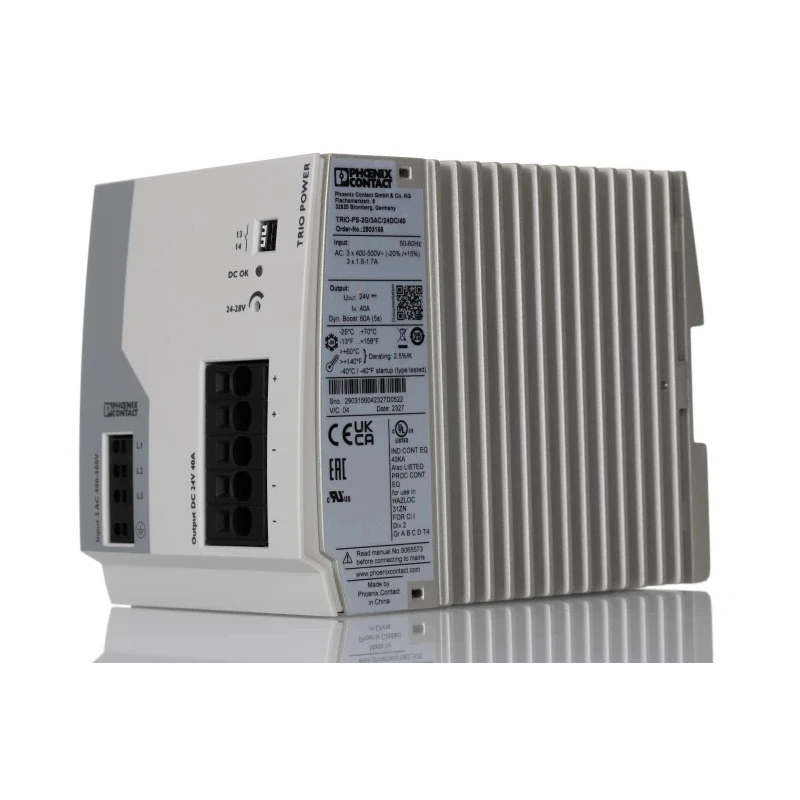

Phoenix Contact TRIO POWER Switched Mode DIN Rail Power Supply 575V AC Input 24V DC, 40A Output, 960W 2903156

Phoenix Contact 2903156 TRIO POWER Switched Mode DIN Rail Power Supply is an industrial-grade power solution delivering 960W of output power at 24V DC with a robust 40A output current for demanding machine building applications.

This power supply unit operates on a wide AC input voltage range of 320V to 575V three-phase AC power, ensuring compatibility with various industrial electrical infrastructures. It features a high efficiency rating of 93.3%, reducing energy consumption and heat dissipation, which enhances operational reliability and longevity.

Designed to withstand harsh industrial environments, it can reliably operate within a broad temperature range from -25°C up to 70°C, making it suitable for diverse installation locations with challenging ambient conditions. The device offers IP20 protection, providing safety against solid objects while designed for indoor industrial enclosures.

The unit also incorporates transient surge protection and innovative dynamic boost technology which allows temporary current increase up to 150% of the nominal rating, improving system stability when facing inrush currents or transient load changes.

Installation is simplified by tool-free fast connection technology, minimizing setup time and facilitating maintenance. It includes remote signal DC-OK output to enable external monitoring of power supply status, an important feature for industrial automation systems.

Compliance with internationally recognized standards such as cUL, cULus, EAC, and UL ensures safety, quality, and interoperability within industrial systems globally.

Its compact footprint with dimensions of 130mm height, 110mm width, and 160mm depth allows flexible integration within standard DIN rail mounting enclosures common in electrical cabinets.

This robust and reliable power supply is ideal for use in industrial machine building, automation equipment, and other manufacturing or process control applications requiring steady and resilient DC power.

Explore our extensive range of power supplies and electronic components for industrial and commercial needs at EnvMart. Powered by high efficiency 93.3% switched mode technology ensuring energy saving. Supports a wide input voltage range of 320V to 575V AC for three-phase electrical systems.

Operates reliably in harsh environments with temperature tolerance from -25°C to 70°C. Features tool-free fast connection technology for quick and easy installation. Includes transient surge protection and dynamic boost providing 150% nominal current for enhanced system availability.

Compact form factor with dimensions 130mm height, 110mm width, and 160mm depth. Compliance with multiple safety standards including cUL, cULus, EAC, and UL approvals. Equipped with remote DC-OK signal output for system status monitoring.

Designed for reliable power supply under demanding industrial conditions.
