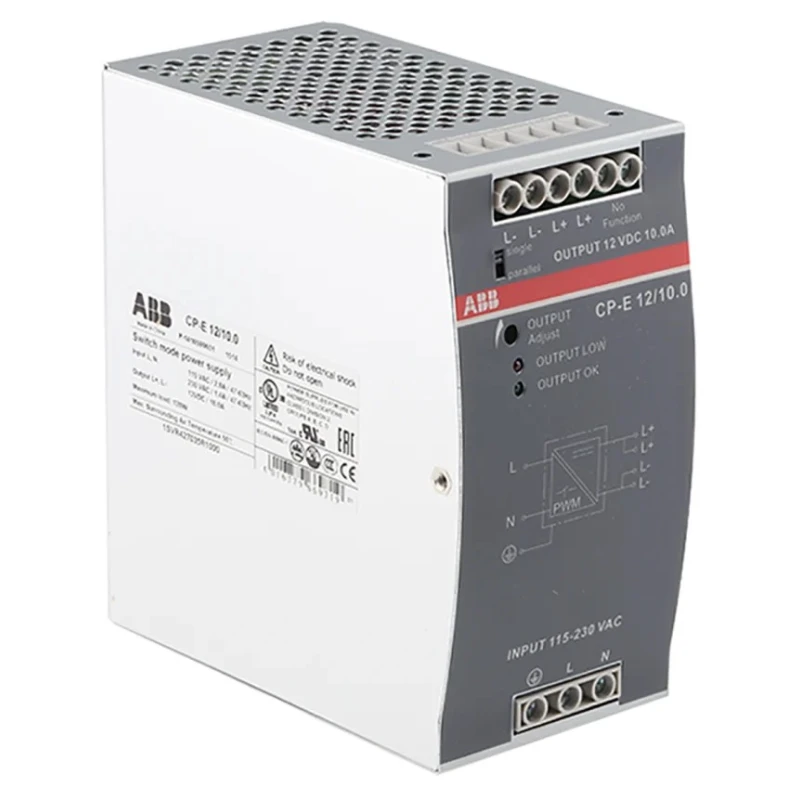

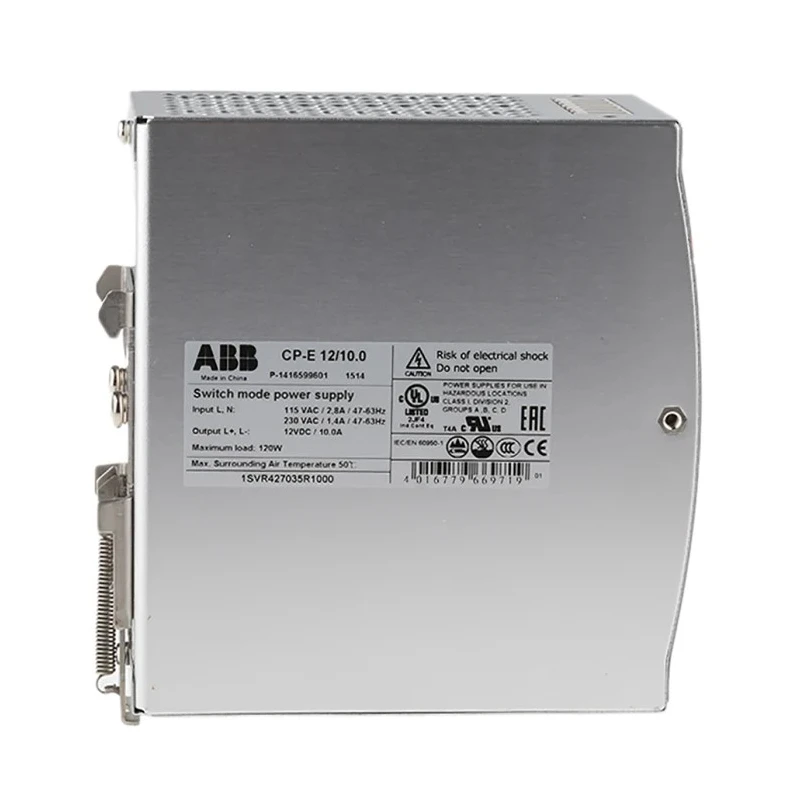

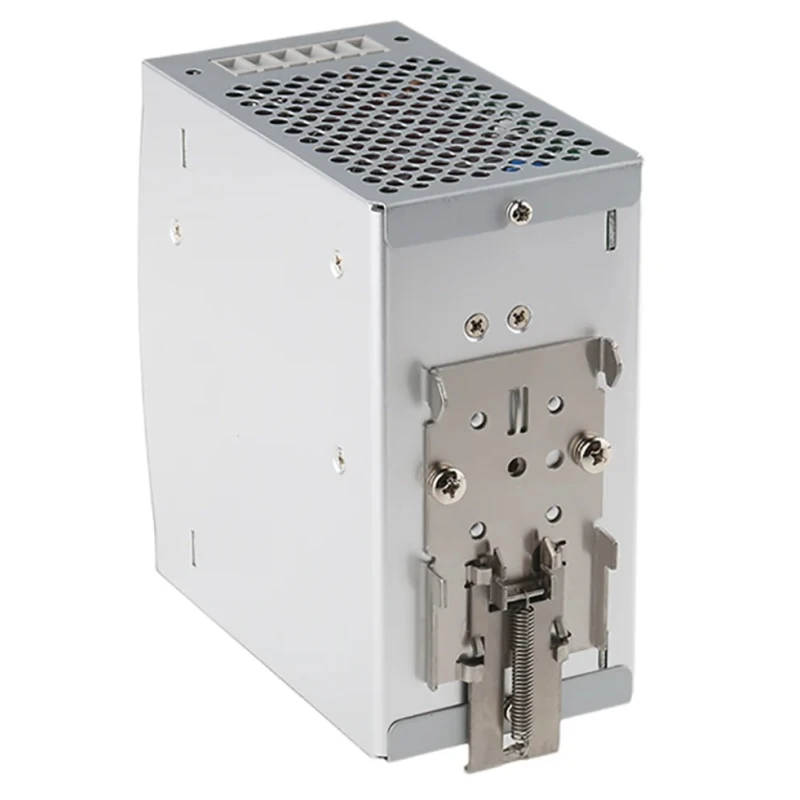

ABB CPE Switched Mode DIN Rail Power Supply 230V AC/DC Input 12V DC, 10 A Output, 120 W 1SVR427035R1000 CP-E 12/10.0

Free Delivery in India | Lowest Global Shipping Charges

ABB CPE Switched Mode DIN Rail Power Supply 230V AC/DC Input 12V DC, 10 A Output, 120 W 1SVR427035R1000 CP-E 12/10.0



Category DIN Rail Power Supplies Brand ABB Condition New

Specifications

Country of Origin	India
Brand	ABB
Power	120W
Efficiency	84%
Height	123.6mm
Model	1SVR427035R1000 CP-E 12/10.0
Depth	123.6mm
IP Rating	IP20
Width	63.2mm
Series	CPE
Output Current	10A
Maximum Operating Temperature	85°C
Sub Type	Switched Mode
Minimum Operating Temperature	-40°C
Number of outputs	1
Maximum Input Voltage	230V ac
Electrical Phase	1
Maximum Output Voltage	12V dc
Minimum Input Voltage	115V ac

Key Features

Switch mode power supply with IP20 protection rating.
Operates within a temperature range of -40°C to 85°C for versatile environmental use.
High efficiency of 84% ensures low power dissipation and less heat generation.
Compact dimensions of 63.2 mm width, 123.6 mm height, and 123.6 mm depth for easy DIN rail mounting.
Designed for single output applications with 1-phase electrical input.
Safety features include integrated input fuse and open-circuit, overload, short circuit stability.
Suitable for industrial and automation power supply needs with adjustable output voltages.
Supports wide input voltage range of 115 V AC to 230 V AC allowing global usage.

Product Description

ABB 1SVR427035R1000 CP-E 12/10.0 is a switched mode DIN rail power supply designed to convert 230V AC/DC input to a stable 12V DC output at 10 A, with an output power of 120 W. It is engineered for applications requiring reliable and efficient power delivery in industrial and automation environments.

The device features an IP20 protection rating and is built to operate in ambient temperatures from -40°C to 85°C, making it suitable for a variety of demanding installation conditions. Its compact footprint with dimensions of 63.2 mm width, 123.6 mm height, and 123.6 mm depth allows easy DIN rail mounting according to IEC/EN 60715 standards.

This power supply provides a wide input voltage tolerance between 115 V AC and 230 V AC and includes built-in features such as an integrated input fuse for protection. The switch mode design ensures high efficiency of 84%, resulting in low power and heat dissipation, facilitating operation without forced cooling.

Additional features include adjustable output voltages across the CP-E series range, open circuit, overload, and short circuit stability, and LEDs for status indication. The power supply is suitable for worldwide use including fluctuating mains environments and battery-powered plants due to its dual AC/DC input capability and at least 30 ms mains buffering.

Switch mode power supply with IP20 protection rating. Operates within a temperature range of -40°C to 85°C for versatile environmental use. High efficiency of 84% ensures low power dissipation and less heat generation. Compact dimensions of 63.2 mm width, 123.6 mm height, and 123.6 mm depth for easy DIN rail mounting.

Designed for single output applications with 1-phase electrical input. Safety features include integrated input fuse and open-circuit, overload, short circuit stability. Suitable for industrial and automation power supply needs with adjustable output voltages.

Supports wide input voltage range of 115 V AC to 230 V AC allowing global usage.

This power supply is ideal for integration within industrial machines, automation systems, and other electrical equipment requiring dependable low voltage DC power. It combines robust construction with reliable performance to meet rigorous industrial standards.
