PULS DIMENSION Q DIN Rail Switch Mode Power Supply 240V AC Input 28V DC 3.4A Output 82W QS3.241

Category DIN Rail Power Supplies Brand PULS Condition New

Specifications

Country of Origin China
Brand PULS
Power 82W
Height 124mm
Model QS3.241
Depth 102mm
IP Rating IP20
Width 32mm
Series DIMENSION Q
Output Current 3.4A
Maximum Operating Temperature 70°C
Sub Type Switch Mode Power Supply
Minimum Operating Temperature -25°C
Number of outputs 1
Maximum Input Voltage 240V ac
Electrical Phase 1
Maximum Output Voltage 28V dc
Minimum Input Voltage 100V ac

Key Features

  • Adjustable output voltage ranging from 24VDC to 28VDC for flexible operation.
  • Compact and lightweight design with 32mm width, 124mm height, and 102mm depth.
  • High efficiency up to 90% to minimize energy loss.
  • Equipped with diagnostic indicators including DC-OK green LED and overload red LED.
  • Operating temperature range from -25°C to 70°C for reliable use in varied environments.
  • Dry DC-OK relay contact for easy monitoring and control.
  • Quick-connect spring-clamp terminals for easy installation.
  • 150% peak load capability ensures high reliability during power surges.

Product Description

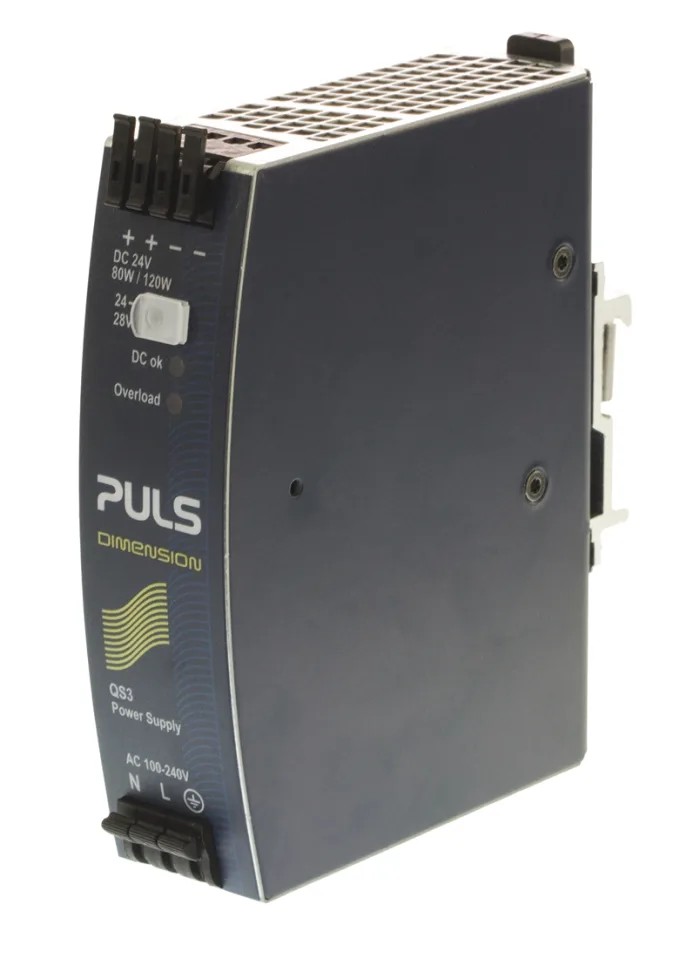

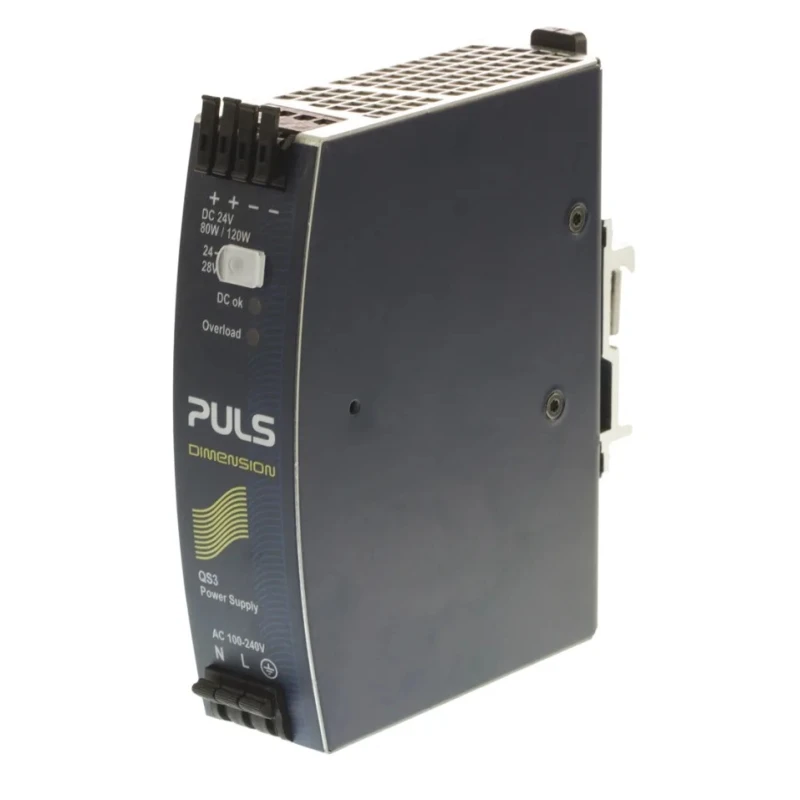

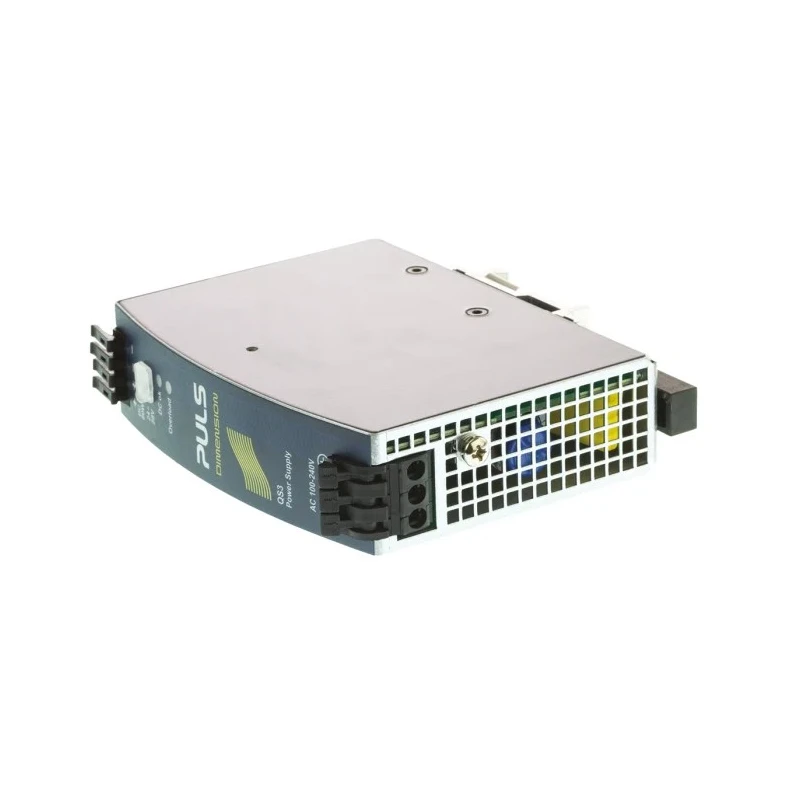

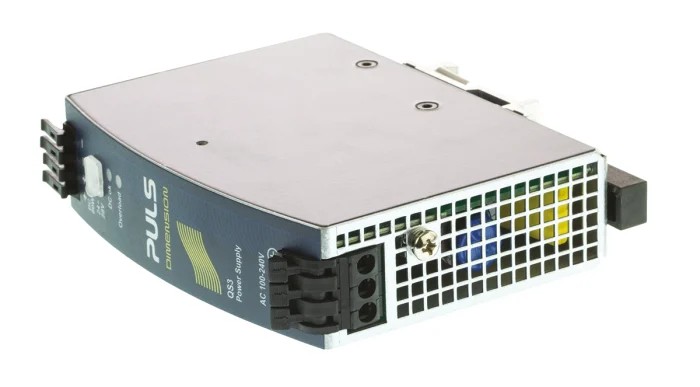

PULS QS3.241 DIN Rail Switch Mode Power Supply is a high-quality and reliable 1-phase power supply designed for industrial environments. It accepts an input voltage range from 100V AC to 240V AC with DC input allowed, delivering a regulated output voltage adjustable between 24V DC and 28V DC at 3.4A current and 82W power rating.

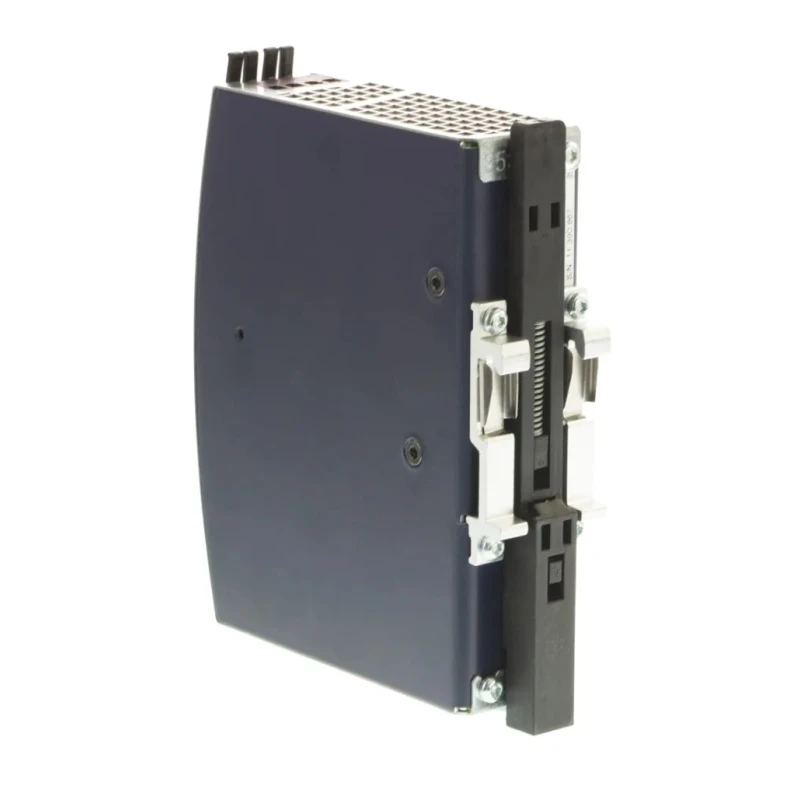

This compact power supply, measuring 32mm width, 124mm height, and 102mm depth, features a robust design suitable for mounting on standard DIN rails. It operates efficiently with power conversion efficiency up to 90%, reducing heat generation and energy consumption.

Diagnostics and safety are enhanced by the integrated dry DC-OK relay contact, green LED indicator for operational status, and red LED for overload condition. The device supports a wide operating temperature from -25°C to 70°C, making it suitable for harsh industrial conditions.

The unit's 150% peak load capability provides resilience against transient power surges, while the IP20 rating ensures protection from solid object ingress. Installation is simplified by the quick-connect spring-clamp terminals, facilitating fast and secure wiring.

Adjustable output voltage from 24VDC to 28VDC. Compact dimensions (32mm x 124mm x 102mm) suit space-constrained applications. Efficiency of up to 90% to reduce operational costs. Clear LED status indicators and relay outputs for monitoring.

Wide temperature operation from -25°C up to +70°C. 150% peak load capability for surge handling. IP20 enclosure rating for protection. Suitable for industrial control, automation, communication, and instrumentation applications.

This power supply is manufactured in China under the PULS DIMENSION Q series and designed to meet demanding industrial standards despite the lack of certifications in this model. It offers a reliable power solution for automation and control industries.

Explore additional products in the DIN Rail Power Supplies category to find compatible accessories and alternative specifications.
